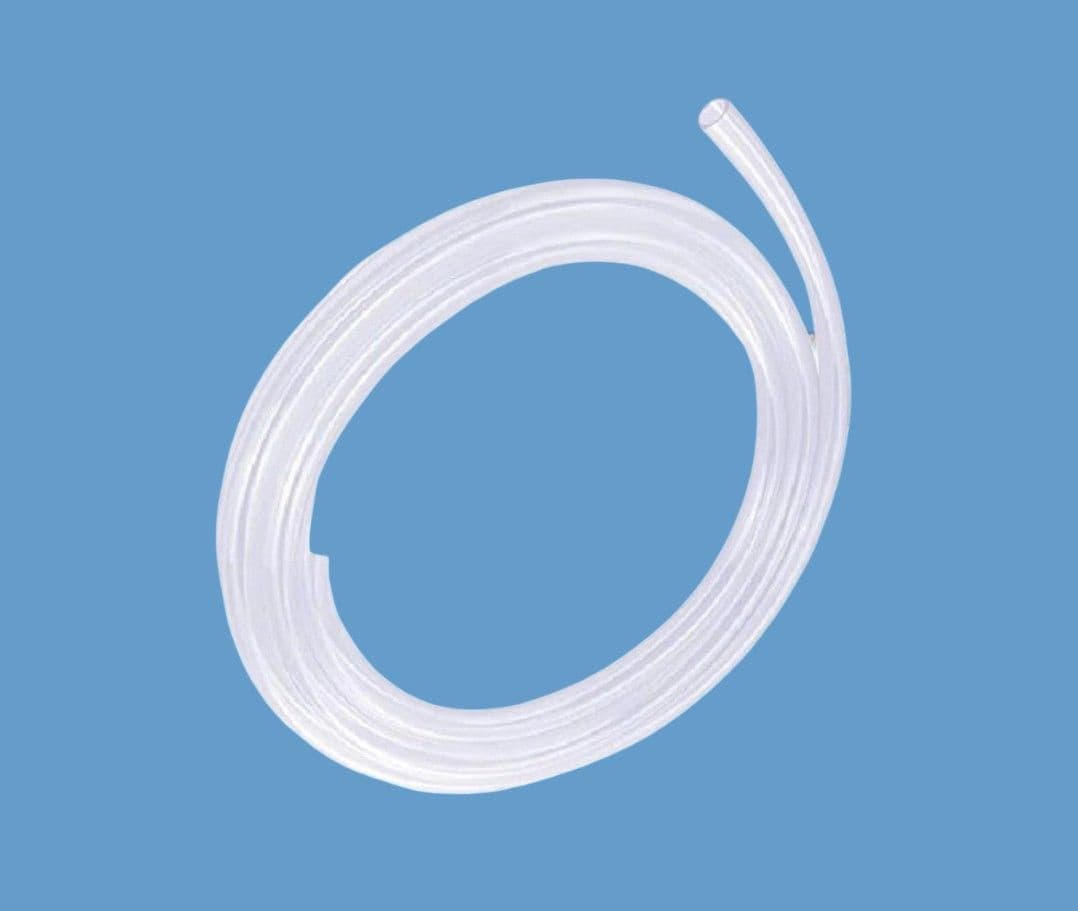

Introducing this industrial-grade high pressure feed tubing, engineered to meet the highest standards of quality and performance. Manufactured from flexible, white polyurethane material, this 1/4" OD tubing uses a 1/8" ID for optimal fluid flow. Designed for a safe feed from pressure pot or cartridge reservoir to any dispense valve, this tubing is suitable for a variety of fluids and solvents.

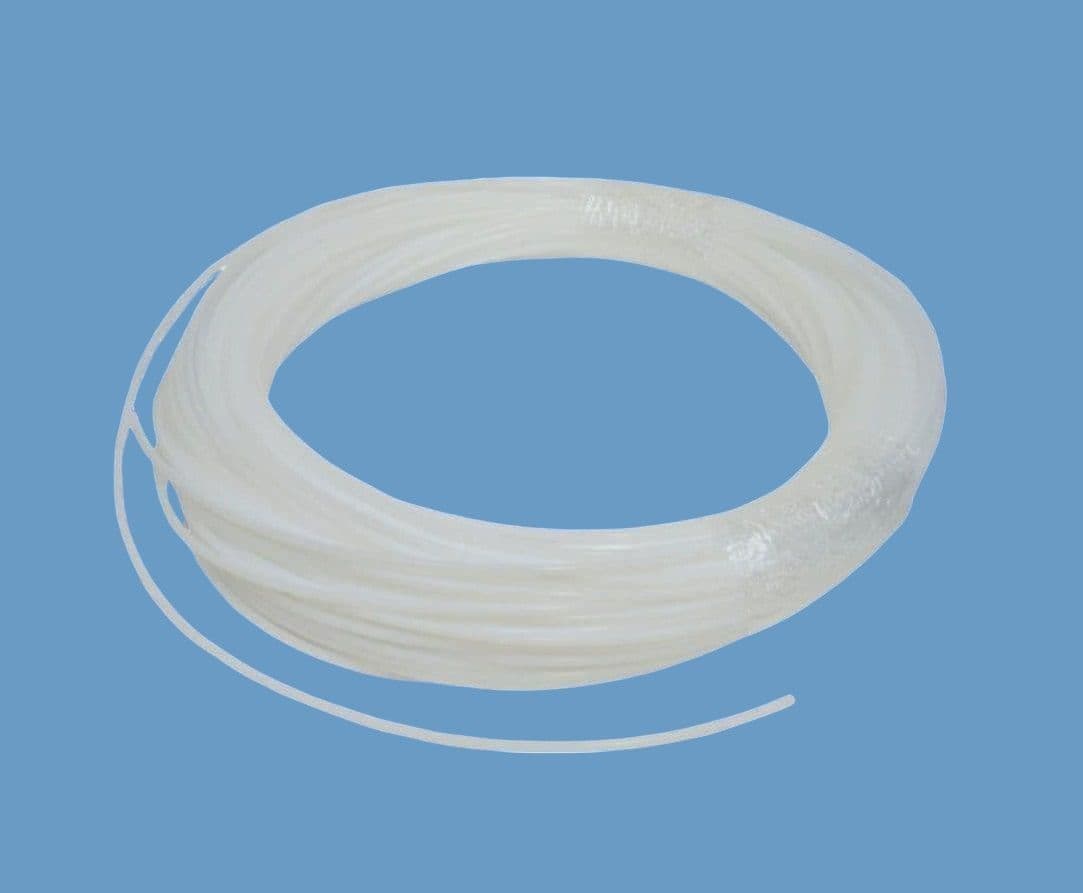

Available in convenient 10 ft. lengths, the High Pressure Feed Tubing can be supplied uncut up to a maximum coil length of 100 ft. Feed tubing is produced using compounds that adhere to NSF Standards 51 and 61, and is compliant with FDA 21 CFR 175.105 regulations.

Compatible with 1/8" ID barb fittings or 1/4" compression fittings, feed tube ensures a secure and leak-free connections between syringes, cartridges, dispense valves, and pressure pots. Versatile and reliable, this tubing can be used with a wide range of fluids, including liquids, solvents, adhesives, inks, and gels. Improve your dispensing process with High Pressure Feed Tubing.

Specification
Part ID: TSD1099-11
Maximum Pressure: 100 PSI
Material: Polyurethane
Colour: White
OD: 1/4" (6.35mm)
ID: 1/8" (3.175mm)
Details: Silicone Free, Industrial Grade
Commodity Code: 39269097
Origin: USA
Brand: Techcon
