Vacuum Pickup Pencil 580046

580046 Vacuum Pickup Pencil for Model VPP50 Adhesive Dispensing Ltd

Product Code: 580046

Vacuum pencil tool for use with vacuum pickup machines. With hole. Includes rubber cups.

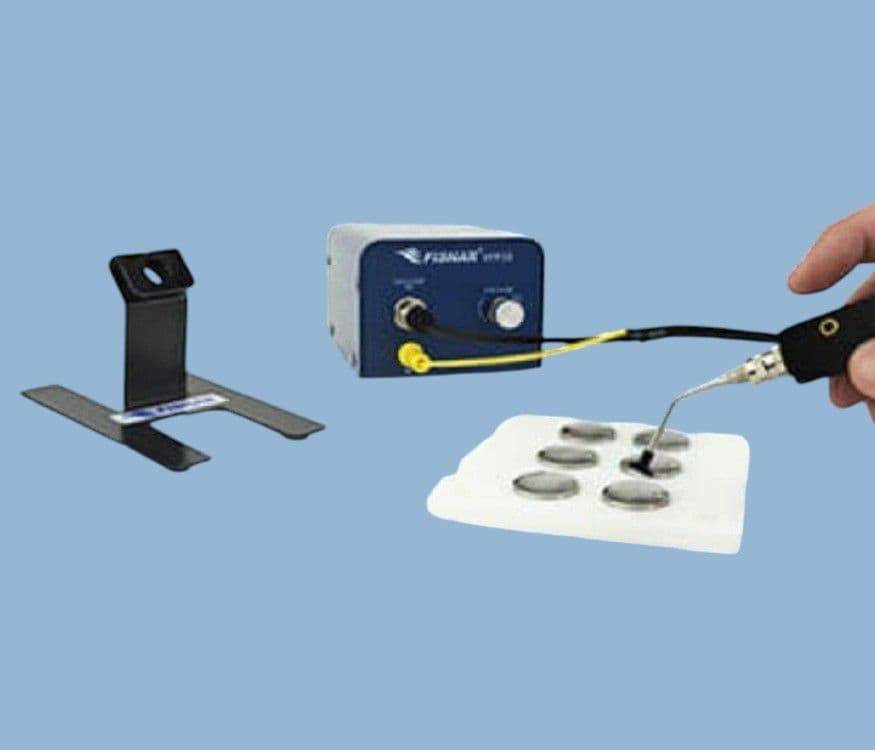

Replacement vacuum pencil tool for use with the VPP50 vacuum pick-up system. Other photos shows the pencil tool along with the main unit VPP50 (not supplied) or other similar vacuum units. Vacuum Pick-Up Pencil with hole. 580046 vacuum pencil contains a small hole that creates a vacuum.

Commodity Code: 90289090
Brand: Fisnar
Pack Size: 1 Kit

Parts (*included with Pencils)
560047 0.140" (3.5mm) dia. pad
560048 0.200" (5.1mm) dia. pad
560049 0.250" (6.4mm) dia. pad
560050 0.320" (8.1mm) dia. pad
560051 0.400" (10.2mm) dia. pad
560052 vacuum tip #14 0.063" (1.60mm) dia.
560053 vacuum tip #18 0.033" (0.84mm) dia.
560054 vacuum tip #21 0.020" (0.51mm) dia.

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

Price: £85.00 Exc VAT
