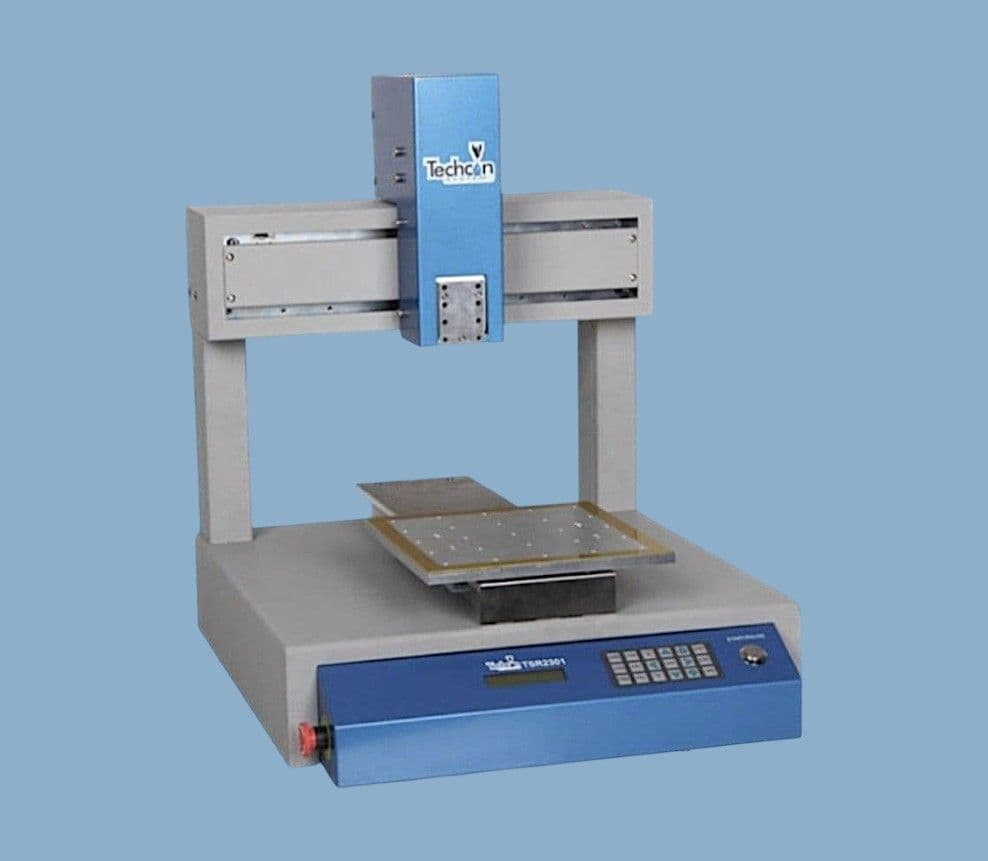

TSR2401 Robot Dispenser System 400mm

Product Code: TSR2401

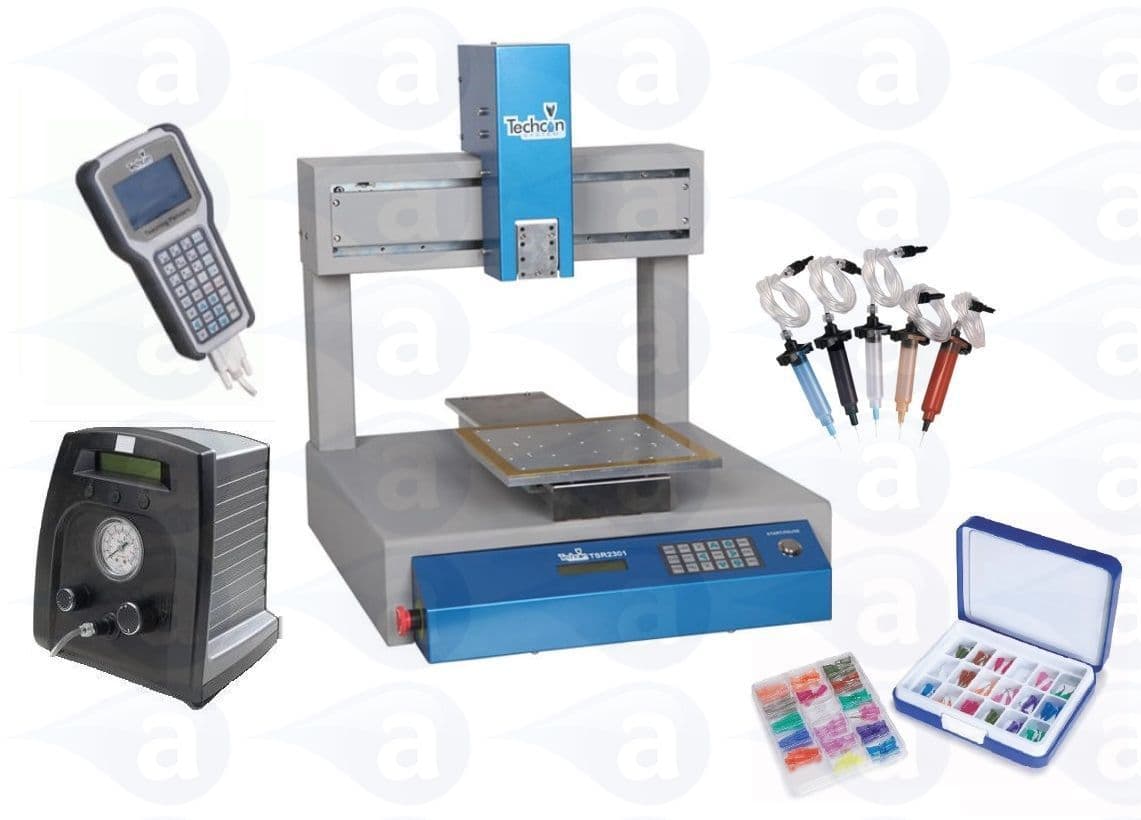

3 axis robot 400mm x 400mm x 100mm. Teach pendant, dispenser, stop button & I/O cable.

* Please note - the manufacturer has upgraded this model to the TSR2402. Bench-top dispensing robots are easy to program, simple to operate and compatible with all valve types and controllers.

Designed and configured specifically for fluid dispensing applications, the robots provide total control over fluid placement, from beads, arcs and circles to repeated timed dots. Programming is simple via a simple teach pendant.

From a general assembly manufacturer looking to automate an existing dispensing application to an engineer designing a production process from scratch, dispensing robots offers unsurpassed value in automated precision fluid dispensing. The TSR2401 has a working area of 400mm X 400mm x 100mm. This robot includes a digital dispenser and I/O cable.

Key Features and Benefits:

    Easy to program and simple to operate
    Programmable interface via teach pendant
    Fast, increase productivity
    Compatible with all syringes, valves and Jet dispensing systems.
    Suitable for wide range of fluid dispensing applications
    Rugged and reliable construction
    Small footprint

Please note: no valve included with the dispensing robot.

Price: £10,934.00 Exc VAT
