Bench-Top Dispensing Robot
TSR Series bench-top dispensing robots are easy to program, simple to operate, and compatible with all valve types and controllers. These versatile dispensing platforms deliver consistent, high performance dispensing results, at an affordable price.
Designed and configured specifically for fluid dispensing applications, Techcon robots provide total control over fluid placement, from beads, arcs, and circles to repeated timed dots. Programming is simple via teach pendant. From a general assembly manufacturer looking to automate an existing dispensing application, to an engineer designing a production process from scratch, TSR dispensing robots offer unsurpassed value in automated precision fluid dispensing.

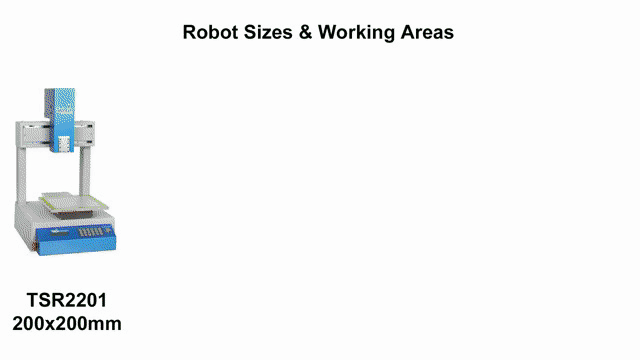

The bench-top dispensing robot series are available in 3 platforms:
TSR2202(E): 200 mm X 200 mm working area
TSR2302(E): 300 mm X 300 mm working area
TSR2402(E): 400 mm X 400 mm working area
Key Features & Benefits
• Easy to program and simple to operate
• Programmable interface via teach pendant (TSR-TPENDANT-2)
• Fast - increase productivity
• Compatible with all syringes, valves, and jet dispensing systems
• Suitable for a wide range of fluid dispensing applications
• Rugged and reliable construction
Typical Applications
• Solder paste dispensing
• Form-in-place gasketing
• Filling
• Potting
• Encapsulation
• Bonding
• Coating
Part Code: TSR2302(E)
Input Voltage: 110 VAC 50/60 HZ
Input Voltage: (E version) 220 V AC 50/60 HZ
Power Consumption: 200 W
Motor: 2-phase stepper
Drive Mechanism: Belt
Number of Controllable Axes: 3-Axis
Moving Range: X axis 300 mm. Y axis 300 mm. Z axis 100 mm
Speed Range: X/Y axis 0.1～800 mm/sec. Z axis 0.1～300 mm/sec
Repeatability Accuracy X/Y/Z axis +/-0.01 mm
Resolution X/Y/Z axis 0.01 mm
Loading Weight: Tool 8 kg. Head 5 kg
Storage for Processing Files: Max 255 files, Max 60000 points
Processing Files:P Max 128 files
Working Ambient Temperature: 0～40 ℃
Relative Humidity: 20％～90％ (no condensation)
Dimensions (H x W x D): 653 x 484 x 552 mm
Unit Weight: 43 kg
