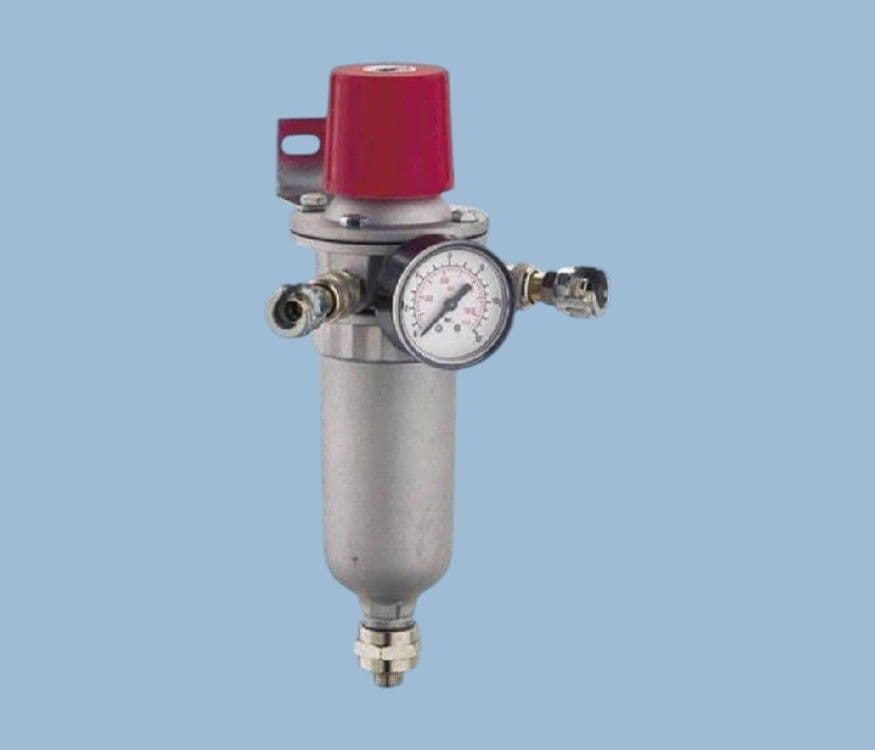

TSD800-6FR Compressed Air Filter Regulator

Name: TSD800-6FR Compressed Air Filter Regulator
Brand: Adhesive Dispensing Ltd
Price: 34.80 GBP
Availability: InStock

TSD800-6FR Air Filter Regulator Adhesive Dispensing Ltd

TSD800-6FR Compressed Air Filter Regulator

Product Code: TSD800-6FR

Air filter with regulator/ gauge to eliminate moisture and particles into pneumatic dispensers.

High quality 5 micron air filter to eliminate moisture in the air supply to dispensers, valves, pressure pots and cartridges. 1/4" BSP air inlet to 1/4" BSP swivel tap threads output. Flow rate up to 42 scfm.

Liquids coalesce from the filter cartridge as rapidly as they enter the filter. Filter removes liquids for extended periods without loss of efficiency or flow capacity. Aluminium body filter with wall mount bracket. Recommended for use with dispensers if using a moisture sensitive adhesive.

Part ID: TSD800-6FR
Thread: 1/4" BSP in and out
Flow Rate: 42 scfm
Bowl Material: Nylon
Air Pressure: 0-100 PSI
Warranty: 1 Year
Commodity Code: 90289090
Brand: Adhesive Dispensing Ltd

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

Price: £29.00 Exc VAT
