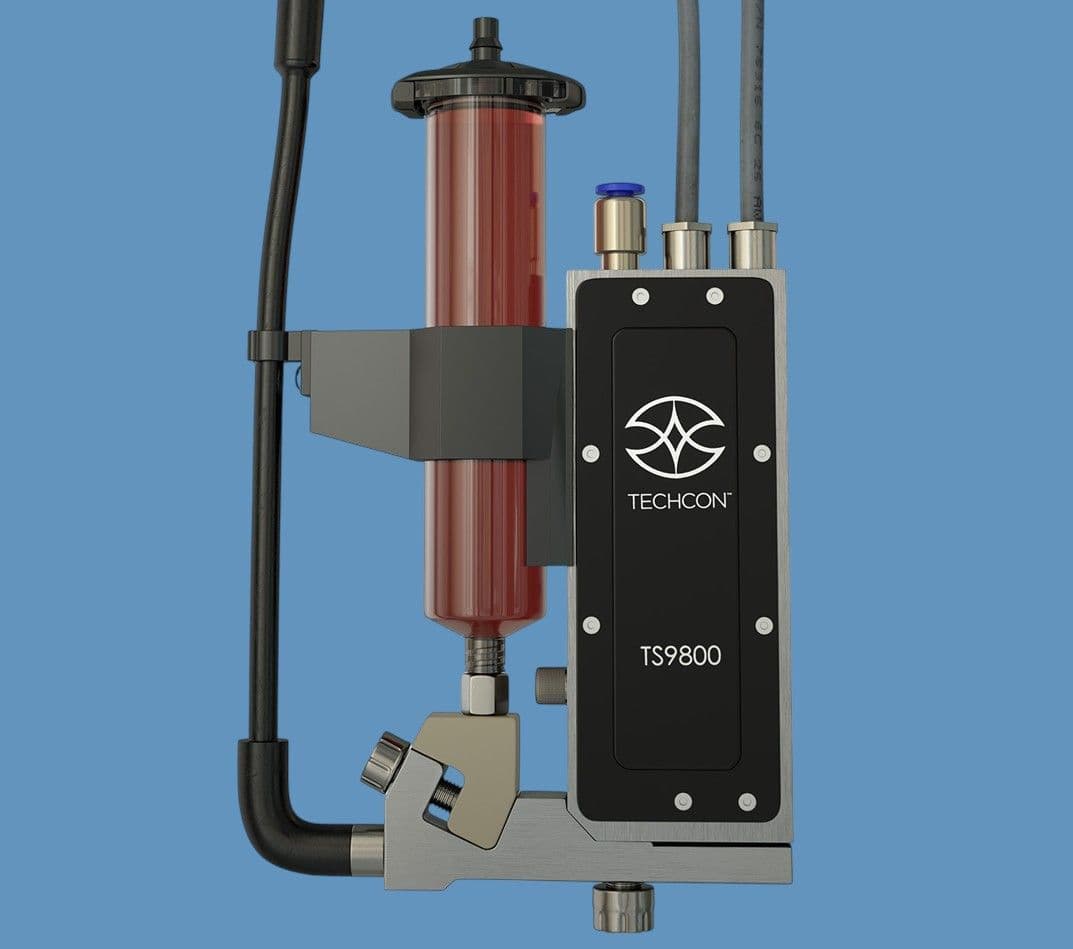

The new TS9800 Series Jet Valve delivers ultra-fast and high-precision dispensing results for a wide range of adhesives and viscosities. The high-speed piezo actuator enables the valve to dispense as fast as 1500 Hz. continuously, with up to 2000 Hz maximum burst, and produce micro shot as small as 0.5 nL.

TS9800 Series Jet Valve's compact size and modular design aid integration into robotic systems. The valve features fully adjustable parameter settings, allowing the operator to change the jetting properties for different fluid types and optimize the process for repeatable dispensing.

Every component of the valve was designed to the highest tolerances and manufactured to the strictest degree of precision, ensuring world-class accuracy and repeatability in drop-to-drop dispensing volume. Use with TS980 smart jet valve controller.

Specifications
Size (inches): .63 x 2.7 x 4.9
Size (mm): 16 x 69.3 x 124.8
Weight: 258 g
Minimum Shot Size: 0.5 nL
Max Fluid Pressure: 6.9 bar
Nozzle Orifice Diameter Range: 0.05 mm to 0.40 mm
Max Dispensing Frequency:
Up to 1500Hz Continuous, 2000Hz Bursts
Parameter Sets Memory: 50 sets internally, unlimited externally
Standard Interface: DB15, Ethernet, USB
Operating Temperature: 10ºC to 50ºC
Power Connection:
110/240 VAC; 50/60 Hz
Wetted Part: 304SS, Carbide, EPDM, TEFLON®
Certification: TUV, KC PSE, NRTL, CE

Features and Benefits
Fast dispense frequency, up to 1500 Hz continuous, with up to 2000 Hz maximum burst for higher throughput
Micro shot size as small as 0.5 nL for small component applications
Capable of jetting low to high viscosity fluid
Localized fluid housing heater for better viscosity stabilization and dispensing (optional)
Touch screen user-friendly interface for easy setup
Parameters can be adjusted remotely

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
