TS924 Pneumatic Footvalve Non-Timed Dispenser no vacuum

TS924 Pneumatic Footvalve Non-Timed Dispenser no vacuum
Product Code: TS924

Floor Mounted Air-Powered Non-Timed Dispenser no vacuum suckback. For beads only.

Floor mounted pneumatic adhesive and paste syringe dispenser. With an adjustable 0-100 psi regulator. Three way air valve for quick shut-off prevents fluid oozing when pedal released. Operator controls deposit output. Press the pedal for flow, lift off to stop.

Suited to controlled dispensing of most medium to high viscosity pastes and fluids, sealants, RTV, grease, gels, epoxies, mastics, sealants and potting compounds. Supplied with a syringe adapter assembly with 6ft long air hose, barrels, pistons and needle tips. Only our dispensers come with a choice of barrel size kits and precision tips supplied with the dispenser to ensure setup can be quick. Please select barrel size required below.

As this system is fully pneumatic, it is suitable for use in hazardous and explosive environments. Supplied with an airline hose. Also available is the TS924 with vacuum suck-back feature (Model TS924V) which helps reduce the effect of drips with lower viscosity liquids.


Timer: None
Output Pressure: Up to 100 psi
Input Pressure: Up to 100 psi

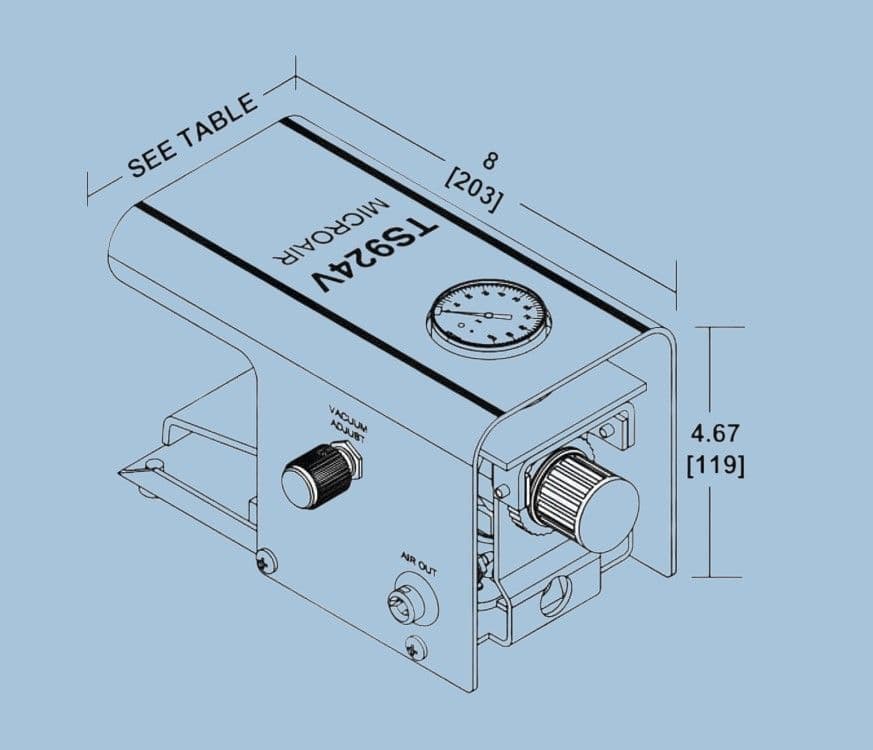

Size: 200 x 127 x 127 mm
Weight: 1.82kg (4lb)
Input Voltage: None (pneumatic only)
Warranty: 1 Year
Cycle Rate: None (manual only)
Timing Tolerances: n/a Meets or Exceeds: CE
Manufacturer: TSI


Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.


Price: £298.63   Exc VAT
  • Product Brand:TSI
  • MPN: TS924Lead Time: Usually Ships 24-72 HoursBoxed Weight: 2.5kg
