Bench top dispensing systems for the controlled application of liquids and pastes. Digital display with adjustable air regulator and an adjustable timer. Used to control dispensing valves either by footswitch or via I/O port.

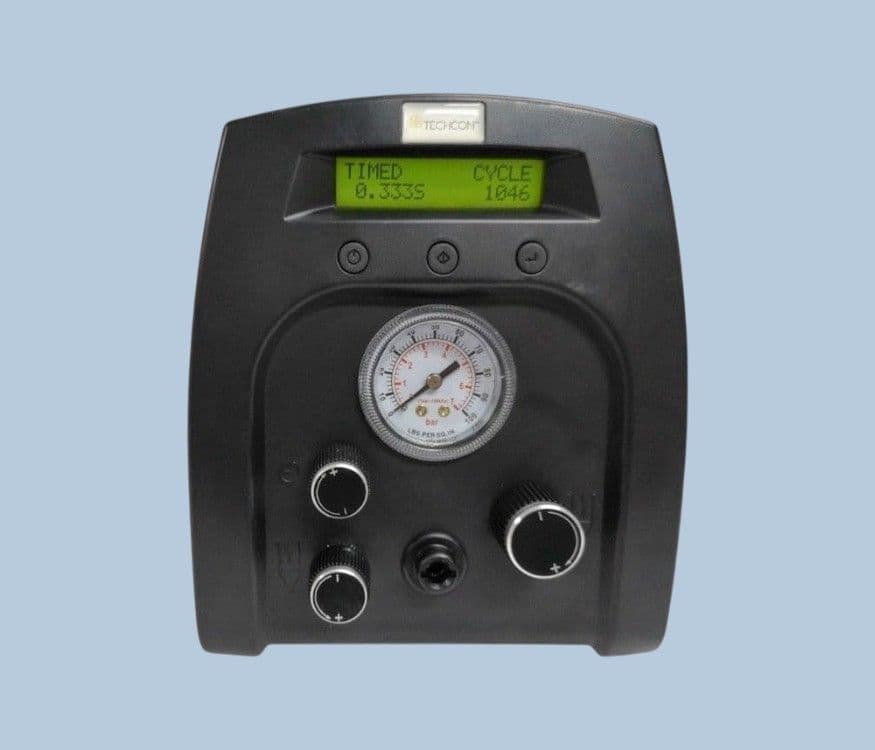

User friendly fluid dispensing systems features 0-100 psi adjustable air regulator, digital timer with rotary control time knob for easy setup. Packaged ready to use with a universal power supply, foot switch, air hose, sample tips. Features a small footprint and is lightweight. Cycle rate up to 600 times/ minute. 0.020 to 60 second adjustable timer with +/- 0.001% tolerances. 100-240 VAC power. CE approved with 12 month warranty.

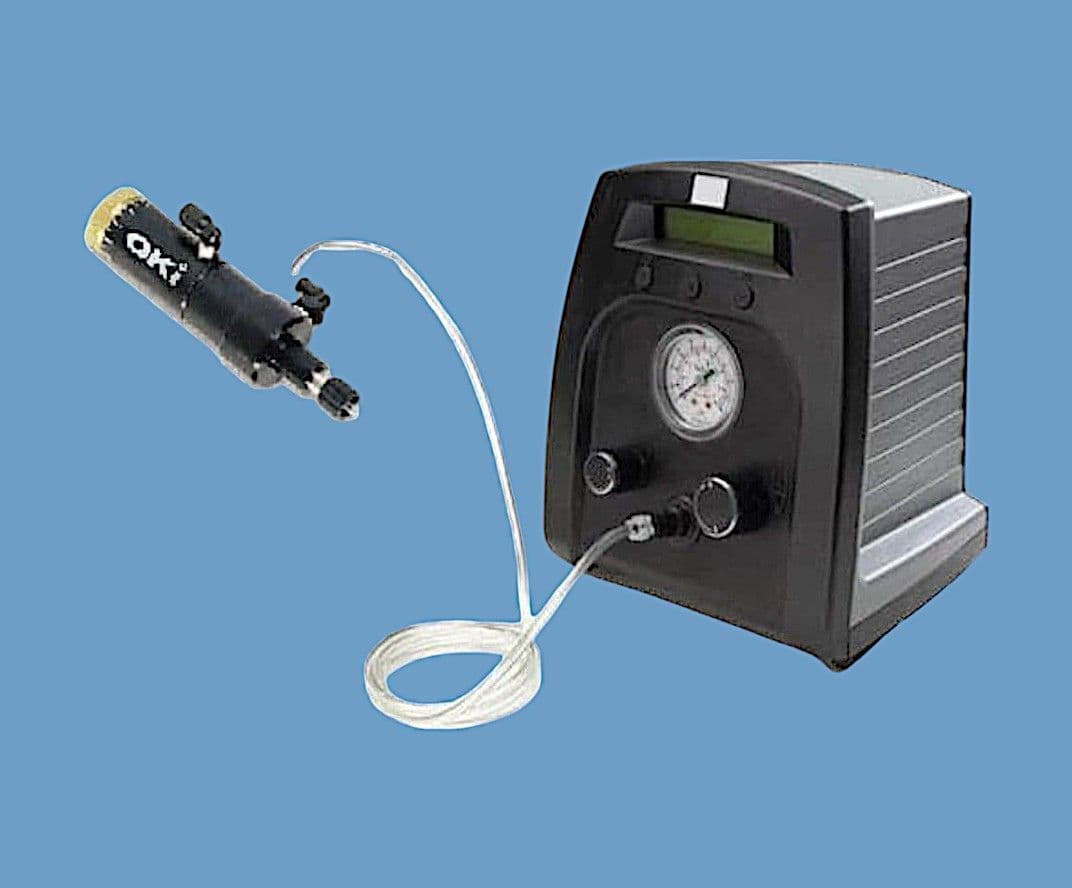

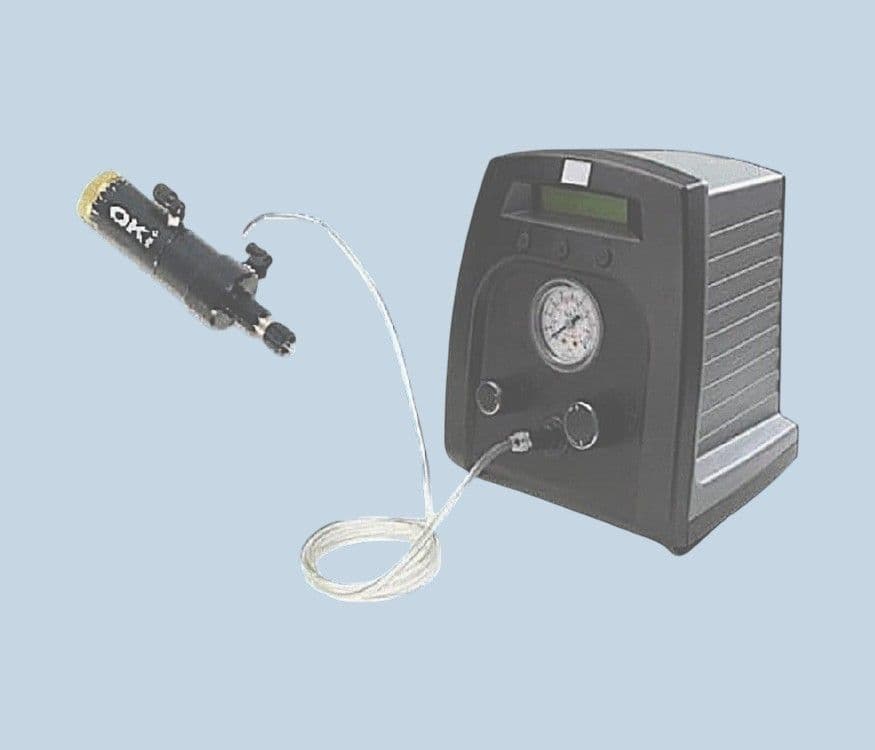

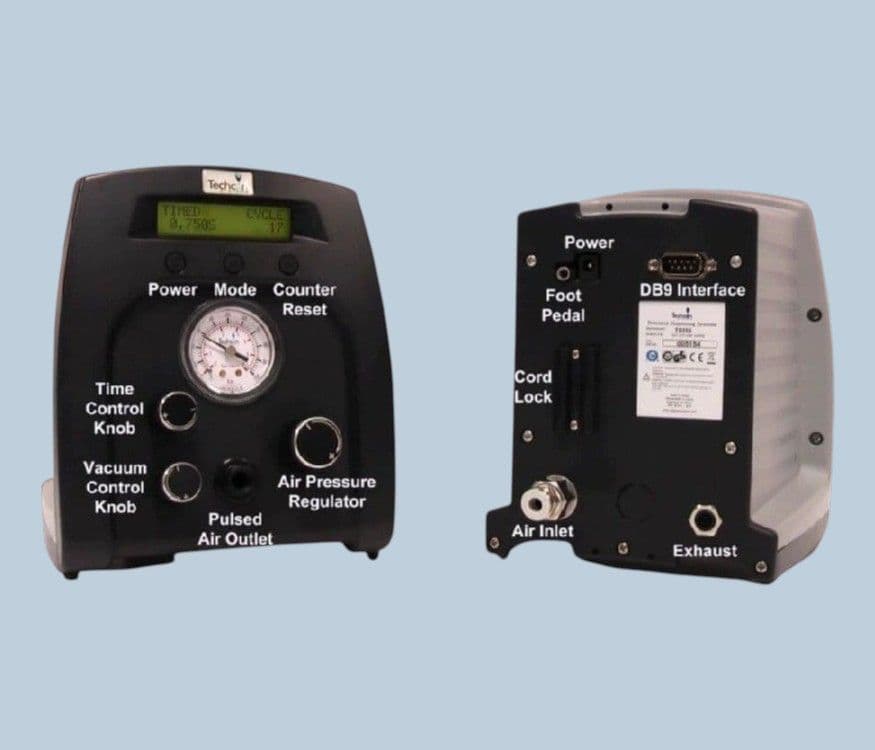

Can be used as digital controller for metering valves TS1212, TS5420, TS5440, TS5620, TS5621, TS5622, TS5322 and TS941. Features a rear I/O connection to remote source or PLC control as well as foot switch.
Dispensers require clean and dry compressed air from most small compressors, a mains factory air supply or nitrogen. We recommend the use of a 5 micron filter on the supply air into the dispenser. This will reduce oil, moisture and particles from the air supply. When dispensing very watery liquids or cyanoacrylates, it is recommended to use a filter trap as a safeguard against adhesive or liquid from drawing back into the dispenser. This connects in the air line between the dispenser and the syringe and is available as an option.
Technical Specifications
Timer: 0.02 to 60 seconds
Output Pressure: Up to 100 psi (or 0-15 psi)
Input Pressure: 70-100 psi
Size: 152 x 165 x 178mm
Weight: 1.2kg (2.6lb)
Input Voltage: 100-240 V AC
Warranty: 1 Year
Cycle Rate: Up to 600 cycles/minute
Timing Tolerances: +/- 0.001%
Meets or Exceeds: CE, TUV-GS, NRTL
