Product Code: TS2210-1201

Manual non-timed dispensing system with 10 Liter pressure pot. Select from 1-4 users.

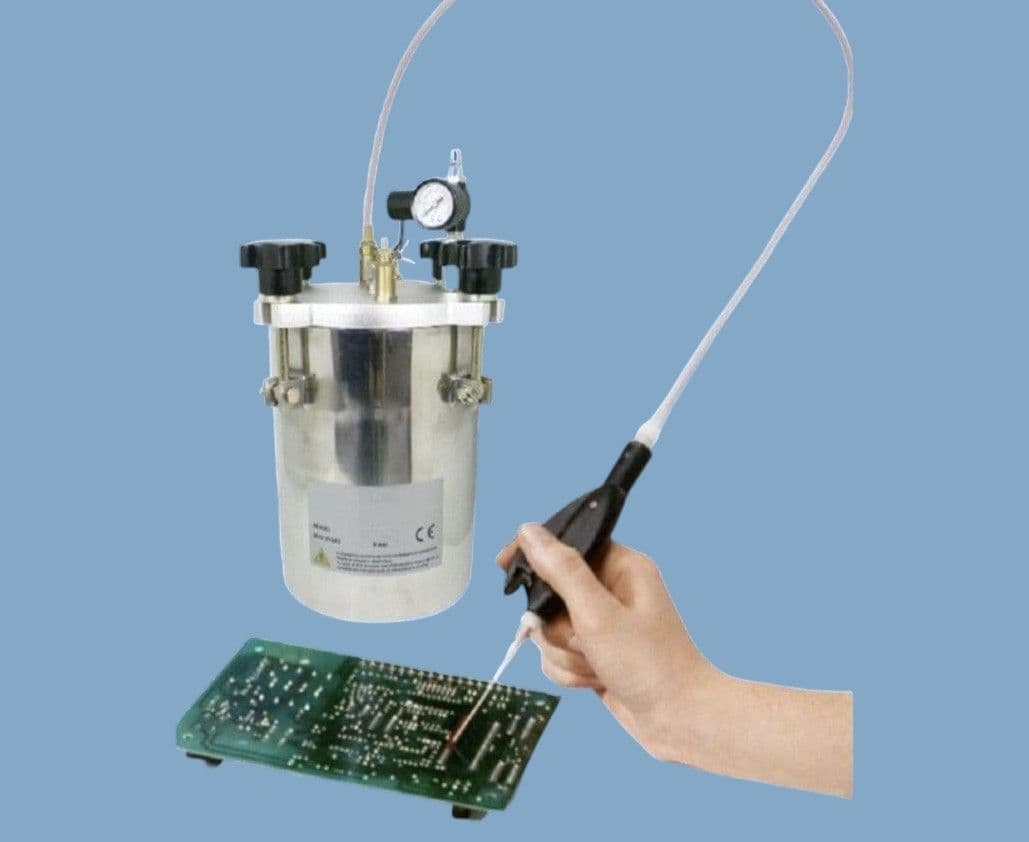

Adhesive dispenser designed to accept bottles, cans, liners or rubs up to 10 Liter size. There is no pouring needed (ie: you can drop your bottle of glue right into the dip-tube tank). Very little clean up is involved with this system and you do not smell the strong fumes of the glue as this is a contained system. Large tank allows liners, bottles, tubs & tins to be placed inside. Top ported flow of liquid out through the tank lid..

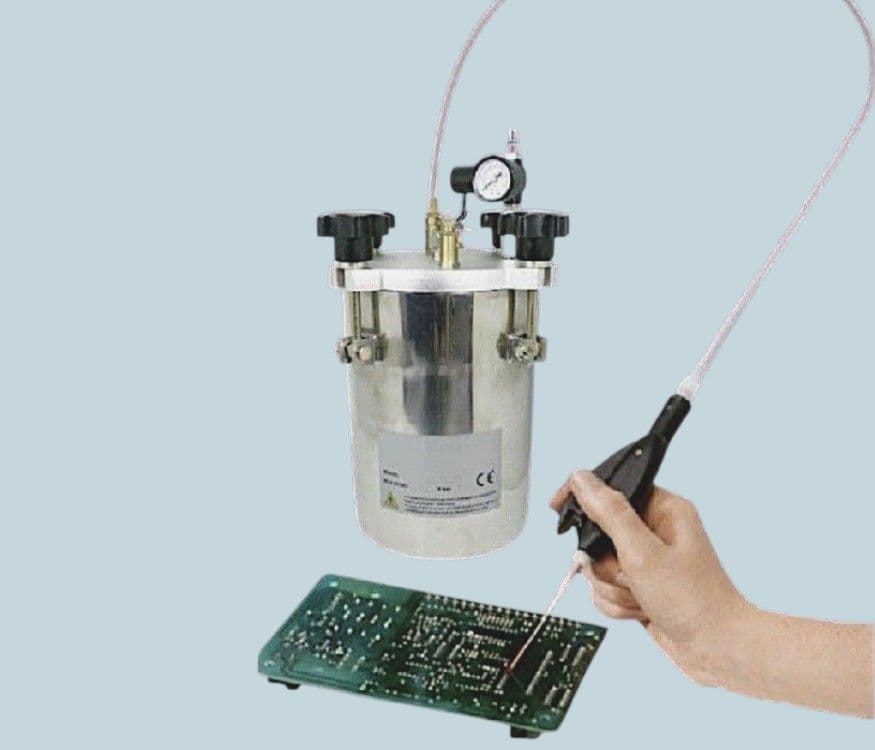

Select system for a single user, two users, three users and four users. This will be a single pressure pot which will feed to each operator via a liquid manifold.

The valve is designed to dispense thin and medium cyanoacrylates, UV cure adhesives, primers, inks, solvents,  with controlled deposits of glue, with no dripping. The system has two ways to control the deposit: - needle tip size and tank pressure. The pressure on the tank can be adjusted and there is a 0-75 psi regulator gauge.

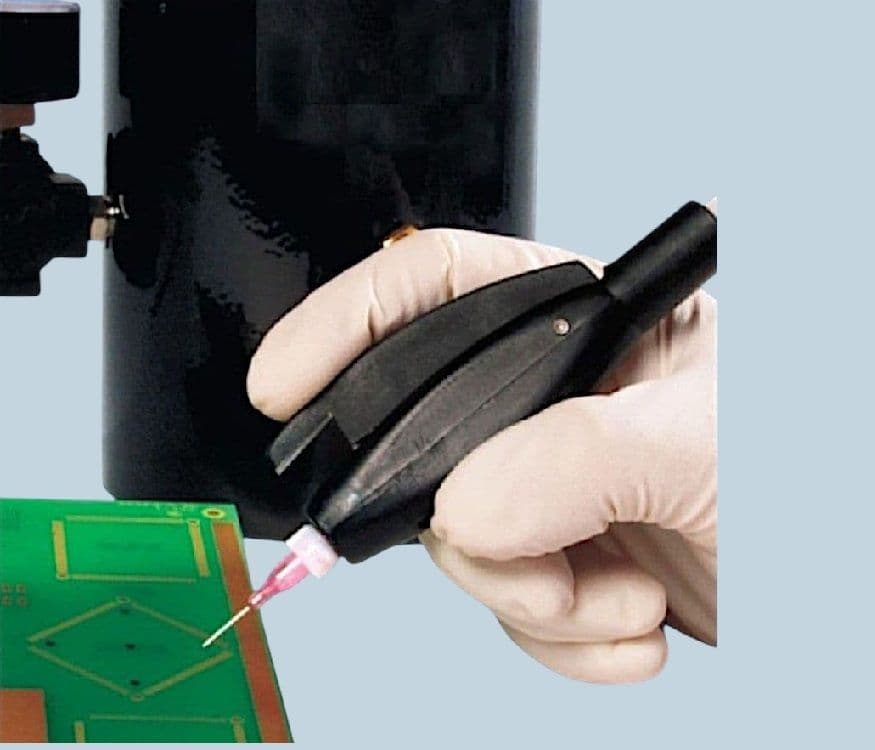

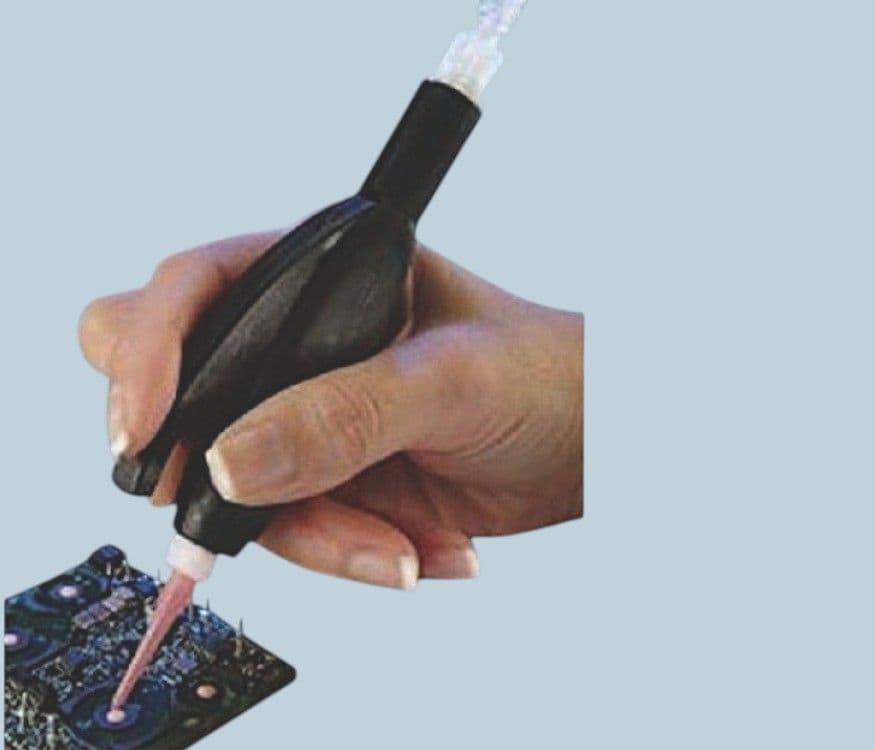

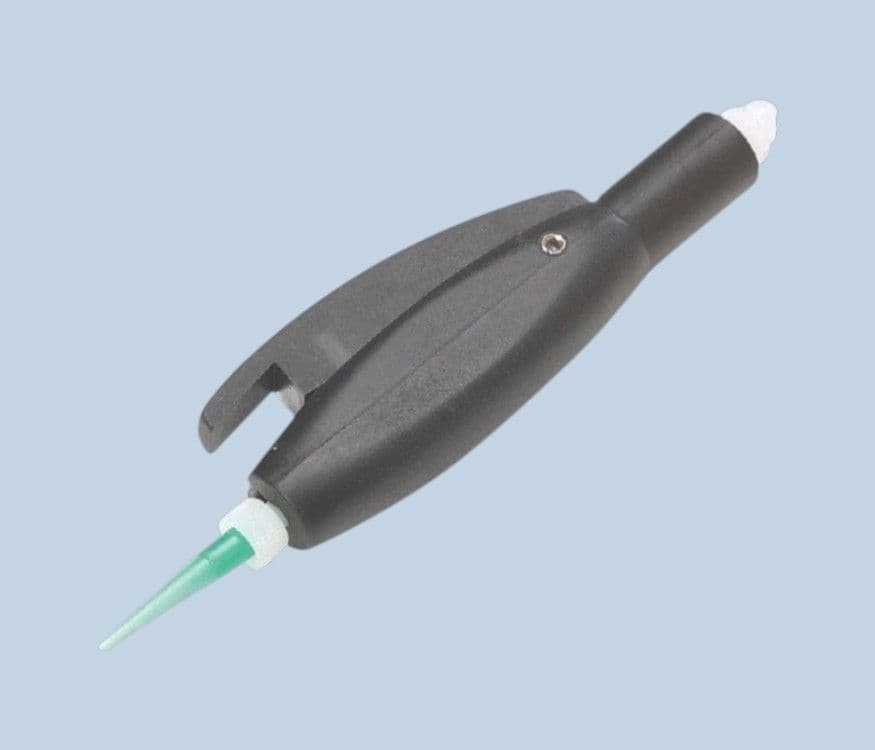

With this system, the adhesive bottle can beplaced directly inside the compact tank unit and fed under very low air pressure down flexible feed tubing to the ahnd held pinch tube valve. Once the trigger is pressed, liquid flows.

For CA's, dispensing tips supplied are Teflon lined to prevent rapid clogging of the adhesive. Using Teflon tips allows the operator to dispense without it blocking too quickly in between breaks or them having to replace tips too often. An assortment of others tips are included for dispensing UV cure, primers, inks, solvents and other fluids.

This dispensing system will ship with a starter stock of tips, tip caps and fluid lines. The only requirement for this system is a compressed air supply of 75 psi. We recommend that the air supply is filtered against moisture. We supply low cost 5-micron filters (part TSD800-6).

Part ID: 2210-1215
Tank Unit: Up to 10 Liter size
Time Range: n/a - manual control
Cycle Rate: n/a - manual control
Minimum Shot Size: n/a - manual control
Viscosity Range: 1-10,000 CPS
Warranty: 1 Year


Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

Price: £876.09   Exc VAT
  • Product Brand:ADL
  • MPN: TS2250-1201Lead Time: Usually 7 DaysWarranty: 1 Year
