TN00DKIT Precision Dispensing Tip Kit – 145‑Piece Industrial Assortment

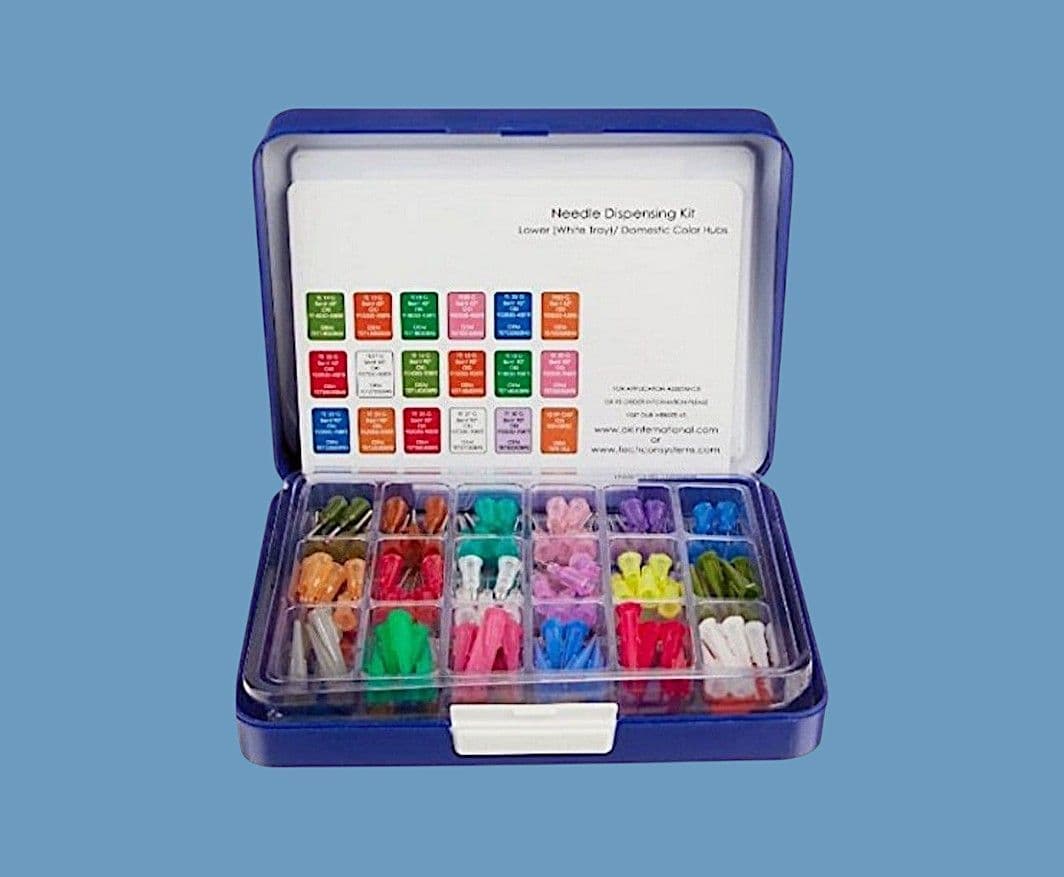

The TN00DKIT provides a comprehensive selection of 145 assorted Luer lock dispensing tips from the precision TE range (0.5" long), including standard blunt‑end tips, 45° and 90° angled tips, smooth‑flow tapered tips and sample tip caps. All components are supplied in a dual‑level plastic tray with an identification card for easy product reference and organisation.
All tips feature a double‑helix Luer lock thread for secure, leak‑free attachment. Colour‑coded hubs and tapered tips use UV‑filtered plastics for added protection. Stainless‑steel tubing on blunt‑end and angled tips is fully burr‑free for smooth, consistent flow. All components are certified silicone‑free and chloride‑free, making them suitable for contamination‑critical applications.
Tips are compatible with syringe barrels, dispensing valves, Luer bottles and fittings, making this kit ideal for testing and evaluating dispensing performance across a wide range of materials and viscosities.
Specification
- Part ID: TN00DKIT
- Blunt End Tip Material: Polypropylene, Stainless Steel
- Blunt End Tip Gauge Sizes: 14, 15, 18, 20, 21, 22, 23, 25, 27, 30
- 45° & 90° Bend Tip Material: Polypropylene, Stainless Steel
- 45° & 90° Bend Tip Gauge Sizes: 14, 15, 18, 20, 25, 27
- Tapered Tip Material: Polyethylene
- Tapered Tip Gauge Sizes: 14, 16, 18, 20, 22, 25, 27
- Tip Cap Material: Polypropylene
- Maximum Pressure: 100 PSI
- Details: Silicone‑Free, Chloride‑Free
- Commodity Code: 39269097
- Brand: Techcon Systems
- Pack Size: 145 Pieces
All tips are rated to 100 PSI, making them safe for use with pneumatic dispensers, metering valves and automated systems. Individual tips from this kit can also be ordered in sealed packs of 50 or 1000, supplied with full batch traceability.
Frequently Asked Questions (FAQ)
What is included in the TN00DKIT?
The kit contains 145 assorted dispensing tips across four major styles: blunt‑end stainless‑steel tips, smooth‑flow tapered tips, 45° and 90° angled tips, and sample tip caps. It provides a complete evaluation set for testing dispensing performance across different viscosities and applications.
Which tip style is best for thick materials?
Tapered tips (14g–27g) are ideal for high‑viscosity materials such as silicones, gels, solder pastes, epoxies and sealants. Their conical design reduces back‑pressure and improves flow consistency.
Which tips are best for low‑viscosity fluids?
Blunt‑end stainless‑steel tips (20g–30g) provide precise control for solvents, primers, inks, activators and low‑viscosity adhesives. Their electro‑polished cannula ensures smooth, consistent flow.
What are angled tips used for?
45° and 90° angled tips are designed for dispensing in tight or obstructed areas, such as:
- Under components
- Inside housings
- Around corners
- Recessed assembly points
They improve reach and directional control in confined spaces.
Are all tips compatible with Luer lock syringes?
Yes. All tips use the double‑helix Luer lock hub, ensuring secure, leak‑free attachment to syringe barrels, dispensing valves and Luer‑compatible fittings.
Are these tips suitable for pneumatic dispensing?
Absolutely. All tips are industrial grade safe to 100 PSI, making them suitable for pneumatic dispensers, benchtop valves and automated XYZ robots.
Are the tips silicone‑free?
Yes. All components are silicone‑free and chloride‑free, ensuring compatibility with RTV silicones, UV adhesives, moisture‑sensitive materials and contamination‑critical processes.
How do I choose the correct gauge size?
Large gauge (14g–18g): Thick pastes, gels, silicones, greases.
Medium gauge (20g–23g): General adhesives, primers, lubricants.
Fine gauge (25g–30g): Micro‑dots, SMT adhesives, solvents, inks.
Is this kit suitable for production environments?
Yes. The TN00DKIT is widely used for:
- Electronics assembly
- Medical device manufacturing
- Automotive modules
- General industrial bonding
- Prototype development
It provides everything needed to establish a reliable dispensing workflow.
Can I reorder individual tips from the kit?
Yes. All tip types are available individually in sealed packs of 50 or 1000 pieces with full traceability.
