Bench top dispensing systems for the controlled application of repeat deposits from 50ml 1:1 ratio dual epoxy, doming resin, polyurethane cartridges. Analog timer with adjustable air regulator and a vacuum suck back to pull the 50ml rods back when changing over cartridges.
Make repeat shots or controlled beads of most two component materials. The lightweight and compact size makes this the ideal bench top dispensing solution for all your sealing, potting, bonding applications.

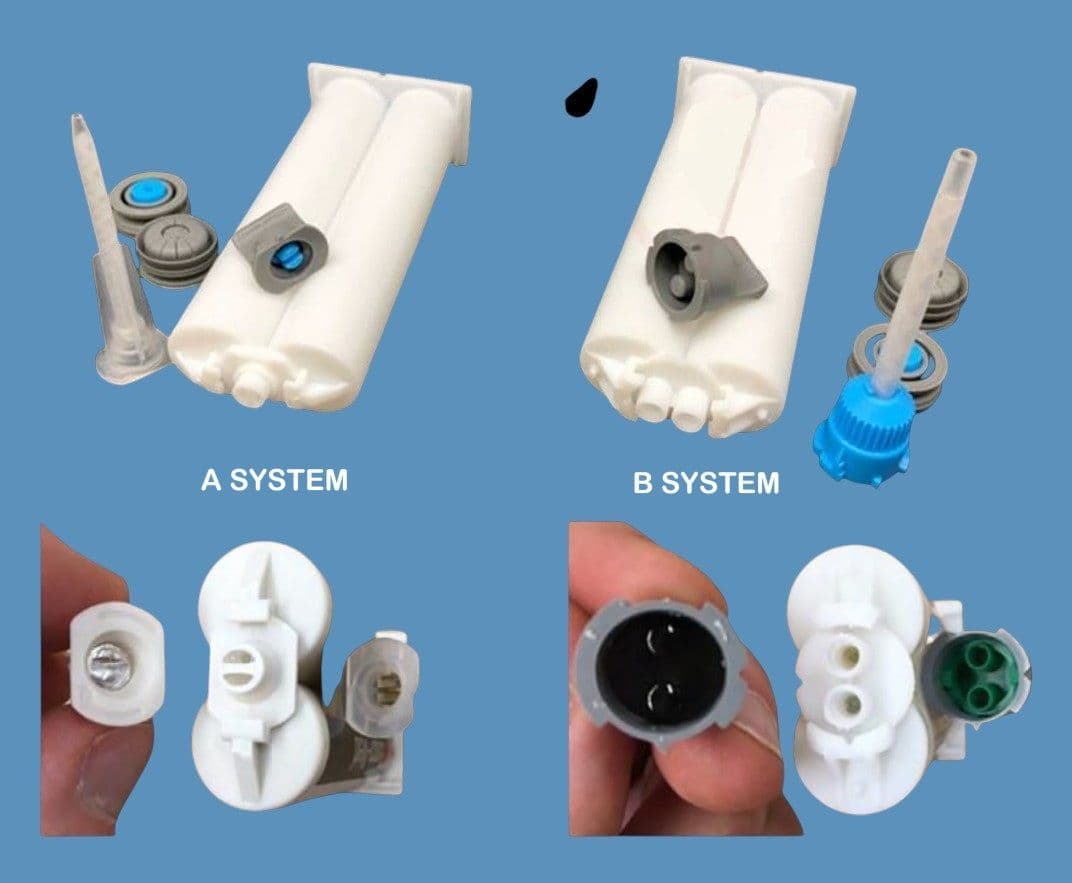

Typically used with 50ml 1:1 A System and B-System dual cartridges. Slide the cartridge into the retainer. Rods move down the cartridge each time the foot pedal is pressed to deliver repeat deposits. The simplified construction and operation makes it easy for even someone that has never used a dispenser before. The unit comes with two modes; manual or pre-set timer. Manual mode keeps dispensing the material whilst the foot pedal is depressed.

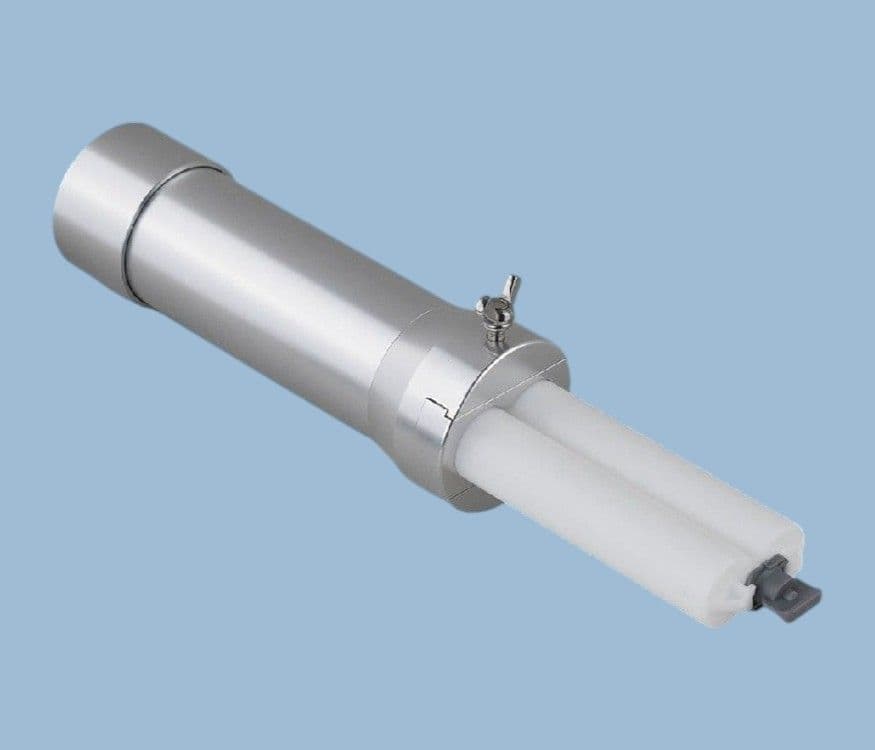

This kit is supplied with the aluminium 50ml 1:1 pneumatic cartridge retainer and air cap with airline hose to attach directly to the dispensing unit. So dispensing direct from filled epoxy tubes is simple. Set the air pressure, the timer and go. Or switch off the timer for making lines and beads.
The kit includes instruction guide and manuals. This machine CE certified and covered by a 2 year warranty. This classic designed benchtop dispenser is simple to use and operate and we offer full technical support for setting up.
Dispensers require clean and dry compressed air from most small compressors, mains factory air supply or nitrogen. We recommend the use of a 5 micron air filter (part TSD800-6EL) on the supply air into the dispenser if your air supply is oiled or contains moisture. This will reduce oil, moisture and particles from the air supply.
Technical Details
Timer: 0.01 - 31 seconds or continuous mode
Output Pressure: 1-100 PSI
Input Pressure: 80-100 PSI
Size: 210 x 241 x 70 mm
Weight: 2.1 kg
Cycle Rate: Up to 600 cycles/ minute
Timer Repeatability: ±0.1%
Input Voltage: 110/220V AC
Warranty: 2 Years
Commodity Code: 85371091
Brand: Adhesive Dispensing Ltd
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
