Timed Shot 50ml 10:1 Ratio Cartridge Dispenser 250-ADV-50-101B
Product Code: 250-ADV-50-101B

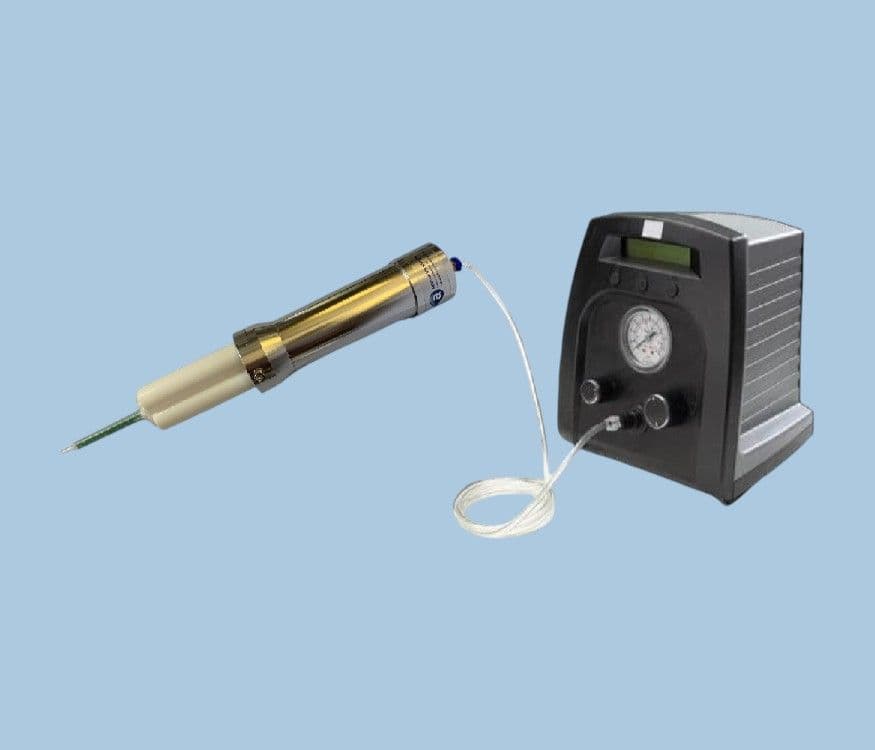

Pneumatic dispenser for repeat shots of epoxies in 50ml 10:1 ratio B type oval dual cartridges

Bench‑Top Timed Shot Dispenser for 50ml 10:1 Dual Epoxy & Polyurethane Cartridges

Precision Equipment for Repeatable Deposits, Controlled Beads & Automated Production

This bench‑top dispensing system is engineered for the accurate, repeatable application of two‑component materials supplied in 50ml 10:1 ratio B‑System and S‑System dual cartridges. Ideal for epoxies, doming resins, polyurethanes and structural adhesives, the unit delivers consistent deposits for sealing, potting, bonding and general assembly work.

Featuring a digital timer, digital shot counter, adjustable air regulator, and vacuum suck‑back control, this system ensures clean, drip‑free dispensing and fast cartridge changeovers. Operators can dispense repeatable shots or continuous beads, using either the foot pedal or the rear I/O port for integration with robots and PLC automation.

The lightweight, compact design makes this the perfect bench‑top solution for production lines, laboratories, repair centres and prototyping environments.

Key Features

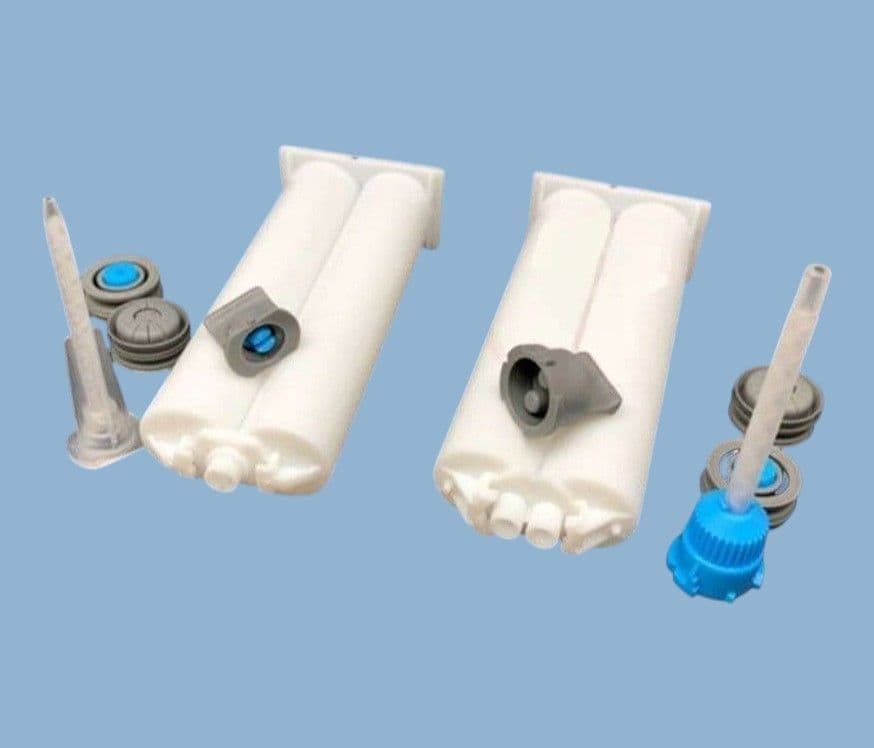

  • Designed for 50ml 10:1 dual cartridges (B‑System & S‑System)

  • Digital timer (0.02–60s) for precise repeat deposits

  • Digital shot counter for production monitoring

  • Vacuum suck‑back to retract rods during cartridge changeover

  • Manual or timed mode for beads or repeat shots

  • Foot pedal activation or robot/PLC control via rear I/O port

  • Compact & lightweight for bench‑top use

  • Easy operation - ideal for new or experienced users

  • CE certified with full technical support

How It Works

Slide the filled 50ml dual cartridge into the aluminium retainer. Each press of the foot pedal advances the rods, dispensing a controlled amount of mixed adhesive through the static mixer nozzle. Switch between timed mode for repeatable dots or manual mode for continuous beads.

Included in the Kit

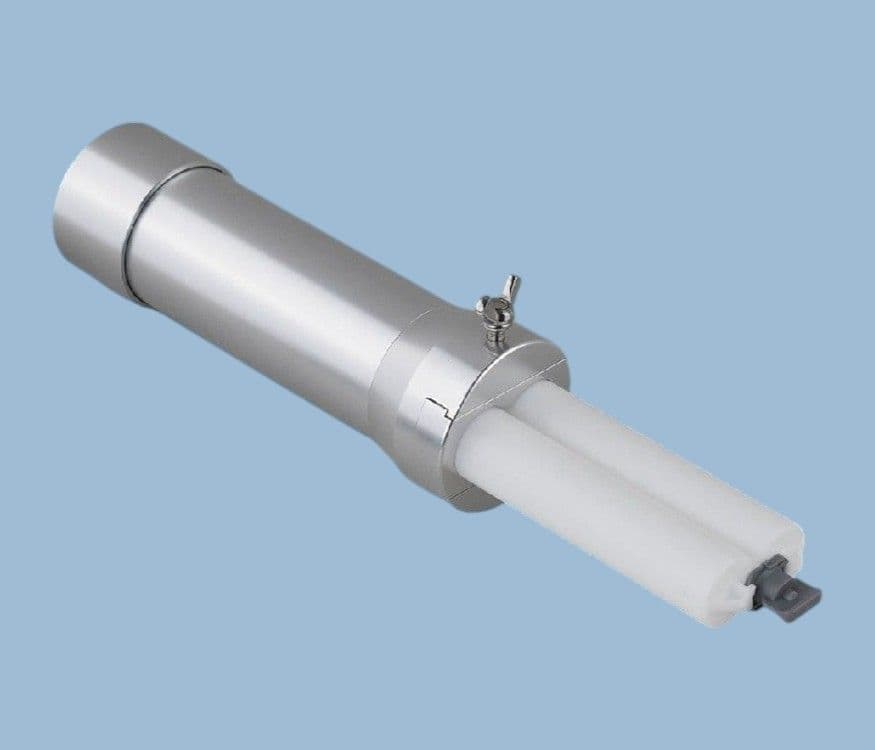

  • 50ml 10:1 pneumatic aluminium cartridge retainer

  • Air cap with airline hose

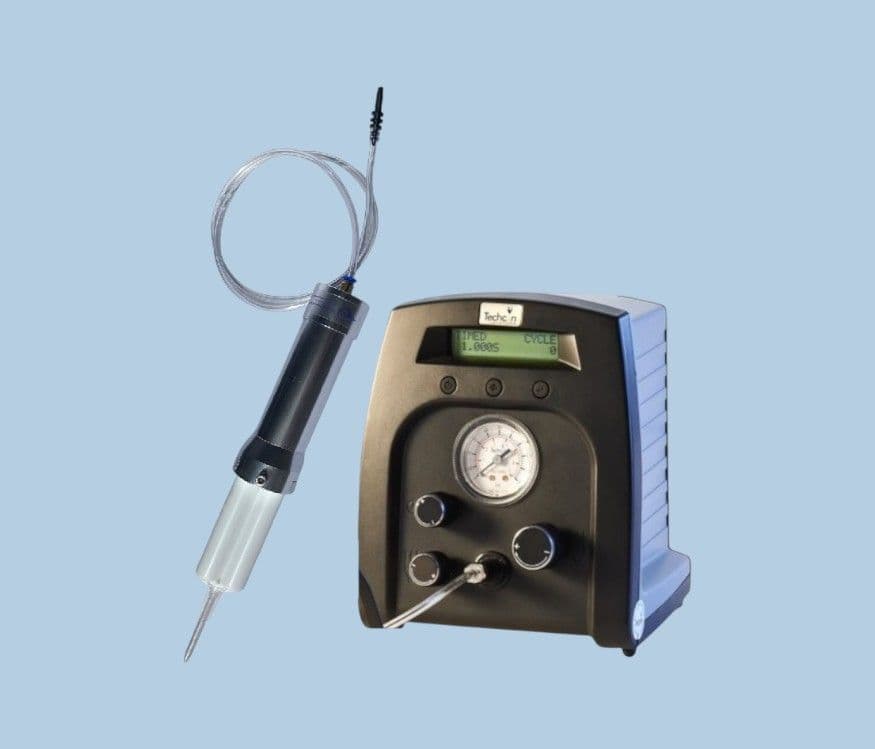

  • Digital timed‑shot dispensing unit

  • Vacuum suck‑back control

  • Foot pedal

  • Rear I/O automation port

  • Instruction guide & manuals

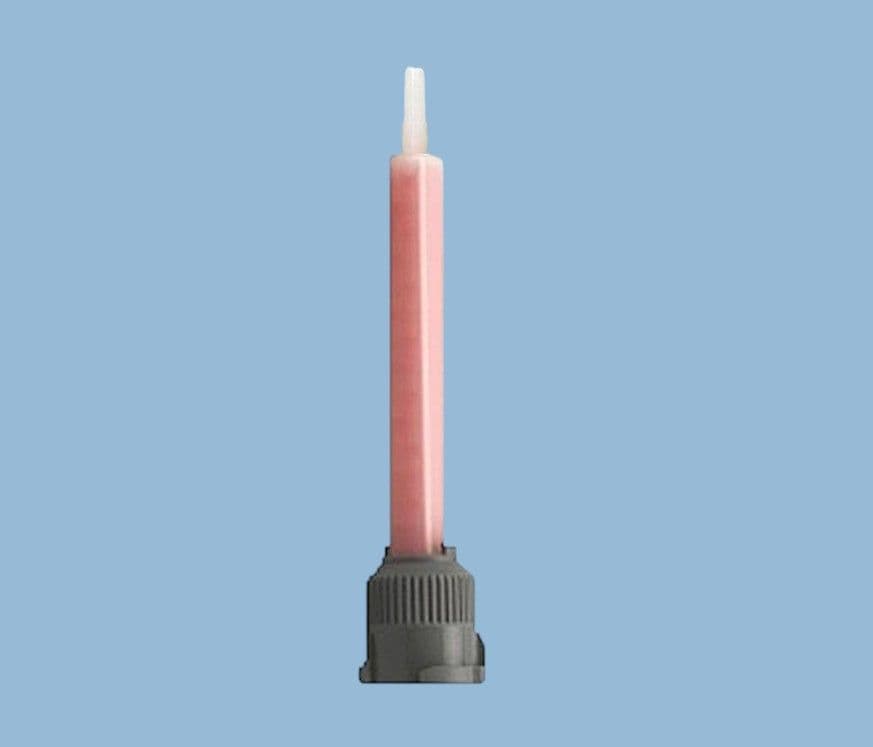

  • Mixer nozzle samples:

    • MBQX 05‑16L

    • MBQX 05‑24L

Everything required for immediate setup is included.

Technical Specifications

  • Timer Range: 0.02–60 seconds or continuous mode

  • Output Pressure: 1–100 PSI

  • Input Pressure: 80–100 PSI

  • Cycle Rate: Up to 600 cycles/minute

  • Timer Repeatability: ±0.1%

  • Input Voltage: 110/220V AC

  • Size: 152 × 165 × 178 mm

  • Weight: 1.2 kg

  • Warranty: 1 Year

  • Commodity Code: 90289090

  • Brand: TSI / Adhesive Dispensing Ltd

Compatible Materials

Perfect for dispensing:

  • Dual‑component epoxies

  • Polyurethane adhesives

  • Doming resins

  • Structural bonding materials

  • Potting compounds

  • Two‑part sealants

Air Supply Requirements

This dispenser operates from:

  • Small workshop compressors

  • Factory air supply

  • Nitrogen systems

For best performance, we recommend a 5‑micron air filter (TSD800‑6EL) to remove moisture, oil and particulates.

Applications

Ideal for:

  • Electronics assembly

  • Resin doming

  • Potting & encapsulation

  • Bonding & sealing

  • Prototyping & repair

  • Automated production lines

Why Choose This System?

  • Fully compatible with industry‑standard 50ml 10:1 ratio dual cartridges

  • Provides repeatable accuracy for production environments

  • Supports both manual and automated dispensing

  • Includes all accessories for immediate operation

  • Backed by full technical support and CE certification

Complete Dispensing Solutions

Adhesive Dispensing Ltd provides a wide range of equipment for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies. Our systems ensure clean, accurate and repeatable results across all manufacturing sectors.

Price: £495.00   Exc VAT
  • Product Brand:Adhesive Dispensing Ltd
  • MPN: 250-ADV-50-101BCartridge Size: 50ml 10:1 Ratio Oval ShapeLead Time: Ships In 24 Hours - Stock Item
