Bench top dispensing systems for the controlled application of repeat deposits from 310ml RTV, Silicone and Sealant type cartridges. Analog timer with adjustable air regulator and a vacuum suck back to prevent ooze or drool of materials. Make measured shots or controlled beads of most materials. The TS9150-310 s a cost-effective timed-shot dispenser. The lightweight and compact size makes this the ideal bench top dispensing solution for all your sealing, potting, gluing, paste and silicone sealant applications.
Typically used with adhesives thick and thin, RTVs, silicones, solder pastes, greases, threadlockers, anaerobics, primers, single epoxies, liquid fluxes, inks, paints, coatings, resins, sealants, PVA glue, etc. The simplified construction and operation makes it easy for even someone that has never used a dispenser before. The unit comes with two modes; manual or pre-set timer.
This kit is supplied with an aluminium metal 310ml cartridge retainer and air cap with airline hose to attach directly to the dispensing unit. So dispensing direct from silicone sealant or caulk tubes is simple. Set the air pressure, the timer and go. Or switch off the timer for making lines and beads.

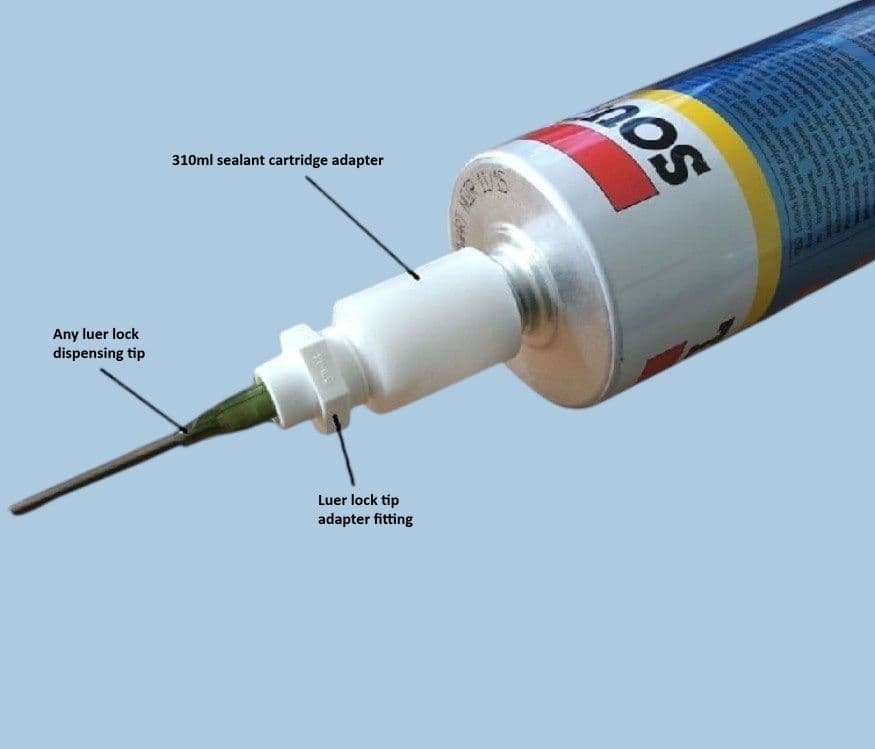

The rest of the kit includes a reusable adapter fitting (part AD931-296) to convert 310ml silicone tubes to a thread for nozzles, a tip adapter fitting (AD931-7) to allow the use of precision luer lock tips, foot switch, finger switch, power cord, instruction guide and manuals. CE certified and covered by a 2 year warranty.
This classic designed benchtop dispenser is simple to use and operate and we offer full technical support for setting up.
Dispensers require clean and dry compressed air from most small compressors, mains factory air supply or nitrogen. We recommend the use of a 5 micron air filter (part TSD800-6EL) on the supply air into the dispenser if your air supply is oiled or contains moisture. This will reduce oil, moisture and particles from the air supply.
Technical Details
Timer: 0.01 - 31 seconds or continuous mode
Output Pressure: 1-100 PSI
Input Pressure: 80-100 PSI
Size: 210 x 241 x 70 mm
Weight: 2.1 kg
Cycle Rate: Up to 600 cycles/ minute
Timer Repeatability: ±0.1%
Input Voltage: 110/220V AC
Warranty: 2 Years
Commodity Code: 85371091
Brand: Adhesive Dispensing Ltd
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
