T930H-C Recirculatory Fume Filter Cabinet

T930H-C Recirculatory Fume Filter Cabinet
Product Code: TS930H-C

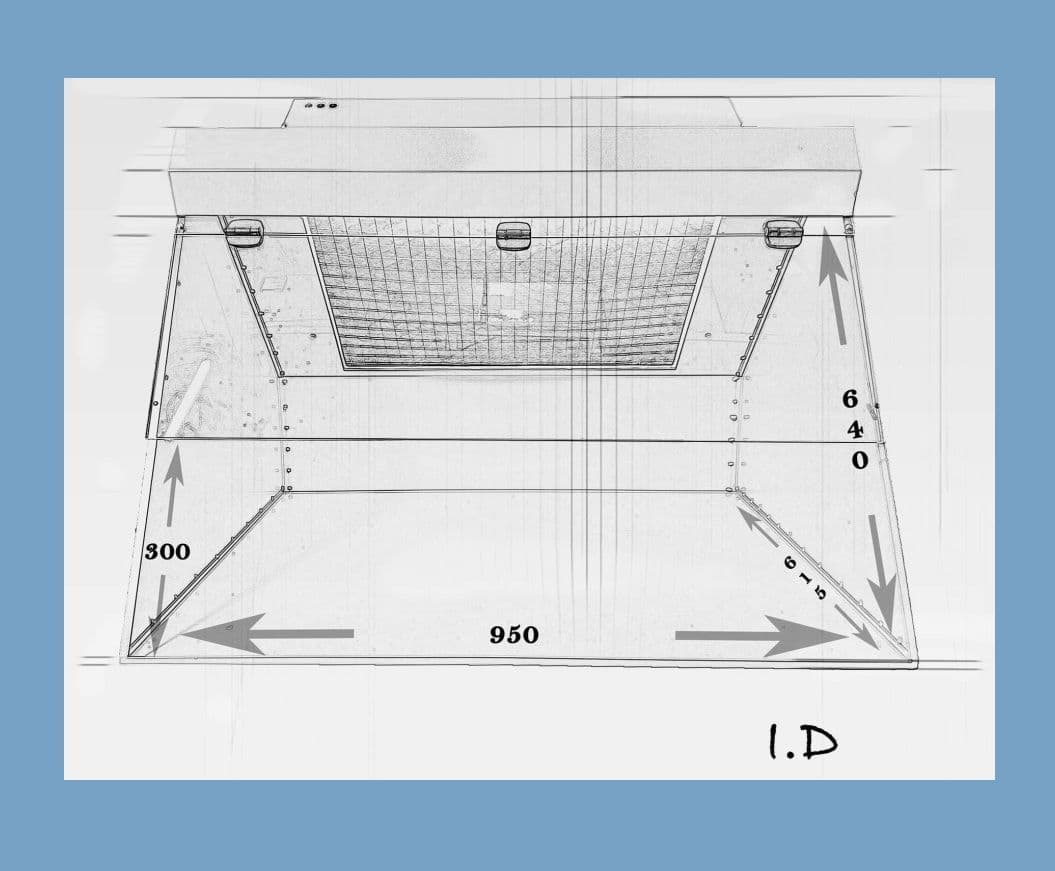

Size: 960 W x 800 H x 620mm D Air Volume at Free Air: 355 m3/hr Air Velocity at Filter Face: 0.50 m/sec Air Velocity at Hood Face: 0.38 m/sec Noise Level: 60 dB (A)
Standard hood mounted filtration cabinet with high-efficiency carbon filter. Capture, contain and filter within electronic design and rework, dental/ medical labs, pharmaceutical labs, design, technology and science in education and more...  Applications include the filtration of fumes, vapour and particulates emanating from:

Spray adhesives, conformal coatings and paints, monomers, hazardous powders and particulates, resins, sealants, solders, light grinding particles, organic solvents and cleaners etc.

Operation
All filtration and extraction systems carry a lifetime warranty, are quiet in operation and can be assembled in seconds. Place onto a desk, bench or trolley and then simply plug in and switch on. Handling and / or use of potentially harmful substances is carried out within the hood enclosure in front of the intake filter area. Cleaned air is vented to the top rear of the units. For artwork applications, standard A2 drawing boards can be placed within the hood enclosure. The boards fit at an angle for efficient over spray capture.

Filtration
The particulate (intake) filter is a three stage graduated fibre filter with a high 'dust' holding capacity for long life. Filtration to 5 micron particles. (Optional EPA filters available). This is followed by a high grade bonded carbon filter. Through the process of filtration, adsorption and dilution, operator exposure to potentially hazardous substances is vastly reduced or eliminated.

These units are designed for immediate operator protection from concentrations of airborne contaminants whereby all gases, fumes, vapours and particulates within the hood enclosure are filtered and cleaned air is exhausted to the top rear of the cabinet.

Demonstrating adequate control of the risks to the health of employees students and the general public, from dusts, powders, mists, fumes and vapours is the fundamental requirement of the Control of Substances Hazardous to Health (CoSHH).


Applications include the filtration of fume, vapour and particulates emanating from monomers, adhesives, hazardous powders/particulates, conformal coatings, resins, sealants, solders, light grinding particles and dusts, organic solvents etc.

* 1 Year Warranty. CE certified.

* Systems are built to order. Please allow 3-4 weeks to completion. Items are sent on protected pallets.
Price: £2,311.00   Exc VAT
  • Product Brand:WS
  • MPN: TS930H-CLead Time: Around 4 WeeksVoltage: 240V AC
