Smart Digital Timed Valve Controller TS555R

Techcon TS555R Smart Digital Valve Controller Adhesive Dispensing Ltd
Techcon TS555R Smart Digital Valve Controller Adhesive Dispensing Ltd Techcon TS555R Smart Digital Valve Controller Adhesive Dispensing Ltd Techcon TS555R Smart Digital Valve Controller Adhesive Dispensing Ltd Techcon TS555R Smart Digital Valve Controller Adhesive Dispensing Ltd
Smart Digital Timed Valve Controller TS555R
Product Code: TS555R

Smart valve controller for pinch, needle, diaphragm & spool valves. I/O, Ethernet, Touch Screen.

The TS555R is a smart controller capable of controlling all pneumatic valve series including: TS1212 pinch tube valve, TS941/TS5322 Spool valve, TS5420/TS5440 Needle valve and TS5620/TS5622 Diaphragm valve. With a universal power supply, it is a fully plug and play system and can be used immediately, anywhere in the world.

The TS555R Smart valve controller features an intuitive touch screen interface for easy setup and operation. Dispensing parameters can be precisely configured directly on the touch screen or remotely through the networking options. First in its class, the TS555R is equipped with Ethernet and WiFi interfaces that allow users to configure the exact parameters and monitor and control the process from anywhere in the world. This feature complies with Smart Factory requirements of Industry 4.0.
Additional advance features include digital timer to provide accurate and repeatable dispense time, and digital pressure regulator with dual-unit display to allow precise pressure control.
The friendly user interface provides an option to program up to 50 varied, sequenced or individual shots. These systems have a user programmable purge, timed dispense cycle settings and a teach mode for determining the dispensing time.

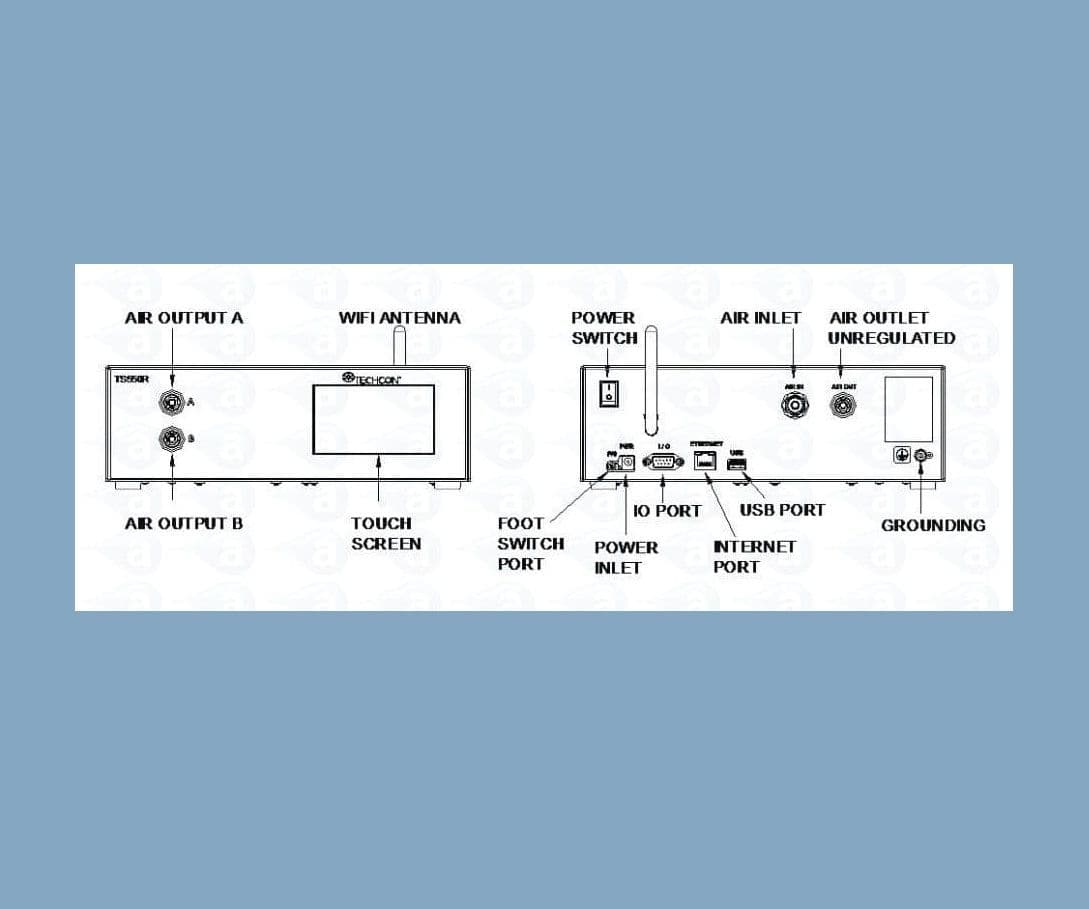

Integration into semi-automatic and automatic machinery is made easy with the I/O interface connector that can be used to initiate and stop the dispense cycle with feedback to the host machine for the next cycle. A low-pressure warning feature is also included to help maintain uninterrupted dispensing.

The controller is shipped with the following items:
- Universal power supply
- Foot switch
- Air hose
- Air filter (5 Micron)
Accessories
- Fluid reservoirs: The controller can be used in combination with the TS2220 or TS2250 Pressure Tanks
- Dispensing Tips: Suitable for use with all tip series.
Certification: CE, TUV-GS
Connectivity: Ethernet, WIFI
Cycle Modes: Timed, Interrupt, Teach, Purge
Cycle Rate: 900/min.
Input Voltage: 100 – 240 VAC
Timing Tolerance: +/- 0.001%
Timing Range: 0.008 – 99.9 seconds
Display: Touch Screen
Pressure Range: 0 to 100psi (0-6.9 bar)
Weight: 6.8 lb (3100g)

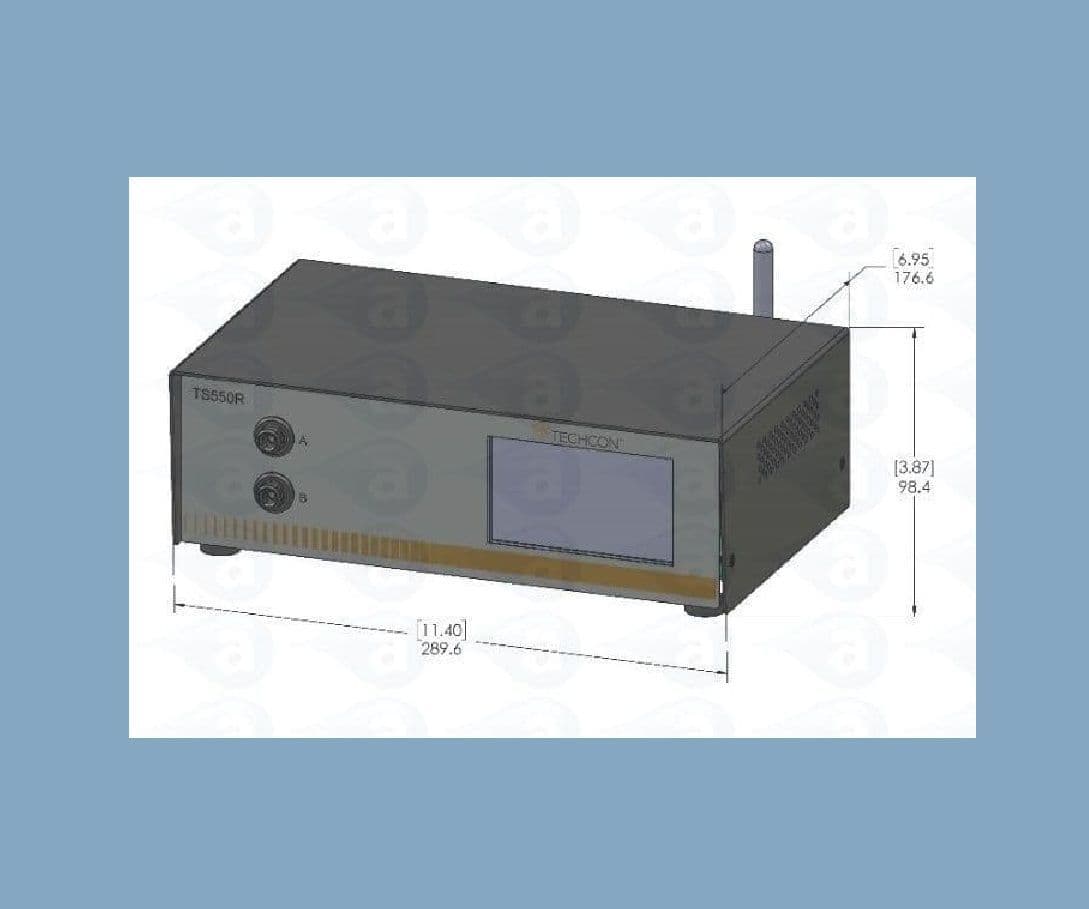

Size (Metric): 290mm x 211mm x 99mm
Size (Imperial): 11.4' W x 8.3'' L x 3.9'' H
Part Number: TS555R
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Price: £1,085.00   Exc VAT
  • Product Brand:Techcon
  • Lead Time: 2-3 WeeksWarranty: 2 YearsMPN: TS555R
