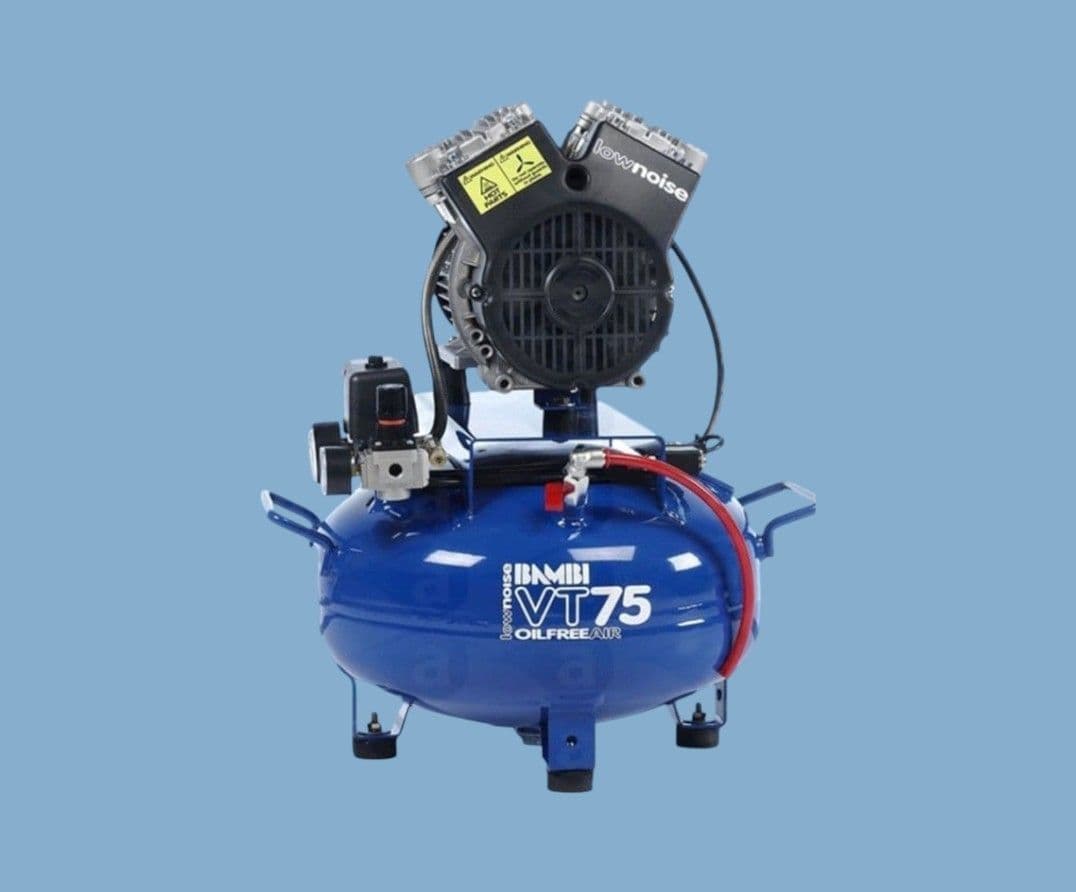

Quality is the primary component built into each VT Oil Free Compressor. At the heart of the VT range is the Vee Twin pump unit with one of the lowest noise levels of any oil free compressor available, made possible by the very latest “tilting piston” technology. Perfect when you demand the highest possible air quality for critical applications; dentistry, scientific laboratories, food packaging, pneumatic controls, hospital ventilators, adhesive dispensing - and anywhere when low maintenance is essential.
Packed with novel technical features, even the standard models without air dryers are fitted with a “soft start” solenoid valve. This discharges the air pressure in the pump whenever the power is disconnected, protecting the compressor from overload and extending the service life. Anti corrosion, internally coated air receivers are fitted across the range ensuring the air is contamination free.
Every model is available with our innovative Air Dryer unit designed to guarantee “desert dry” air. The multi row, fan assisted after-cooler reduces the air temperature prior to entering the dryer. Dramatically reducing the air temperature enables the integral coalescing filter to collect and remove water droplets as small as 0.01 microns.
In this way it is possible to remove 99% moisture content before the desiccant adsorption system powers the dryness right down. Constructed from high quality “Inox” stainless steel, the dryer regenerates itself every time the compressor cycles and requires no regular maintenance. An integral downstream HE dust filter removes any residual dust.
And, uniquely on this size of compressor, the Duplex units are fitted with a sequential start system which enables these 3.0Hp and 4.0Hp systems to run off a 20 amp single phase power source reducing installation costs and start up load. Every compressor is protected by a comprehensive warranty extending to 5 years on the air receiver and 2 years for the compressor (subject to terms). VTS Range, the perfect compressor for laboratories, food industry, drink dispensing, dental surgeries, medical equipment and all other clean-air critical applications.
There are times when the compressor has to be sited near the point of use and for these installations we have the VTS Models which are almost inaudible when running and are perfect where no noise is essential. Not just an acoustic hood but a dedicated silent range. Engineered from the ground up, with a stunning design that will look great in any location – something that looks this good should have pride of place in your workspace !
Having the same innovative features and technological advances as the standard VT models, this additional range has been developed to deliver the highest quality of compressed air with noise levels from as low as 54 dB(A). To ensure the highest levels of reliability, we have carefully studied air flow dynamics and incorporated full force through ventilation to keep everything running cool. A thermostatically controlled sensor signals when any of the four cooling fans should run, reducing noise levels to the absolute minimum. An optional integral air dryer and after cooler is available on every model achieving a -40°c Dewpoint, delivering the ultimate combination of silence, oil free and dry air in an ultra compact and stylish package.
Oil free will not pass oil, but may pass condensation depending on conditions and usage. This compressor has a 50% duty cycle. This means 10 minutes on, 10 minutes off. Up to a maximum of 30 minutes on, 30 minutes off. Not intended for heavy duty use. Should not be used with air tools. These are low noise compressors. "Silent" or "Ultra Quiet" does not mean zero sound. Please see the Noise Level (dBA) figures.
