Rotary Dispenser Z Height Index Model ADL-300
Product Code: ADL-300

Digital Dispenser 0-100 PSI Air Regulator Timer Vacuum Suck-back 0-300 RPM Rotary Table

Liquid Rotary Dispenser with Digital Timer, Vacuum Suck-back and LCD Display

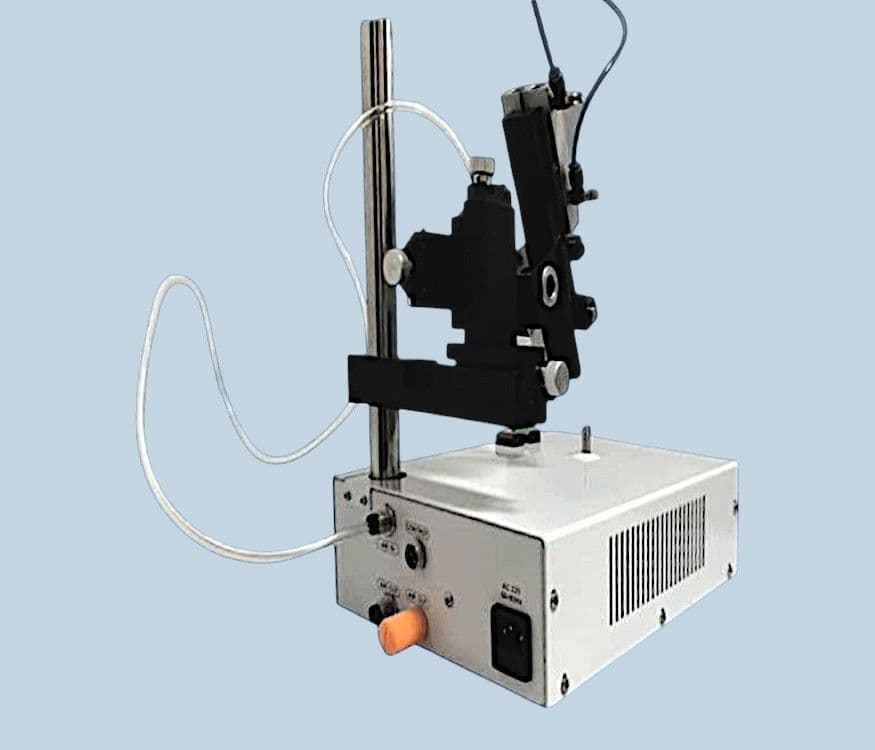

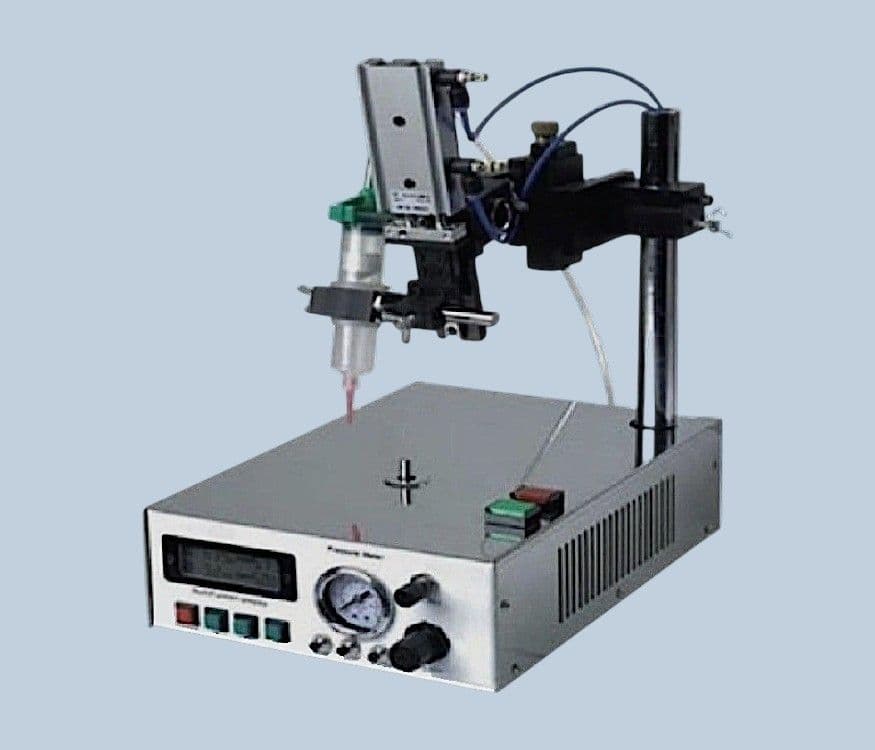

The ADL-300 is bench top rotary dispensing station for applying adhesives, fluids and pastes to circular components under 152mm in diameter.  This rotary table provides an efficient method of dispensing a pattern onto circular products. The tilting Z-axis allows controlled rotary dispensing on an angle if required.

The ADL-300 dispenses adhesives, silicones, grease and lubricants and is fully adjustable in rotation speed, circle diameter and dispensing time. Dispense from 30cc or 55cc sized barrels mounted on the Z-axis. The Z-axis tilt is easily adjusted to dispense either on a vertical wall within a cylindrical part or on an outside wall. The system will spin the part, index down and dispense to a required time. The head then indexes back into position after fluid is applied. The speed of index can be adjusted. A built-in vacuum suck-back is designed for watery liquids.

This is a stand alone dispensing station. Supplied with 30cc and 55cc barrels, pistons, caps as well as a full precision tip kit.


Features
    Dispenses in circles from 0-900°
    Adjustable Z-axis including tilt control
    Variable speed table
    Simple to set up and operate
    Fully programmable for perfect dispensing

Specifications
Cycle Initiation: Manual or Automatic
Vertical Travel: 2.00” (50mm)
Rotation Speed: 0-300rpm
Air Input: 70-100 psi (5 - 7 bar)
Air Output: 1-60 psi (0.1 - 4 bar)
Dimensions (W x D x H): 215 x 310 x 85
Machine Weight: 7 kg
CE Approved

Commodity Code: 39173900
Warranty: 1 Year


Models
ADL-300      Rotary Table 220V
ADL-300-110  Rotary Table 110V

An adjustable vacuum provides suck-back to the tip to prevent watery liquids from dripping. We recommend the use of an inline filter on the air adapter to the syringe when dispensing low viscosity fluids. The display shows the timer which can be adjusted for repeat deposits, down to micro-dots. The display shows the RPM, the delay time from dispensing as the table turns and delay time after.

This compact dispenser sits on the bench and requires an air input from any compressor or factory mains supply. It comes with airline hose and fittings kit to make connection easy. Ready to use out of the box. CE approved with 1 Year warranty.


Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.


Price: £1,350.00   Exc VAT
  • Product Brand:Adhesive Dispensing Ltd
  • Lead Time: Ships in 24 Hours - Stock ItemVoltage: 110V ACMPN: ADL-300
