Robot Bracket TS5322 Valve TSR-CABRACKET-10MSP

Robot Mount Bracket TS5322 Valve TSR-CABRACKET-10MSP Adhesive Dispensing Techcon
Robot Mount Bracket TS5322 Valve TSR-CABRACKET-10MSP Adhesive Dispensing Techcon
Robot Bracket TS5322 Valve TSR-CABRACKET-10MSP
Product Code: TSR-CABRACKET-10MSP

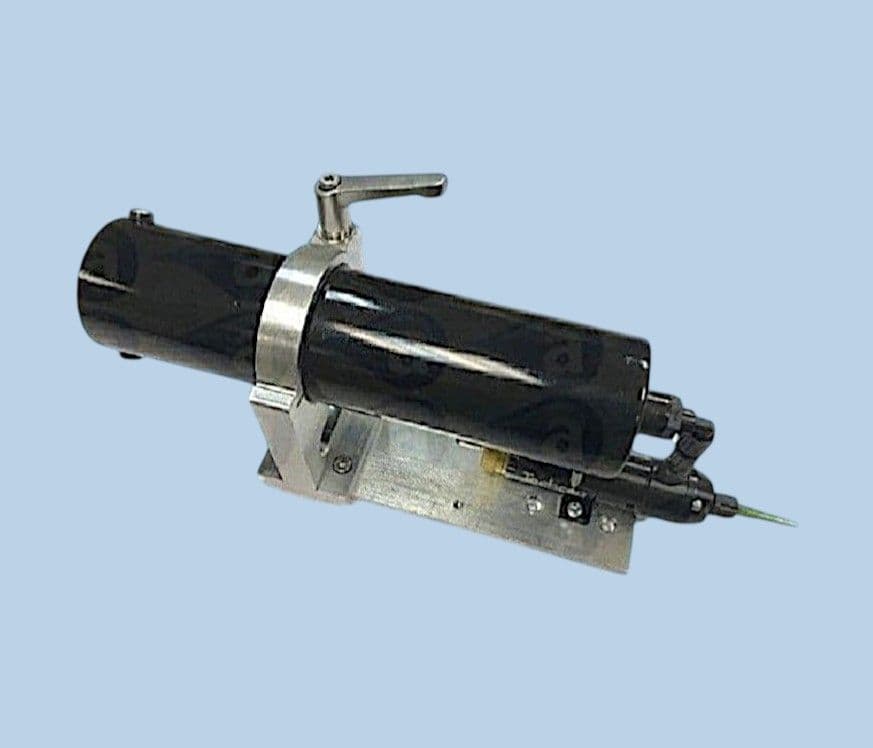

Robot accessories - mini spool valve & cartridge mounting bracket TSR robots
A mounting bracket for TS5322/ TS5322D and other valves with 310ml Cartridge Retainer. Allows use of silicone sealant tubes to feed a dispensing valve and be mounted on an XYZ robot.
Made from quality metal parts. 310ml retainer and air cap are ordered separately. These parts are built to order. Only functions with pneumatic valves that have rotating fluid inlet section. Excludes TS1212 & TS5440 valves.

Additional fittings required to connect valve to cartridge.

Product Code: TSR-CABRACKET-10MSP
Type: Bracket
Material: Aluminium
Brand: Techcon
Commodity Code: 90289090
Origin: DEU
Pack Size: 1

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Price: £781.00   Exc VAT
  • Product Brand:Techcon
  • MPN: TSR-CABRACKET-10MSPMfg: TechconLead Time: 10-14 Days
