Easy Flow Rib Cartridge Plunger for 2.5oz, 6oz, 8oz, 12oz for Industrial Cartridges
TS1WP-RIB LOW INTERFERENCE - For thick materials
Incorporating specially designed RIB’s, that are equally spaced, ensures a shallow area remains present around the piston outer walls – directing unwanted air out of the fluid during cartridge filling and dispensing. A single wiping edge can allow some material residue to remain on cartridge walls. Very easy to install, natural in colour and made of low density polyethylene (LDPE).
At Adhesive Dispensing Ltd, we supply premium-quality dispensing cartridges and plungers engineered for precision, durability, and compatibility with a wide range of adhesives, sealants, and chemical fluids. Our components are silicone-free, industrial-grade, and designed to deliver exceptional performance in both manual and pneumatic dispensing systems.
Cartridge Features & Applications

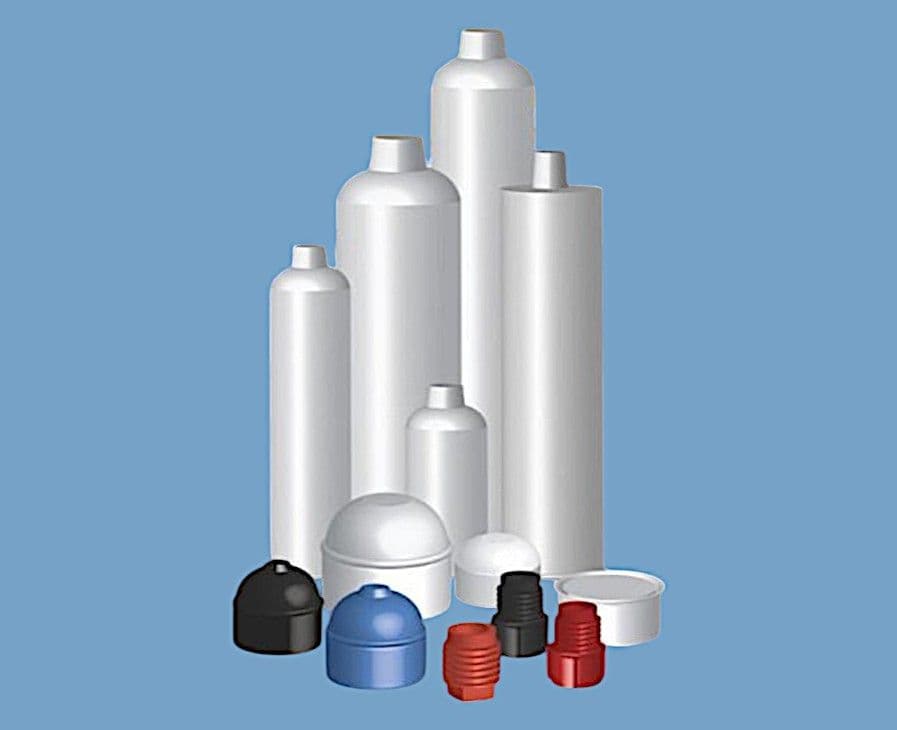

Techcon industrial dispensing cartridges are manufactured using high-density (HDPE) or low-density polyethylene (LDPE) with thick, non-tapered walls for consistent plunger movement and superior chemical resistance.
Compatible Fluids:
- Polysulphides
- Solder pastes & fluxes
- Epoxies & urethanes
- Acrylics & UV-cure adhesives
- Greases, silicones, gels, and more

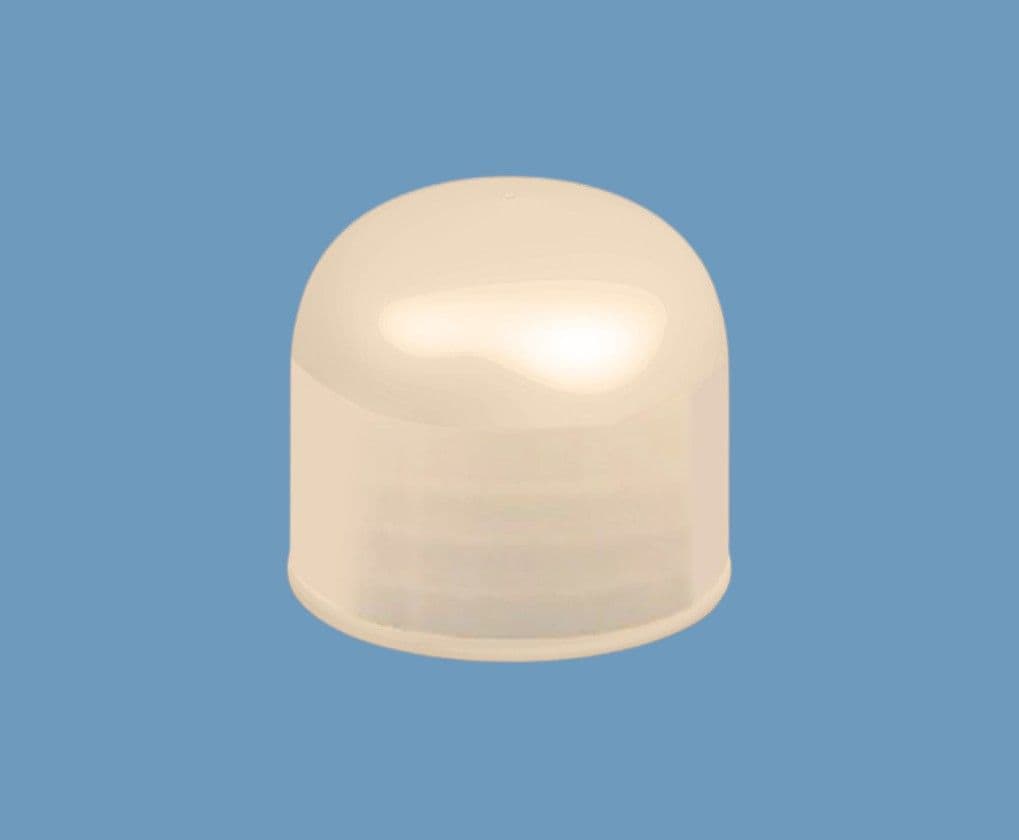

TS1WP-RIB Cartridge Plunger – Easy Flow
Incorporating special designed RIB's, that are equally spaced, ensures a shallow area remains present around the plunger outer walls - directing unwanted trapped air out of the fluid during both cartridge filling and dispensing. A single wiping following edge can allow some material residue to remain on cartridge walls. Very easy to use. If you dispense very thick or tacky materials, or your current plunger is difficult to insert into the cartridge or if it traps air when inserted, use this plunger.
Product Specifications:
Part ID: TS1WP-RIB
Pack Size: 10, 50 or 1000 pcs
Material: Low-Density Polyethylene (LDPE)
Colour Natural
Outer Diameter: 1.59" (40.38mm)
Pressure Rating Up to 100 PSI

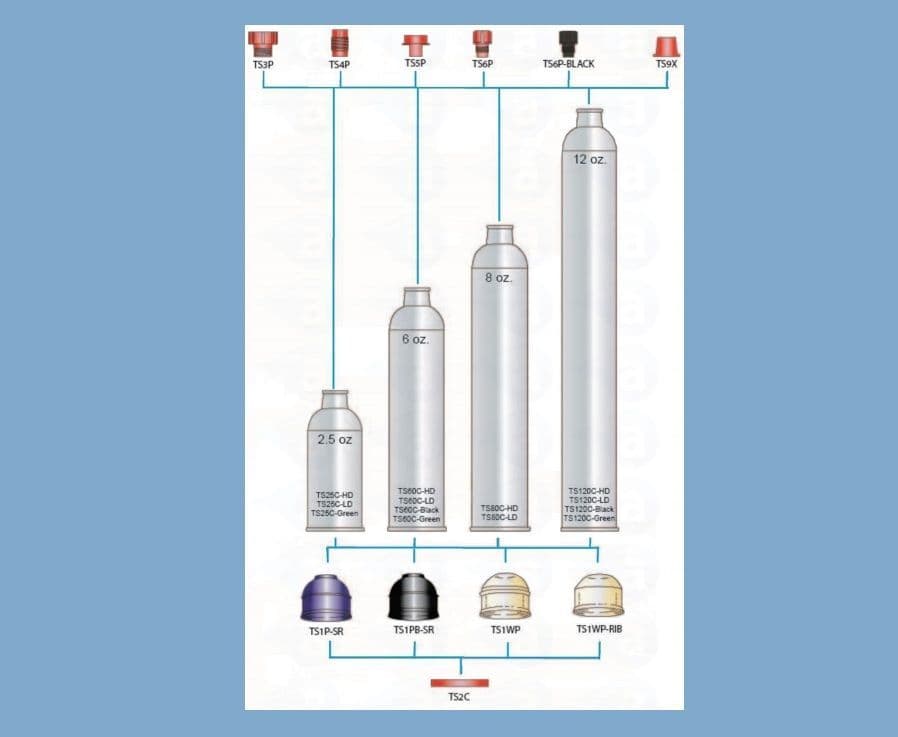

For Cartridge Sizes 2.5 oz, 6 oz, 8 oz, 12 oz
Commodity Code 39235010
Origin: USA
Brand :Techcon
Benefits:
- Easier insertion once cartridge is filled
- Less sticking or bouncing with tacky materials
- Reduces material waste and drooling of thick fluids
- Improves dispensing control and operator safety
- Reduces adhesive fumes
- Compatible with manual and pneumatic cartridge guns
- Supplied in sealed, labelled packs with batch codes for traceability
Adhesive Dispensing Ltd offers a full range of dispensing equipment and accessories to support your production needs - from watery liquids and solvents to high-viscosity pastes and gels. Whether you're working with adhesives, sealants, silicones, or epoxies, we provide the tools and expertise to ensure clean, accurate, and repeatable results.
