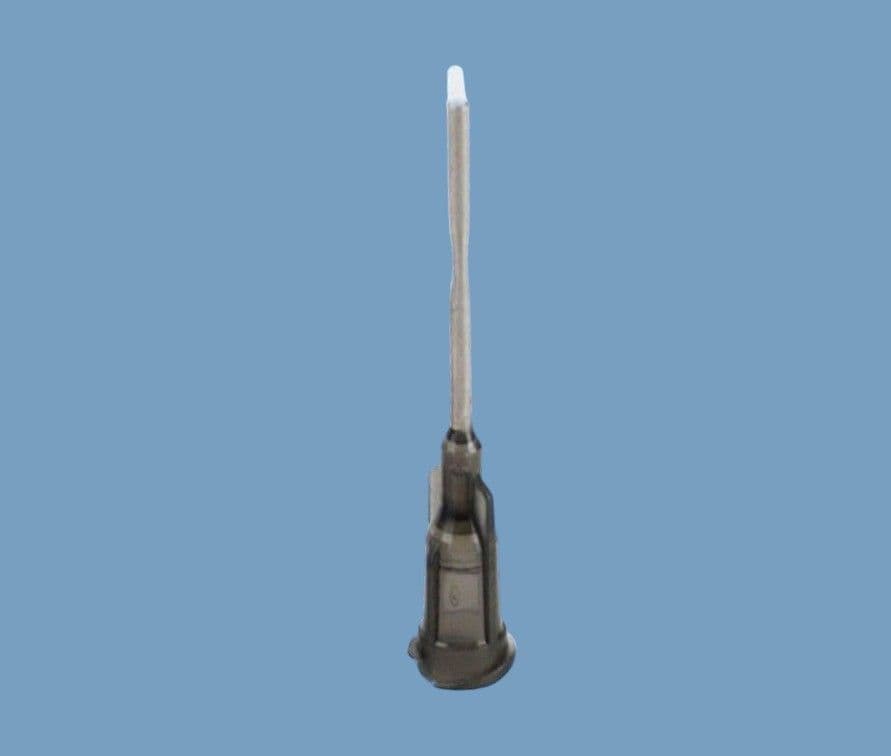

PTFE Lined Crimped Dispensing Tip 560125

Name: PTFE Lined Crimped Dispensing Tip 560125
Brand: Fisnar
Price: 43.50 GBP
Availability: InStock

Product Code: 5601254

Grey Hub. In packs of 50. In tube length of 1". Tube ID 0.51mm. Fisnar brand

Precision crimped Teflon-Lined dispense tip ideally suited to clog-free dispensing of Cyanoacrylate adhesives and other low to medium viscosity fluids. A standard stainless shaft length of 1.0". Colour coded double helix locking hub. The Teflon Lined Tip is suited to the controlled application of Cyanoacrylates, Solvents, Activators, Primers and other liquids.

The crimped Teflon inner tube prevents reactive Cyanoacrylates from clogging during application. The Teflon tube extends 1/8" from the stainless steel tube to prevent damage to sensitive substrates. Supplied in sealed boxes of 50 with bulk available on request. This tip features a double helix luer locking pink hub for easy identification. The tips are silicone free and chloride free to prevent contamination of any liquid dispensed. Tips are colour coded for gauge size.

The tip features a slightly tapered internal design where the shaft meets the hub to improve fluid flow and reduce any restriction. This allows for a lower pressure to be used for dispensing liquids.

Part ID: 5601254
Materials: Teflon/ Polypropylene/ Stainless Steel
Hub Colour: Grey
Inner Diameter: 0.021" (0.51mm)
Attachment: Double helix luer lock
Length: 1.00" - 25.0 mm
Details: Industrial Grade, Silicone Free

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies .

Price: £36.25 Exc VAT
