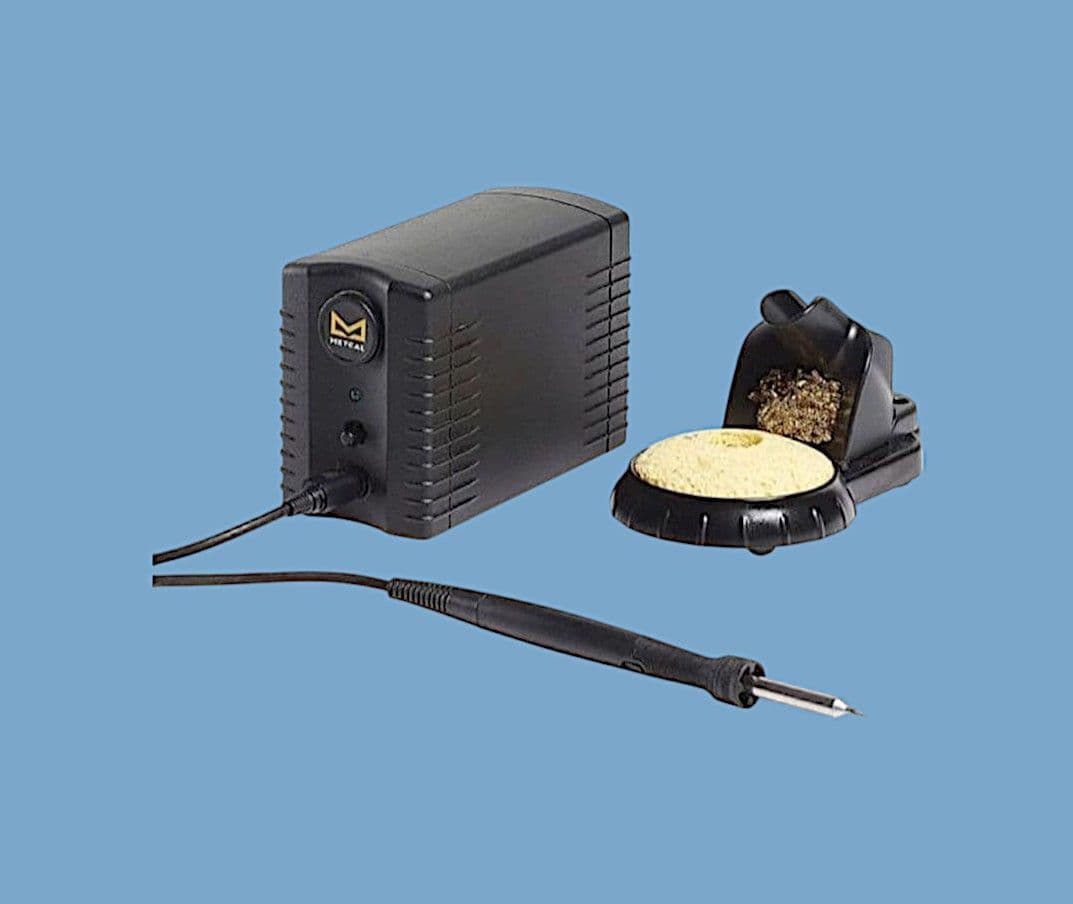

Metcal PS-900. Production Soldering System - Tip Hand-piece

The PS-900 packs power and provides exceptional thermal control into a small benchtop footprint.

Features and Benefits:
SmartHeat temperature control
Ergonomic, lightweight handle
Rugged cast aluminium housing
Added plating thickness to tips
Low cost, quick-change heater coil

Product Comprises of:
PS-PW900:    Power Supply
PS-HC3    :    Hand-piece with long cord with Coil Assembly
SFV-CH15A:    Chisel soldering tip 1.5mm (.06")
WS2-NS    :    Workstand
AC-CP2    :    Tip removal pad

Tips / Cartridges Series compatible with this system:
SxV Soldering Tips
CxV Blade Tips

Technical Specification
Power Supply:
Output Frequency:        450 KHz
Output Power:            60 Watts max. at 22°C ambient temperature
Power Consumption:        90 Watts max.
Input Line Frequency:        50/60 Hz
Input Line Voltage:        100 - 240 VAC
Maximum Enclosure Temperature:    65°C
Ambient Operating Temperature:    10 - 40°C
Power Cord (3-wire):        274 cm 18/3 SJT
Dimensions W x D x H:        80 x 160 x 115 mm (3.1" x 6.3" x 4.5")

Soldering Handle and Coil Assembly:
Tip to grip:            58 mm (2.28")
Grip diameter:            13 mm (0.51")
Overall length (with tip):    230 mm (9.06") with standard tips Connector 3-pin power connector
Handle Cord Assembly Length:    122 cm – burn proof, ESD safe
Idle Temperature Repeatability:    ± 1.1°C in still air
Tip-to-Ground Resistance:    < 2 ohms
Tip-to-Ground Potential:    < 2 mV
Tip shaft diameter:        8.0 mm (0.31")
Tip length:            82 mm (3.23") to 93 mm (3.66") (typical)
Workstand W x D x H:        105 x 175 x 90 mm (4.1" x 6.9" x 3.5")
