DCK500 Precision Dispensing Luer Lock Tip & Barrel Kit – 144‑Piece Industrial Assortment

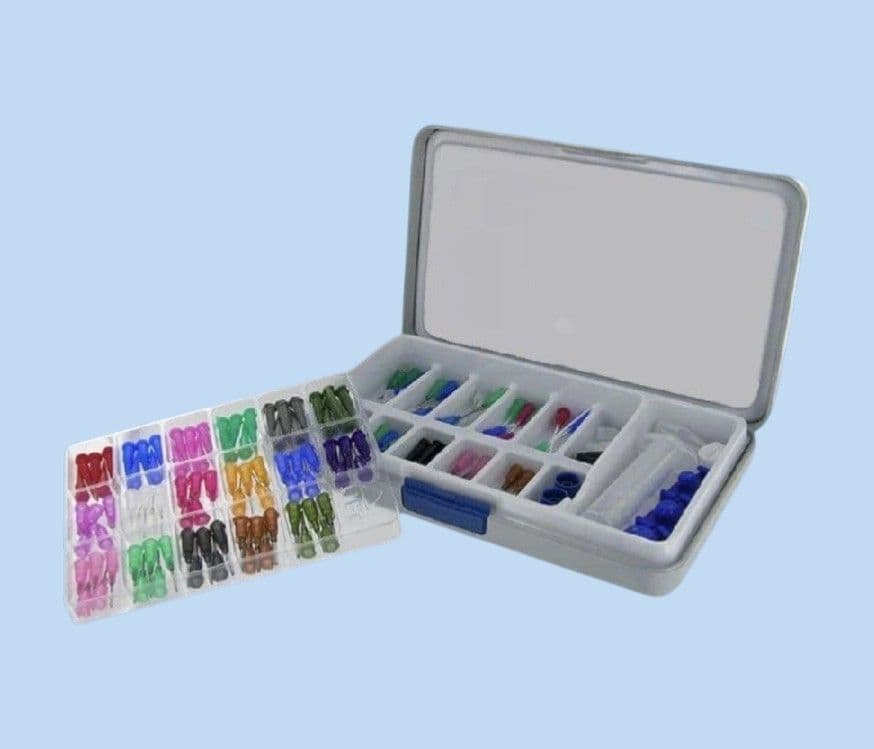

The DCK500 kit is a comprehensive evaluation and starter pack containing 144 assorted Luer lock dispensing tips, barrels, pistons, tip caps and end cap seals. It is ideal for setting up, testing and optimising dispensing processes across different viscosities and applications.
All tips feature a double‑helix Luer lock thread for secure, leak‑free attachment and are rated safe for use up to 100 PSI. Colour‑coded hubs and tapered tips use UV‑filtered plastics for added protection. All dispensing components are certified silicone‑free and chloride‑free, ensuring compatibility with sensitive adhesives and contamination‑critical processes. Barrels, pistons and caps included are the smaller sizes: 3cc, 5cc and 10cc.

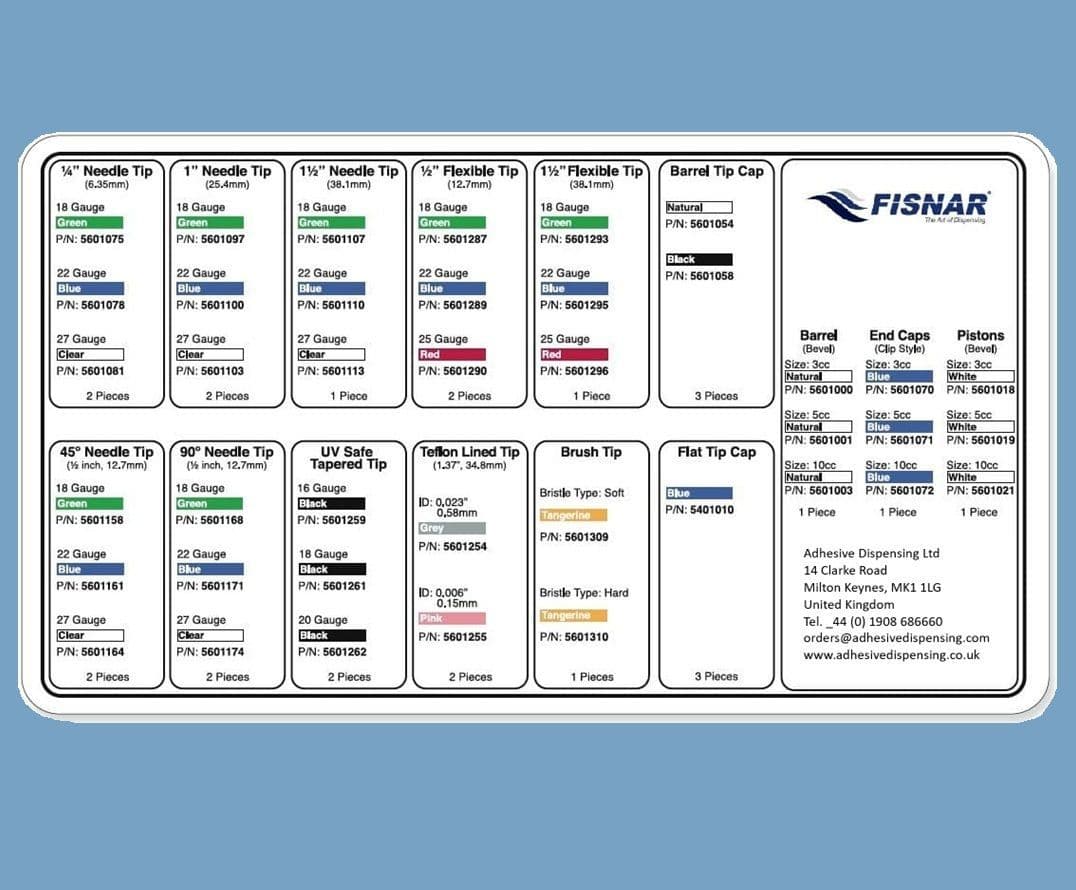

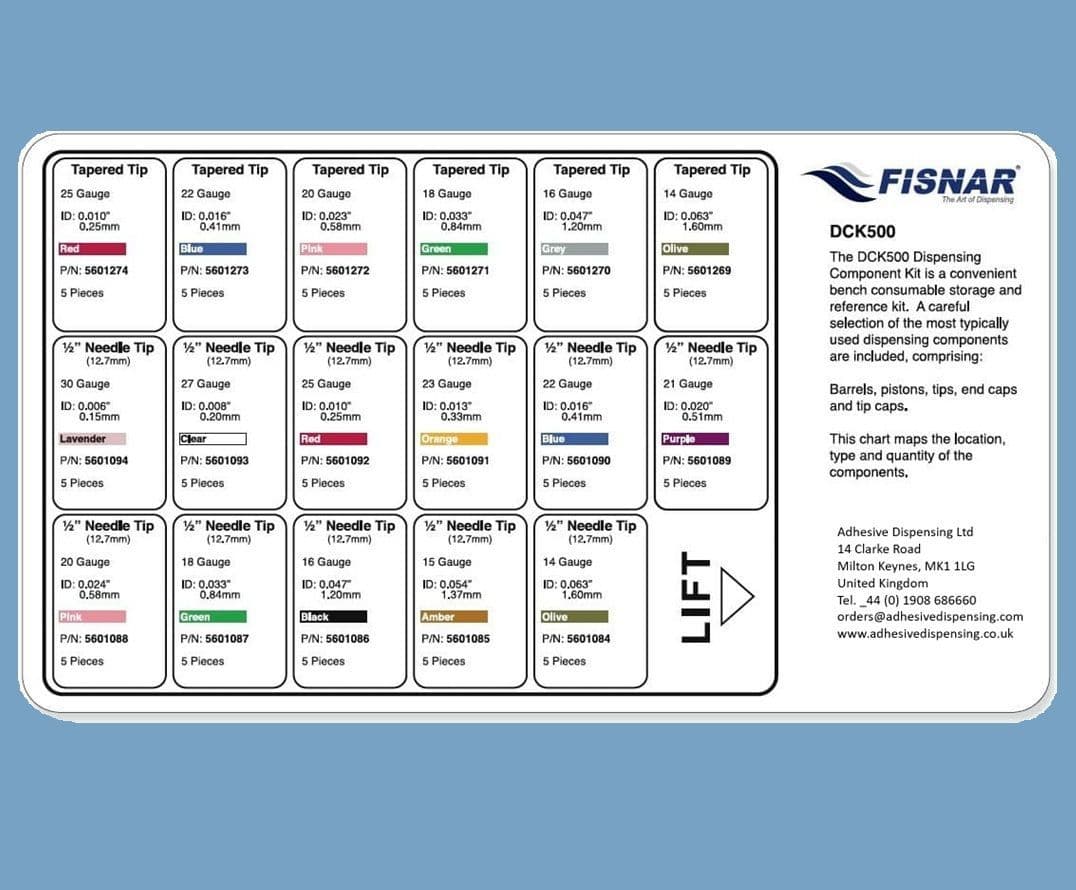

The Kit Contains:
Blunt End Tips
Material: Polypropylene, Stainless Steel
Gauge Sizes (¼" Long): 18, 22, 27 – 2 pieces each
Gauge Sizes (½" Long): 14, 15, 16, 18, 20, 21, 22, 23, 25, 27, 30 – 5 pieces each
Gauge Sizes (1.0" Long): 18, 22, 27 – 2 pieces each
Gauge Sizes (1.5" Long): 18, 22, 27 – 2 pieces each
Angled Bend Tips
Material: Polypropylene, Stainless Steel
Tube Length: 0.5" (12.7mm)
45° Bend Gauge Sizes: 18, 22, 27 – 2 pieces each
90° Bend Gauge Sizes: 18, 22, 27 – 2 pieces each
Tapered Tips
Material: Polyethylene
Standard Tapered Gauge Sizes: 14, 16, 18, 20, 22, 25 – 5 pieces each
UV‑Safe Black Tapered Gauge Sizes: 16, 18, 20 – 2 pieces each
PTFE‑Lined Tips
Material: PTFE, Polypropylene, Stainless Steel
Tube Length: 1" (25.4mm)
Gauge Sizes: 21, 25 – 2 pieces each
Flexible Tube Tips
Material: Polypropylene
Gauge Sizes (½" Long): 18, 22, 25 – 2 pieces each
Gauge Sizes (1.5" Long): 18, 22, 25 – 1 piece each
Brush Tips
Material: Polypropylene, Stainless Steel, Nylon
Length: 1.5" (38.1mm)
Gauge Sizes: 18, 22 – 1 piece each
Tip Caps
Material: Polypropylene
Colours: Black × 3, Natural × 3, Blue × 3
Barrels
Sizes: 3cc Natural × 1, 5cc Natural × 1, 10cc Natural × 1
Wiper Pistons
Sizes: 3cc White × 1, 5cc White × 1, 10cc White × 1
End Caps
Sizes: 3cc Orange × 1, 5cc Orange × 1, 10cc Orange × 1
Specification
- Tips & Barrels Maximum Pressure: 100 PSI
- Details: Silicone‑Free, Chloride‑Free
- Commodity Code: 39269097
- Brand: Fisnar
- Origin: China
- Pack Size: 144 Pieces
Use With
- Syringe barrels (3cc, 5cc, 10cc)
- Pneumatic dispensers and benchtop valves
- Luer lock bottles and fittings
Ideal for Dispensing
- Watery liquids, solvents, primers and activators
- UV‑cure adhesives, cyanoacrylates and anaerobics
- Gels, epoxies, SMT adhesives and inks
- Thick pastes, silicones, sealants and greases
Individual parts from this kit can also be ordered in sealed packs of 50, 500 or 1000 direct from stock. All parts are supplied in sealed boxes with labels and batch codes for full traceability.
Frequently Asked Questions (FAQ)
What is included in the DCK500 kit?
The kit contains 144 components including blunt‑end tips, angled tips, tapered tips, PTFE‑lined tips, flexible tube tips, brush tips, barrels, pistons, tip caps and end caps. It is designed as a complete evaluation set for testing dispensing performance across multiple materials and viscosities.
Which tip style is best for thick materials?
Tapered tips (14g–25g) are ideal for high‑viscosity materials such as silicones, gels, solder pastes, epoxies and sealants. Their conical design reduces back‑pressure and improves flow consistency.
Which tips are best for low‑viscosity fluids?
Blunt‑end stainless‑steel tips (20g–30g) provide precise control for solvents, primers, inks, activators and low‑viscosity adhesives. Their electro‑polished cannula ensures smooth, consistent flow.
What are angled tips used for?
45° and 90° angled tips are designed for dispensing in tight or obstructed areas, such as:
- Under components
- Inside housings
- Around corners
- Recessed assembly points
They improve reach and directional control.
What are PTFE‑lined tips used for?
PTFE‑lined tips are ideal for reactive, corrosive or moisture‑sensitive adhesives such as:
- Cyanoacrylates (CA)
- UV‑cure adhesives
- Anaerobics
- Low‑viscosity epoxies
The PTFE liner prevents chemical reaction with metal and helps reduce clogging.
What are flexible tube tips used for?
Flexible polypropylene tips can be manually bent or shaped to reach:
- Under components
- Inside housings
- Around corners
They are also safe for scratch‑sensitive surfaces and awkward geometries.
What are brush tips used for?
Brush tips dispense fluid and spread it simultaneously, making them ideal for:
- Primers and surface treatments
- Lubricants and oils
- Coatings and paints
- Inks and dyes
- Solvent wipe or coverage applications
They eliminate the need for a separate brush or applicator.
Are all components compatible with Luer lock syringes?
Yes. All tips, barrels and caps use the double‑helix Luer lock standard, ensuring secure, leak‑free attachment.
Are these components suitable for pneumatic dispensing?
Absolutely. All tips and barrels are industrial grade safe to 100 PSI, making them suitable for pneumatic dispensers, metering valves and automated XYZ robots.
Are the components silicone‑free?
Yes. All parts are silicone‑free and chloride‑free, ensuring compatibility with RTV silicones, UV adhesives, moisture‑sensitive materials and contamination‑critical processes.
Is this kit suitable for production environments?
Yes. The DCK500 is widely used for:
- Electronics assembly
- Medical device manufacturing
- Automotive modules
- General industrial bonding
- Prototype development
It provides everything needed to establish a reliable dispensing workflow.
Can I reorder individual parts from the kit?
Yes. All components are available individually in sealed packs of 50, 500 or 1000 pieces with full traceability.
