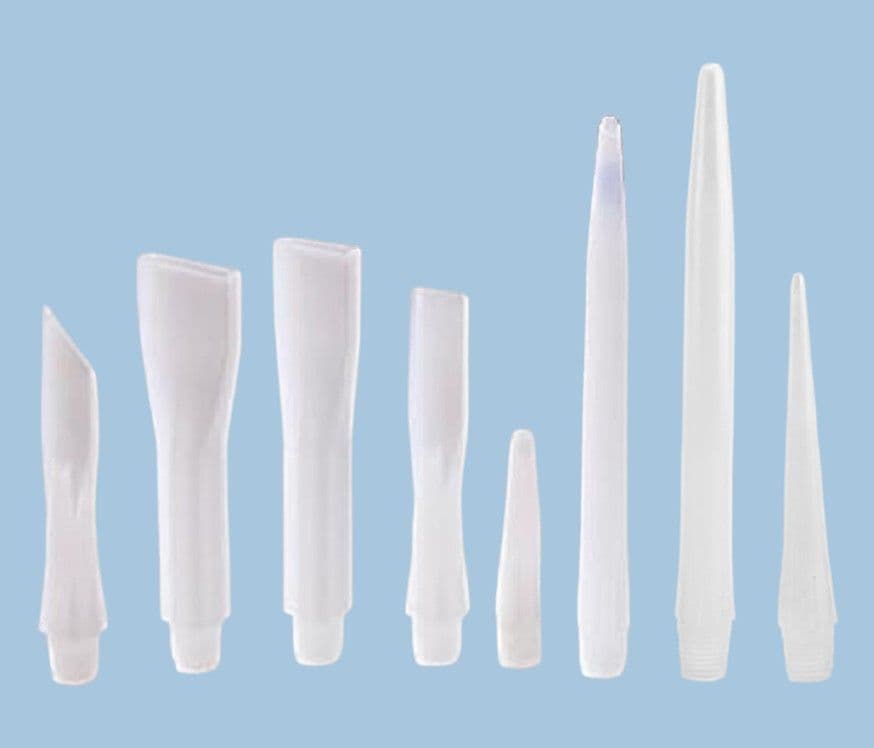

TS216‑HO‑HD 2.5" Standard Dispensing Nozzle - 1/16" Orifice, 1/4" NPT Thread
The TS216‑HO‑HD is a precision‑moulded 2.5‑inch long industrial dispensing nozzle designed for accurate, controlled application of high‑viscosity materials. Manufactured from high‑density polyethylene (HDPE), this nozzle offers higher rigidity compared to LDPE versions, ensuring cleaner, more consistent flow during demanding production tasks.
Featuring a 1/16" (0.063") outlet orifice and the industry‑standard 1/4" NPT male thread, it fits Techcon, Semco PPG, Nordson EFD cartridges and compatible dispensing valves. The nozzle can be easily cut down to adjust bead size or flow characteristics when required.
For use with 310ml or 400ml pre‑filled sealant or silicone cartridges that feature an external nozzle thread, pair this nozzle with the AD931‑296 adapter to ensure a secure, leak‑free connection.
Key Features
- 2.5" (63.5mm) length for controlled bead placement
- 1/16" (1.59mm) outlet ID for precise dispensing
- 1/4" NPT male thread fits Techcon, Semco PPG, Nordson EFD cartridges
- Rigid HDPE construction for improved stability and accuracy
- Can be cut‑to‑length design for custom flow control
- Industrial‑grade, silicone‑free materials
- Rated to 100 PSI for pneumatic dispensing systems
Compatible With
- Techcon cartridges
- Semco PPG cartridges
- Nordson EFD cartridges
- Selected dispensing valves
- 310ml & 400ml sealant cartridges (with AD931‑296 adapter)
Ideal for Dispensing
This tapered industrial nozzle is suitable for applying:
- Pastes & gels
- Resins & epoxies
- Sealants & silicones
- Greases & lubricants
- Mastics & potting compounds
- Many other assembly fluids
Perfect for manufacturing, aerospace, electronics, automotive, maintenance, and general assembly environments.
Packaging Options
Supplied in sealed, batch‑coded packs of: 10, 50, 500, 1000 Pieces
All packaging is clearly labelled with part number and batch code for full traceability.
Technical Specifications
- Part ID: TS216‑HO‑HD-1000
- Material: Polyethylene (HDPE)
- Colour: Natural
- Outlet ID: 1/16" (1.59mm)
- Total Length: 2.5" (63.5mm)
- Connection: 1/4" NPT (Male Thread)
- Maximum Pressure: 100 PSI
- Details: Industrial Grade, Silicone‑Free
- Commodity Code: 39269097
- Brand: Techcon
- Origin: USA
