Motor Driven DMP Auger Valve TS5000DMP-DCX
Product Code: TS5000DMP-DCX

Viscosities: 30k-1.3M CPS. Min Shot: 0.00003cc. Repeatability: ±0.20% Cycles Per Min Max: 240. Door Opening: Right
Rotary valves use a rotary feed screw (auger) to dispense fluid with a positive displacement action, allowing for ultra-precise control of the dispensing process. The unique design ensures that material is constantly present at the feed screw inlet, while the controlled rotation of the feed screw moves the material from the feed to the discharge point. Discrete control of the forward and reverse rotations of the feed screw controls the amount of material discharged.

The unique DMP (Disposable Material Path) valve (TS5000DMP) offers a choice of 3 different feed screw sizes (6, 8 and 16-pitch), all made of Delrin. The DMP Valve has a hinged doorway that opens easily so the disposable auger can be removed and replaced within seconds, while the line is still in operation, significantly reducing downtime and waste. The choice of left, right or centre hinge openings makes the valve suitable for mounting on most automated systems. This version door is right opening.

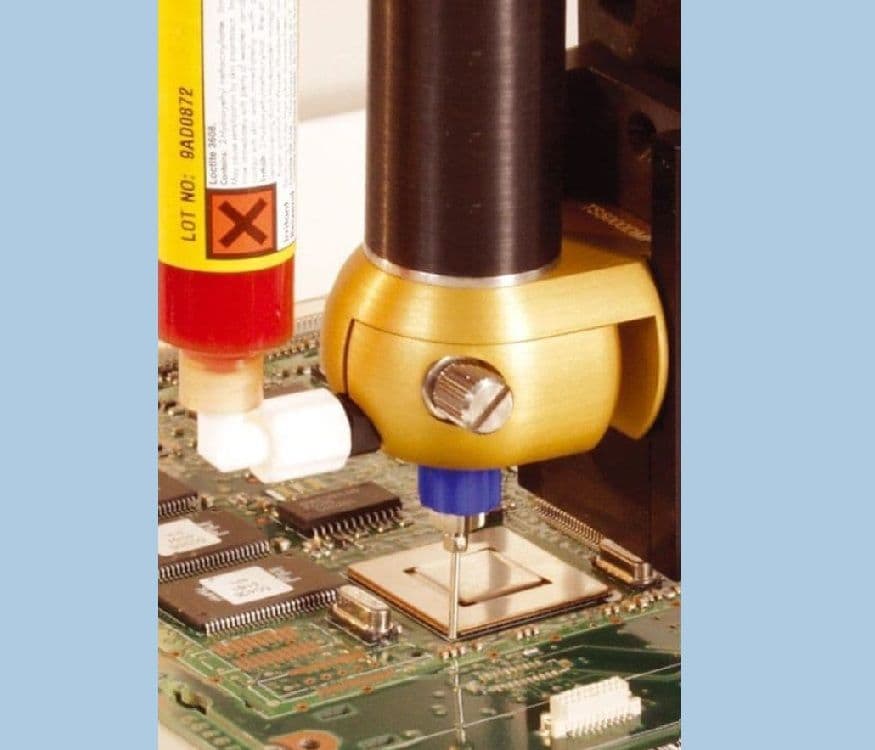

Typical applications include solder paste, die attach, surface mount adhesive, pre-mixed and frozen epoxies, chip encapsulation and dam writing.

Ideal for pastes, solder pastes, fluxes, SMT adhesives.
Precise and consistent shot sizes down to micro-litres.
Motor reverse capability for zero ooze/ drips.
Quick field replaceable wetted parts.
Adjustable dispense rates.
Zero cleanup with disposable feedpath components.
Wide variety of configurations.
Includes a 6 pitch, 8 pitch and 16 pitch feedpath.

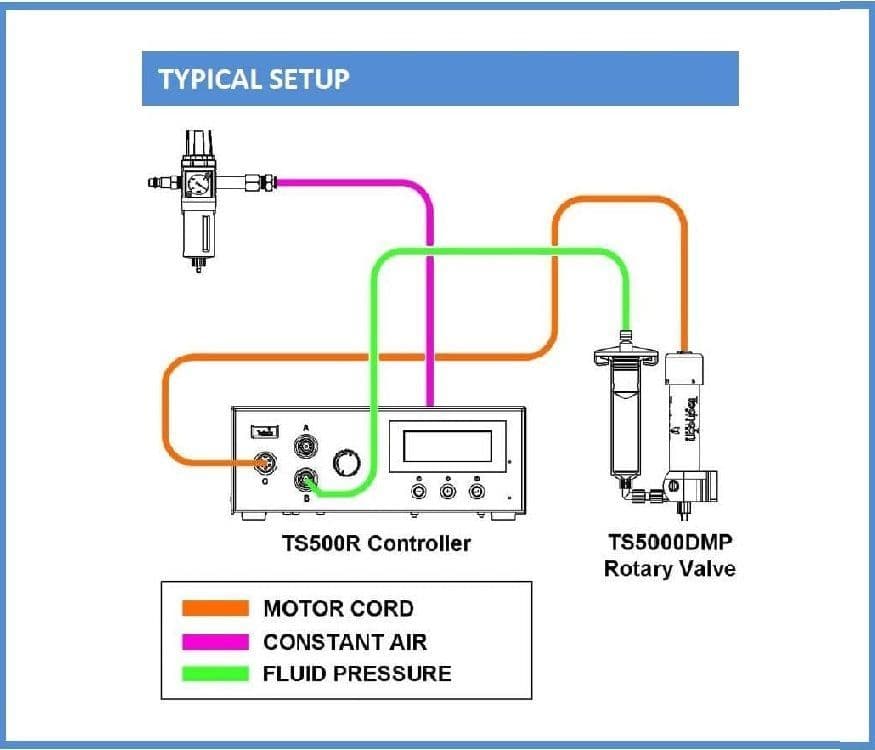

Simple to control using the TS500R digital controller


Part ID: TS5000DMP-DCX

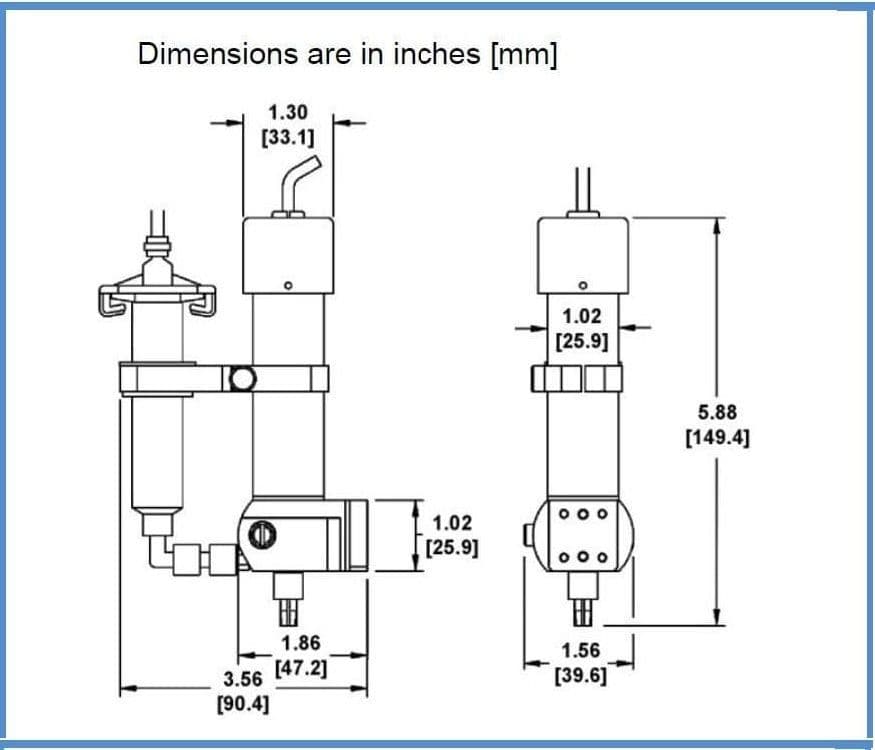

Size: 149mm L x 90mm W x 37
Weight: 350g
Wetted Parts: Delrin, Viton, Nylon
Viscosity Range: Min 30 CPS - 1.3 Million CPS
Min Shot Size: 0.020" (0.508mm) 0.00003cc
Repeatability: ±0.20%
Cycles Per Minute Max: 240
Max Fluid Pressure: 30 psi ( 2.1 Bar)
Material Inlet: Female Luer Lock
Material Outlet: Male Luer Lock
Valve Mounting: 1.0" Wide Channel


Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

Price: £2,115.85   Exc VAT
  • Product Brand:TSI
  • MPN: TS5000DMP-DCXLead Time: Usually ships 48-72 HoursWarranty: 1 Year
