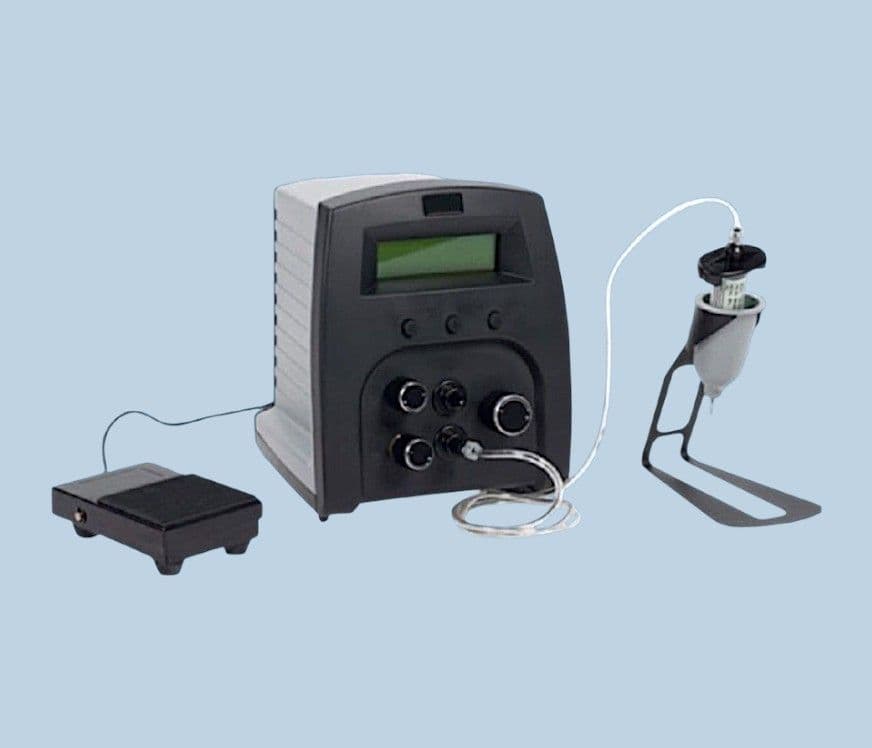

TS350 dispenser will dispense virtually any assembly fluid and adhesive or liquid paste, from thin, watery liquids and solvents to thick gels, silicones and brazing pastes. All are applied quickly, very accurately and with zero waste, hand fatigue or mess. This is a system available with 0-100 psi adjustable air regulator for most fluids and pastes or TS255 with a 0-15 psi regulator version for watery liquids, cyanoacrylates and solvents.
You hold the syringe like a pen, adjust the air pressure to suit your liquid being dispensed and press the foot pedal to dispense. When the foot pedal is released, the deposit instantly stops without drips or oozing. It is safe and simple to use and reduces time spent manually applying liquids. The TS350 range offer high precision control over watery liquids to thick pastes in a compact bench top system.
The TS350 has a bright LCD screen that displays time, vacuum, air pressure, time memory storage (up to 10) and shot counter. These high quality precision dispensers will make micro dots, large dots and controlled lines of almost any adhesive, paste, gel, epoxy and compound. Syringe sizes available range from 3cc to 55cc. Use supplied foot pedal or optional finger switch.
The TS350 features memory storage for up to 10 time settings, teach mode to reduce setup time and dual air output. A sophisticated bench dispenser to handle most adhesives and liquids. This compact dispenser sits on the bench and requires an air input from a compressor or factory mains supply. It comes with airline hose and fittings kit to make connection easy. It will work with any power supply and comes supplied with plugs for use in most countries. Includes a syringe stand, 10cc syringe and piston pack and tip kit selection.
Technical Specifications
Timer: 0.008 to 60 seconds
Output Pressure: Up to 100 psi (or 0-15 psi version)
Input Pressure: 80-100 psi
Size: 152 x 165 x 178mm
Weight: 1.2kg (2.6lb)
Input Voltage: 100-240 V AC
Warranty: 1 Year
Cycle Rate: Up to 1200 cycles/minute
Timing Tolerances: +/- 0.001%
Meets or Exceeds: CE, TUV-GS, NRTL
Commodity Code: 90289090
Brand: Techcon
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
