Model 1000T Digital Timed Syringe Dispenser 0-100 psi
Product Code: 1000T

0-100 psi air + vaccum suckback use with all fluids. 0.001-99 sec imer repeat dots or beads.
The 1000T is a simple to use timed syringe dispenser. It’s light weight and compact size makes this the ideal bench top dispensing solution for all your gluing, solder paste application and most other materials viscous or watery.

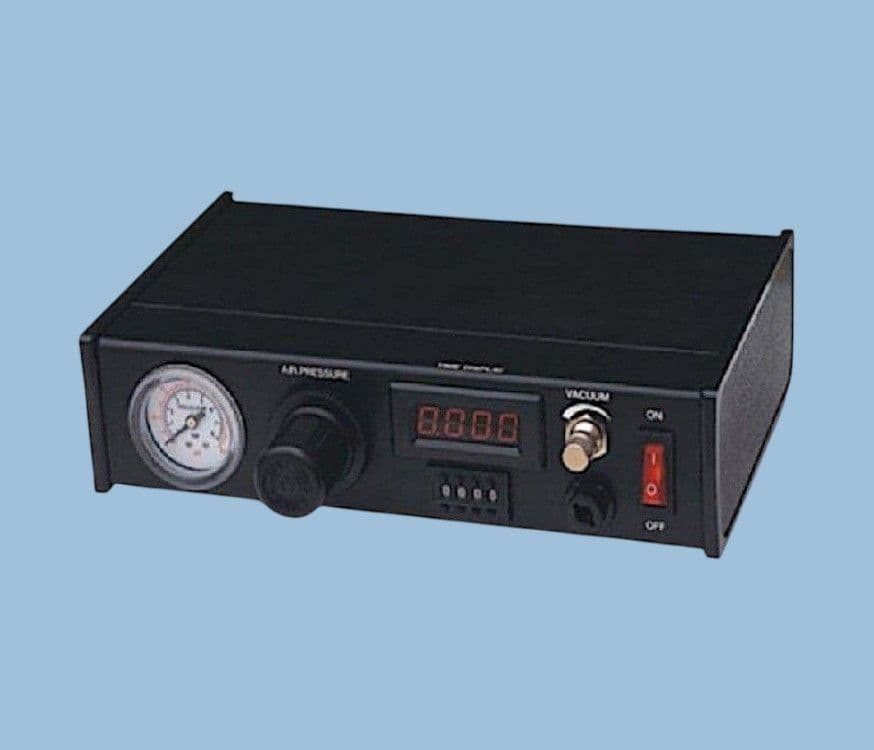

Features a super bright four-digit LED timer display. Teach function allows the user to find a deposit size quickly without too much adjustment. Its simplified construction and operation makes it easy for even someone who has never used a dispenser before. You hold the syringe like a pen, adjust the air pressure to suit the liquid being dispensed then press the foot pedal to apply. When the pedal is released, the deposit instantly stops without drips or oozing. It is safe and simple to use and reduces time spent manually applying liquids. The dispenser is supplied with a user guide.

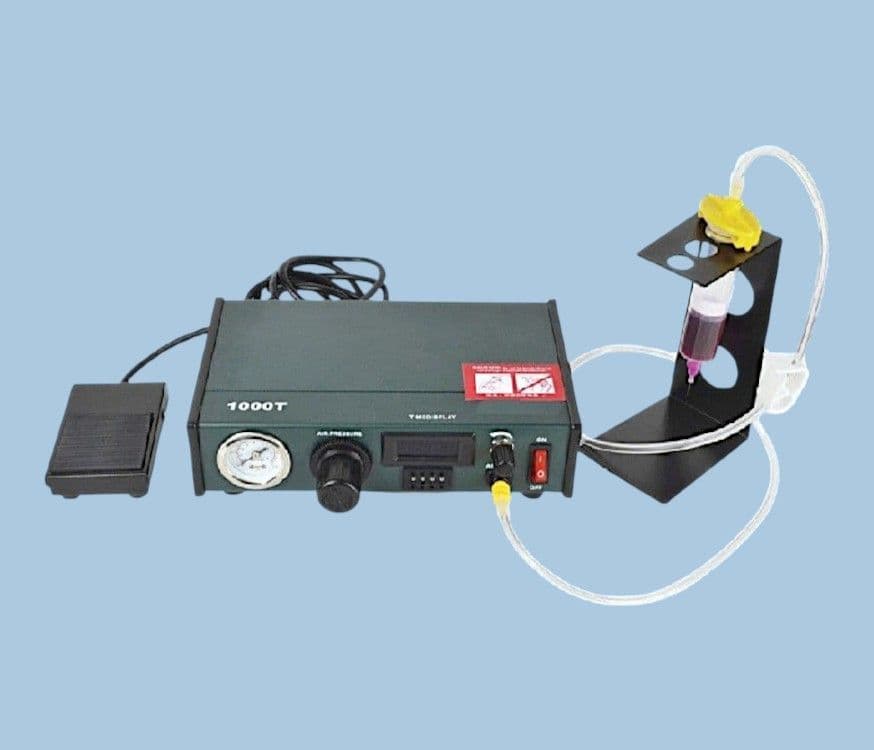

The unit comes with three modes; manual, timing and cycling. Features vacuum suck-back to prevent drips of watery liquids. Supplied complete with (5) clear barrels, (5) wiper pistons, (5) end caps, (5) tip caps, (50) assorted tips, (1) 3ft long adapter assembly hose, (1) foot switch, (1) finger switch, (1) power cord, instruction guide and manuals. Covered by a 1 year warranty. CE certified product.

Easy to use switchable numbers for adjusting timer or using it on continuous mode. Classic dispenser design. An adjustable vacuum provides suck-back to the tip to prevent watery liquids from dripping. We recommend the use of an inline filter on the air adapter to the syringe when dispensing low viscosity fluids. The display shows the timer which can be adjusted for repeat deposits, down to micro-dots.

This compact dispenser sits on the bench and requires an air input from any compressor or factory mains supply. It comes with airline hose and fittings kit to make connection easy. Ready to use out of the box.

Technical Specifications
Timer: 0.001 - 99.99 seconds
Output Pressure: Up to 100 psi
Input Pressure: 80-100 psi
Size: 246 x 145 x 65 mm
Weight: 2.9 kg
Input Voltage: 220 V AC
Internal Voltage: 24 V DC
Consumed Power: <15W
Warranty: 1 Year
Cycle Rate: Up to 600 cycles/minute
Timing Repeatability: ±0.0005%
Meets or Exceeds: CE Approved

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

Price: £268.64   Exc VAT
  • Product Brand:ADL
  • Lead Time: Ships within 24 HoursCycle Rate: Up to 600 cycles/ minuteVoltage: 220 V ACDimensions: 246 x 145 x 65 mmAir Pressure: Up to 100 psiTime Range: 0.001 - 99.99 secondsWarranty: 1 Year
