Mixer Nozzle Twist Lock 5mm ID x 16 Elements MBQX05-16L

Static Mixer Nozzle MBQX 05-16L Sulzer Mixpac Medmix Adhesive Dispensing Ltd

Mixer Nozzle Twist Lock 5mm ID x 16 Elements MBQX05-16L

Product Code: MBQX05-16L-10

ID: 5.3mm. Elements: 16. Length: 90.7mm. Volume: 1.72ml. For 50ml 4:1/ 10:1 Cartridges.

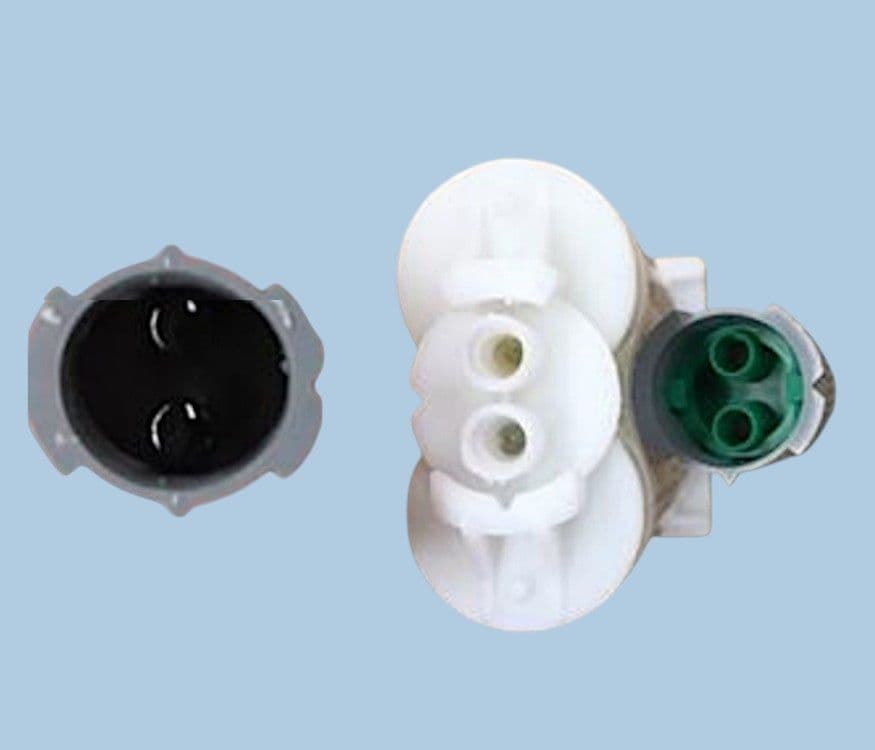

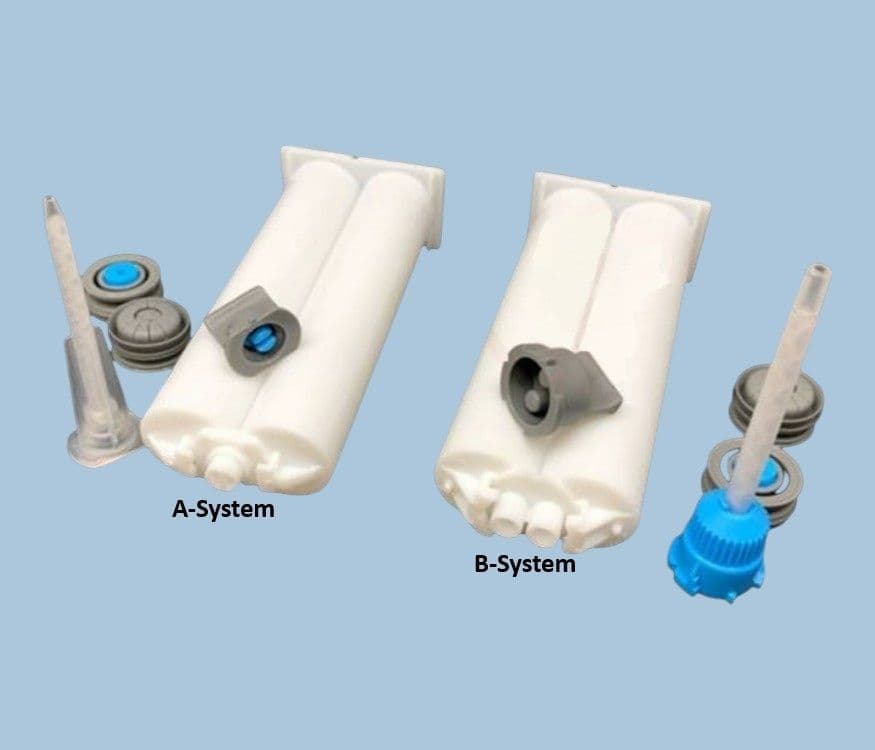

Twist lock inlet, square body static mixer nozzle for 50ml and 75ml B system dual component cartridges. Luer shape tip outlet. These mixer nozzles are suitable for all 4:1/10:1 version two-component materials. They have orange elements and are constructed of high grade polypropylene. High quality mixer nozzles for use with twin cartridges.

All items are industrial grade safe and silicone free. 5.3mm ID x 16 mixing elements.Use with 4:1/ 10:1 ratio cartridges. Quadro style square mixer. Luer end allows push on attachment of all dispensing tips.

Part ID: MBQX 05-16L - 116063
Material: Polypropylene
Colour: Natural Outer, Orange Elements, Grey Cap
Inner Diameter: 5.3mm
Nozzle Length: 90.7mm
No. Of Mix Elements: 16
Volume: 1.72ml
Details: Industrial Grade Safe, Silicone Free
Commodity Code: 39269097

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

Pack Size
