Mixer Nozzle Twist Lock 3mm ID x 16 Elements MBHX03-16D

Static Mixer Nozzle MBHX 03-16D 4:1 10:1 B System Sulzer Mixpac Adhesive Dispensing Ltd

Mixer Nozzle Twist Lock 3mm ID x 16 Elements MBHX03-16D

Product Code: MBHX03-16D-10

ID: 3.2mm. Elements: 16. Length: 73.0mm. Volume: 0.59ml. For 50ml 4:1/10:1 Cartridges.

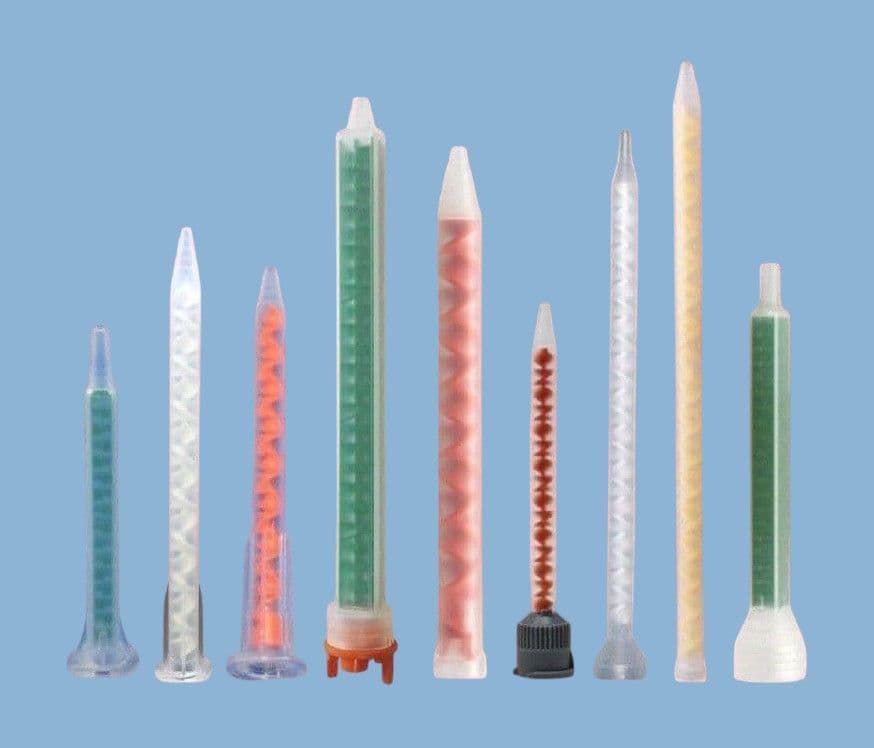

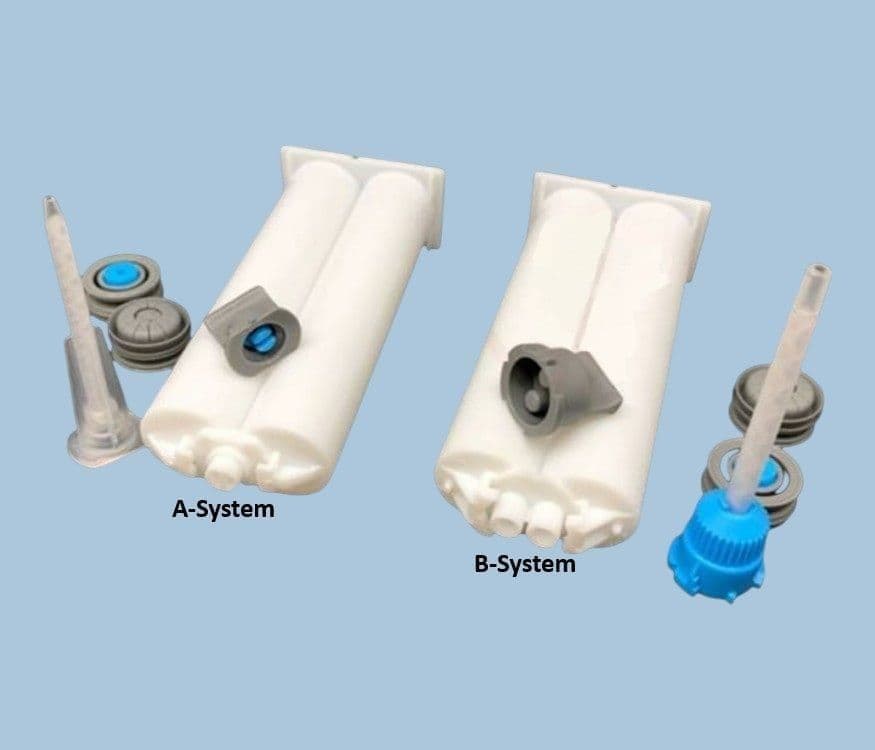

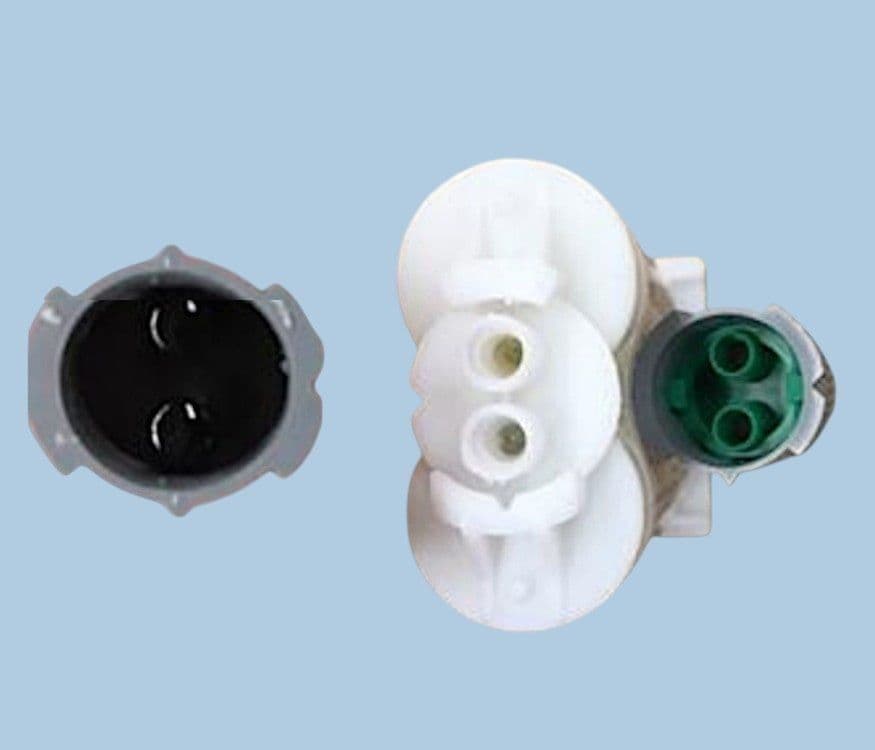

Twist lock inlet, helical static mixer nozzle for 50ml and 75ml B-system dual component cartridges. Straight outlet for faster flow rates. These mixer nozzles are suitable for all two-component materials. They have orange elements and are constructed of high-grade polypropylene. High quality mixer nozzles for use with twin cartridges.

All items are industrial grade safe and silicone free. 3.2mm ID x 16 mixing elements. Use with 4:1/ 10:1 ratio B-system type dual component cartridges.

Part ID: MBHX 03-16D
Material: Polypropylene
Colour: Natural Outer, Orange Elements, Grey Cap
Inner Diameter: 3.2mm
Outer Diameter: 4.8mm
Nozzle Length: 73.0mm
No. Of Mix Elements: 16
Volume: 0.59ml
Details: Industrial Grade Safe, Silicone Free
Commodity Code: 39269097
Brand: Adhesive Dispensing Ltd

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
