Mixer Nozzle Twist Lock 3mm ID x 12 Elements MBH03-12D

Static Mixer Nozzle Bayonet MBH 03-12D Sulzer Mixpac MedMix Adhesive Dispensing Ltd

Mixer Nozzle Twist Lock 3mm ID x 12 Elements MBH03-12D

Product Code: MBH03-12D-10

ID: 3.2mm. Elements: 12. Length: 64mm. Volume: 0.49ml. For 50ml 1:1/2:1 Cartridges.

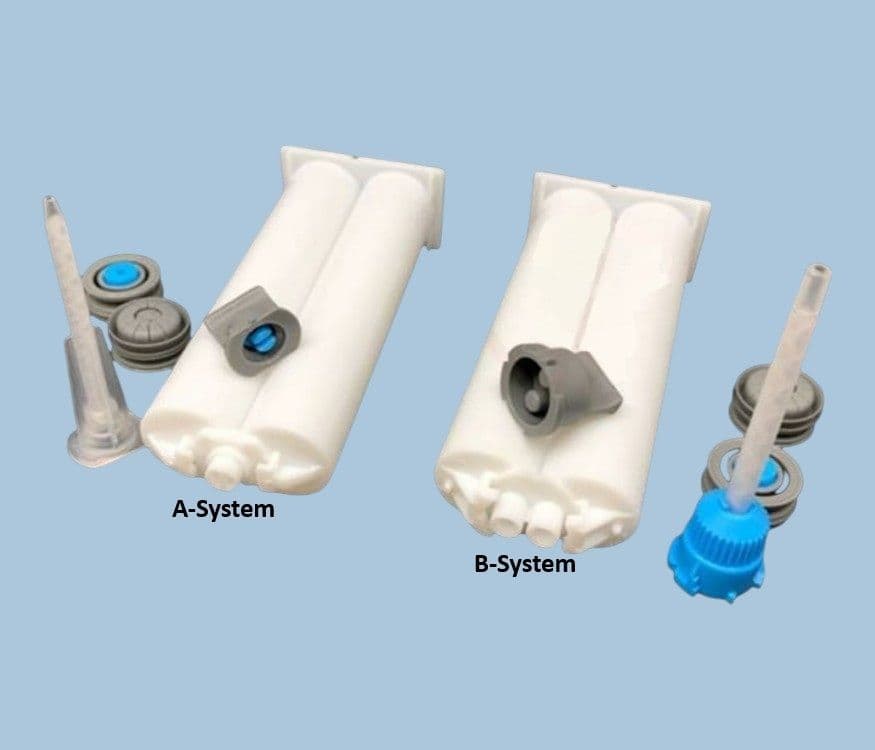

Twist lock inlet, helical static mixer nozzle for 50ml and 75ml B system dual component cartridges. Open outlet for faster flow rates. These mixer nozzles are suitable for all two-component materials. They have white elements and are constructed of high grade polypropylene. High quality mixer nozzles for use with twin cartridges.

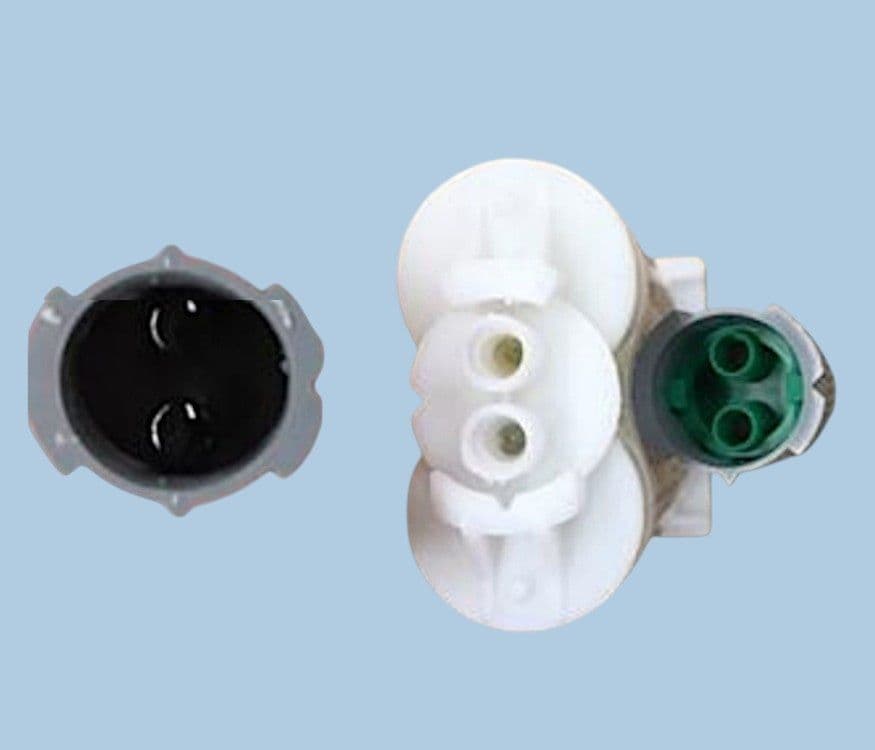

All items are industrial grade safe and silicone free. 3.2mm ID x 12 mixing elements. B-system utilising separated outlet ports to that prevent cross-contamination and allow for efficient resealing of the cartridge. This version has a straight open end. Use this mixer nozzle for 1:1 and 2:1 mix ratio B-system cartridges only.

Part ID: MBH03-12D - 116457
Material: Polypropylene
Colour: Natural Outer, White Elements, Grey Cap
Inner Diameter: 3.2mm
Nozzle Length: 58.0mm
No. Of Mix Elements: 12
Volume: 0.49ml
Maximum Pressure: 100 PSI
Details: Industrial Grade Safe, Silicone Free
Commodity Code: 39269097
Origin: Europe
Brand: MedMix Sulzer Mixpac

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
