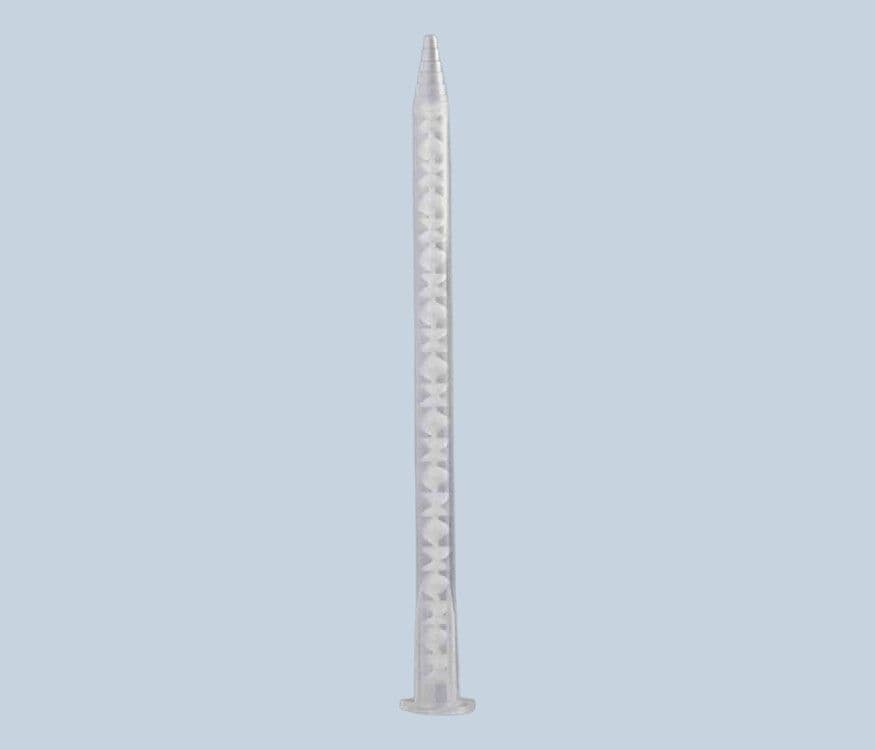

Mixer Nozzle Bayonet 6mm ID x 21 EL ADMA6.3-21S

Mixer Nozzle Bayonet 6.3mm ID x 21 Element ADMA6.3-21S Adhesive Dispensing Ltd
Mixer Nozzle Bayonet 6.3mm ID x 21 Element ADMA6.3-21S Adhesive Dispensing Ltd Mixer Nozzle Bayonet 6.3mm ID x 21 Element ADMA6.3-21S Adhesive Dispensing Ltd Mixer Nozzle Bayonet 6.3mm ID x 21 Element ADMA6.3-21S Adhesive Dispensing Ltd
Mixer Nozzle Bayonet 6mm ID x 21 EL ADMA6.3-21S
Product Code: ADMA6.3-21S-10

ID: 6.3mm. Elements: 21. Length: 153mm. Volume: 3.6ml. For 50ml 1:1/2:1 Cartridges.

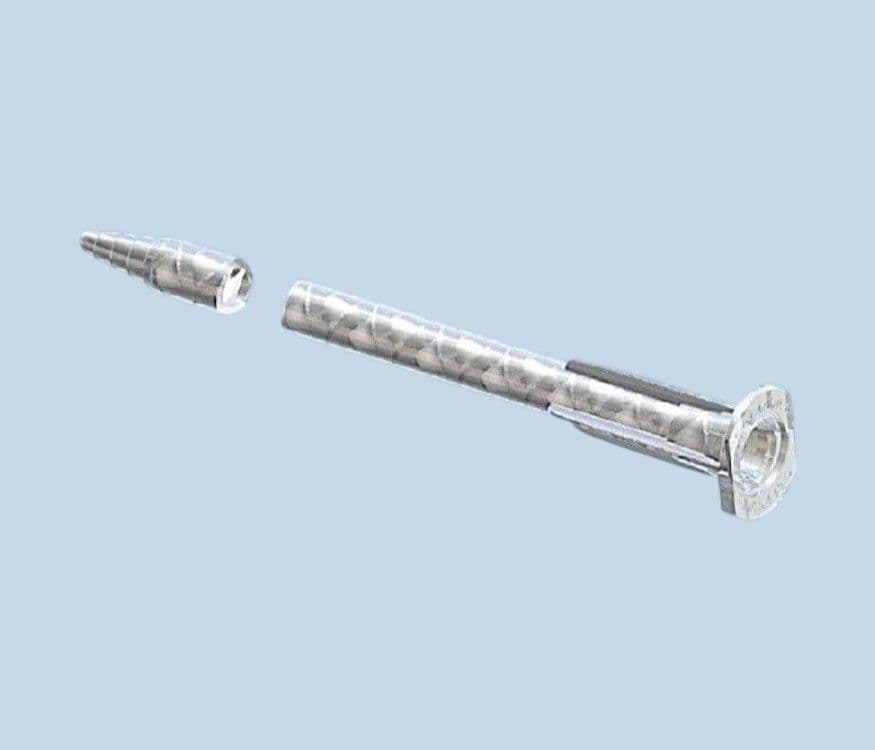

Bayonet inlet, helical static mixer nozzle for 50ml, 75ml and 100ml dual component cartridges. Stepped outlet that can be cut back to increase orifice size and increase flow rates. These mixer nozzles are suitable for all two-component materials. They have white elements and are constructed of high grade polypropylene. High quality mixer nozzles for use with twin cartridges.

Most suited to 1:1 (Part 451000) and 2:1 (Part 452013) 50ml dual cartridges, 1:1 (Part 475100) 75ml dual cartridges and 1:1 (Part 100011) 100ml dual cartridges. All items are industrial grade safe and silicone free. 6.3mm ID x 21 mixing elements. In packs of 10, 50, 100, 250, 500 or 1000 nozzles.
Part ID: ADMA6.3-21S
Material: Polypropylene
Colour: Natural Outer, White Elements
Inner Diameter: 6.3mm
Outer Diameter: 9mm
Nozzle Length: 153mm
No. Of Mix Elements: 21
Volume: 3.57ml
Outlet: Stepped
Attachment: Bayonet
Maximum Pressure: 100 PSI
Details: Industrial Grade Safe, Silicone Free
Commodity Code: 39269097
Brand: Adhesive Dispensing Ltd
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
