Mixer Nozzle Bayonet 6mm ID x 17 Element MAH06-17T

Mix Nozzle 6.3mm ID MA6.3-17S MAH06-17T Adhesive Dispensing Sulzer Mixpac
Mix Nozzle 6.3mm ID MA6.3-17S MAH06-17T Adhesive Dispensing Sulzer Mixpac Mix Nozzle 6.3mm ID MA6.3-17S MAH06-17T Adhesive Dispensing Sulzer Mixpac Mix Nozzle 6.3mm ID MA6.3-17S MAH06-17T Adhesive Dispensing Sulzer Mixpac
Dispensing tips adhesive catalog luer lok

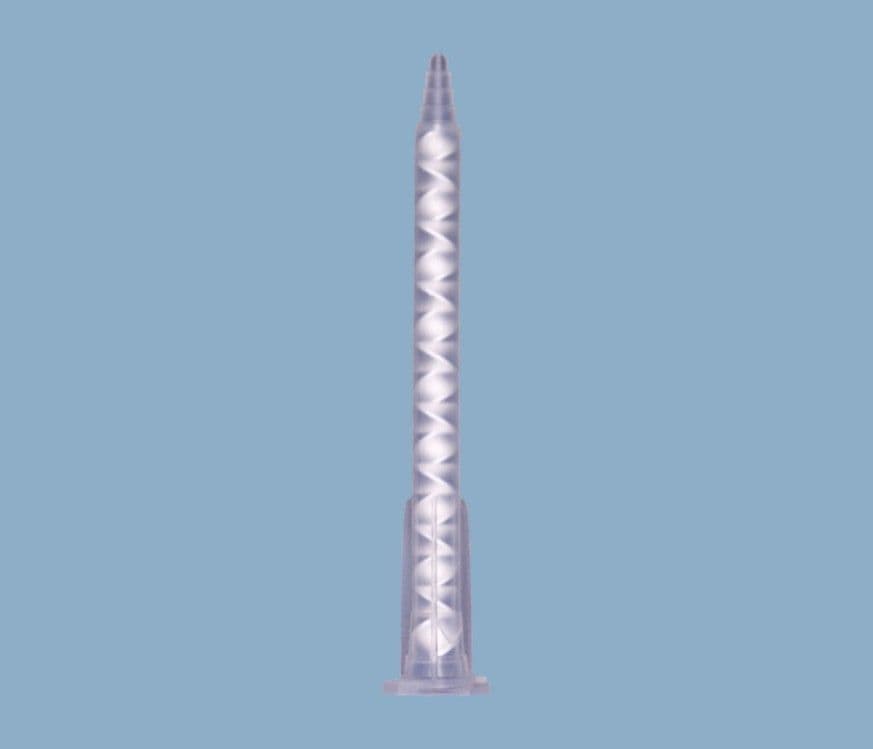

Mixer Nozzle Bayonet 6mm ID x 17 Element MAH06-17T
Product Code: MAH06-17T-10

ID: 6.3mm. Elements: 17. Length: 128mm. Volume: 2.9ml. For 50ml/75ml/100ml 1:1/2:1.

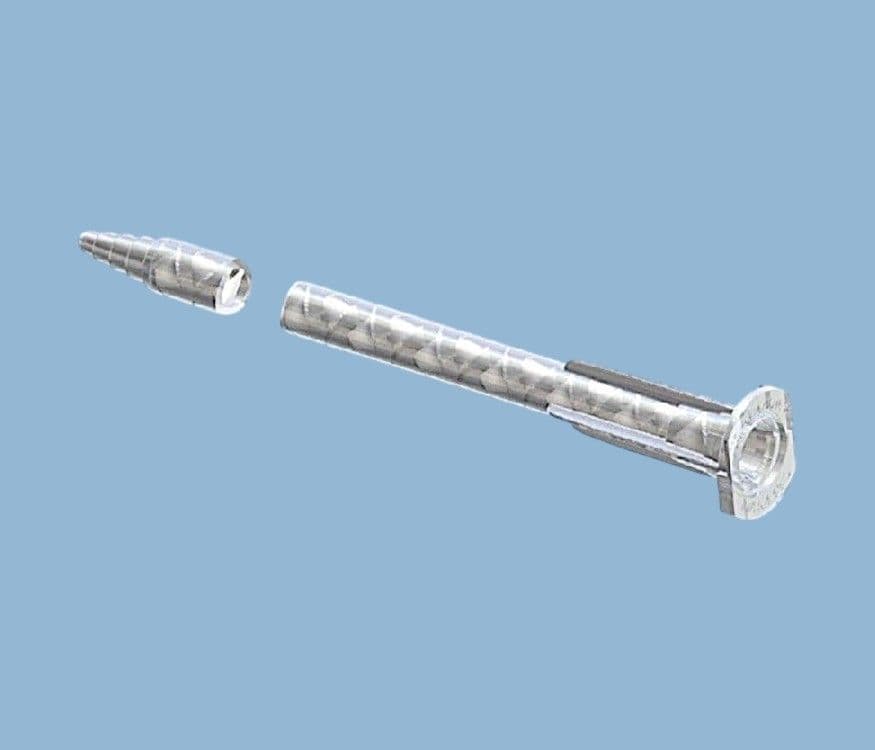

Bayonet inlet, helical static mixer nozzle for 50ml and 75ml dual component cartridges. Stepped outlet that can be cut back to increase orifice size and increase flow rates. These mixer nozzles are suitable for all two-component materials. They have white elements and are constructed of high grade polypropylene. High quality mixer nozzles for use with twin cartridges.

Most suited to 1:1 50ml, 2:1 50ml, 1:1 75ml and 1:1 100ml A-System dual cartridges. All items are industrial grade safe and silicone free. 6.3mm ID x 17 mixing elements. In packs of 10, 50, 100, 250, 500 or 1000 nozzles.
Part ID: MA6.3-17T - MAH 06-17T - 102378
Material: Polypropylene
Colour: Natural Outer, White Elements
Inner Diameter: 6.3mm
Outer Diameter: 9mm
Nozzle Length: 128mm
No. Of Mix Elements: 17
Volume: 2.9ml
Details: Industrial Grade Safe, Silicone Free
Commodity Code: 39269097
Brand: Sulzer Mixpac Medmix
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Pack Size Options
Price: £6.00   Exc VAT
  • Product Brand:Sulzer Mixpac Medmix
  • MPN: MAH06-17T-10Lead Time: Ships In 24 Hours - Stock ItemPack Size: 50
Write a Review

Write an online review and share your thoughts with other shoppers!

Be the first to review this product

These bayonet style mixers are best used with 1:1 or 2:1 ratio 50ml dual cartridges. (Our part codes 451000 1:1 or 452013 2:1). The resin and catalyst are fed into the mixer from 2 separate outlets ensuring they only contact when in the nozzle. The nozzles have a tapered end for precision dispensing
