Mixer Nozzle Bayonet 6mm ID x 12 Elements MAH 06-12S

Sulzer Mix Nozzle 6.3mm ID x 12 MAH 06-12T MA6.3-12S Adhesive Dispensing Ltd
Sulzer Mix Nozzle 6.3mm ID x 12 MAH 06-12T MA6.3-12S Adhesive Dispensing Ltd Sulzer Mix Nozzle 6.3mm ID x 12 MAH 06-12T MA6.3-12S Adhesive Dispensing Ltd Sulzer Mix Nozzle 6.3mm ID x 12 MAH 06-12T MA6.3-12S Adhesive Dispensing Ltd
Dispensing tips adhesive catalog luer lok
Mixer Nozzle Bayonet 6mm ID x 12 Elements MAH 06-12S
Product Code: MAH06-12S-10

ID: 6.3mm. Elements: 12. Length: 97mm. Volume: 2.1ml. For 50ml 1:1/2:1 Cartridges.

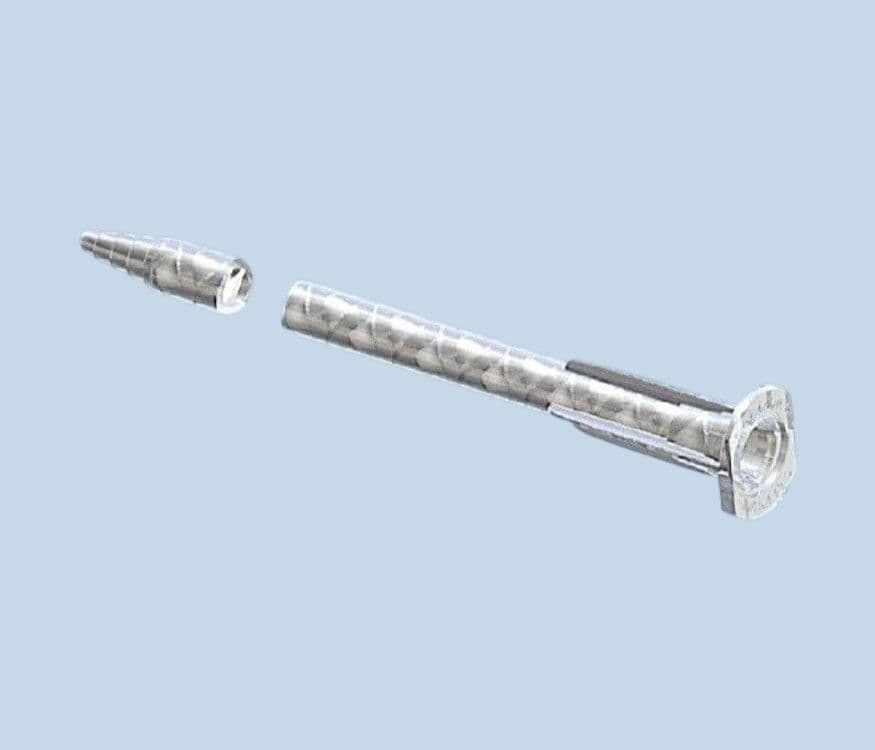

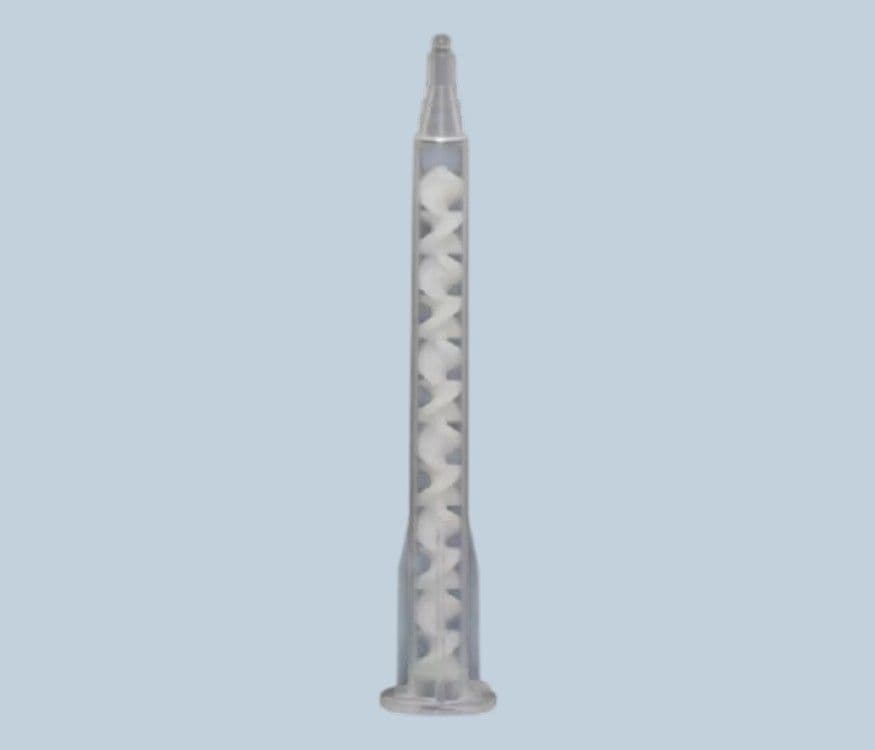

Bayonet inlet, helical static mixer nozzle for 50ml, 75ml and 100ml dual component A-series cartridges. Stepped outlet that can be cut back to increase orifice size and increase flow rates. These mixer nozzles are suitable for all two-component materials. They have white elements and are constructed of high grade polypropylene. High quality mixer nozzles for use with twin cartridges.

Most suited to 1:1 (Part # 451000) and 2:1 (Part # 452013) 50ml dual cartridges, 1:1 (Part # 475100) 75ml dual cartridges and 1:1 (Part # 100011) 100ml dual cartridges. All items are industrial grade safe and silicone free. 6.3mm ID x 12 mixing elements. In packs of 10, 50, 100, 250, 500 or 1000 nozzles.
Part ID: MA6.3-12S - MAH 06-12S - 102380
Material: Polypropylene
Colour: Natural Outer, White Elements
Inner Diameter: 6.3mm
Outer Diameter: 9mm
Nozzle Length: 97mm
No. Of Mix Elements: 12
Volume: 2.08ml
Maximum Pressure: 100 PSI
Details: Industrial Grade Safe, Silicone Free
Commodity Code: 39269097
Brand: Medmix Sulzer Mixpac
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Pack Size Options
Price: £6.50   Exc VAT
  • Product Brand:Sulzer Mixpac Medmix
  • MPN: MAH06-12S-10Lead Time: Ships In 24 Hours - Stock ItemPack Size: 10
Write a Review

Write an online review and share your thoughts with other shoppers!

Be the first to review this product

These bayonet style mixers are best used with 1:1 or 2:1 ratio 50ml dual cartridges. (Our part codes 451000 1:1 or 452013 2:1). The resin and catalyst are fed into the mixer from 2 separate outlets ensuring they only contact when in the nozzle. The nozzles have a tapered end for precision dispensing
