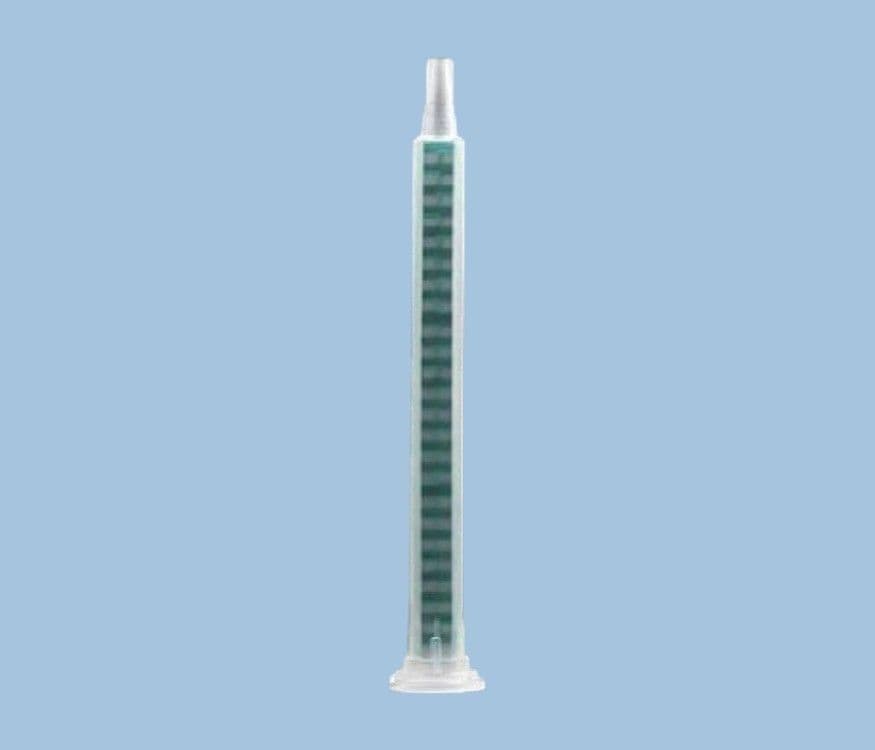

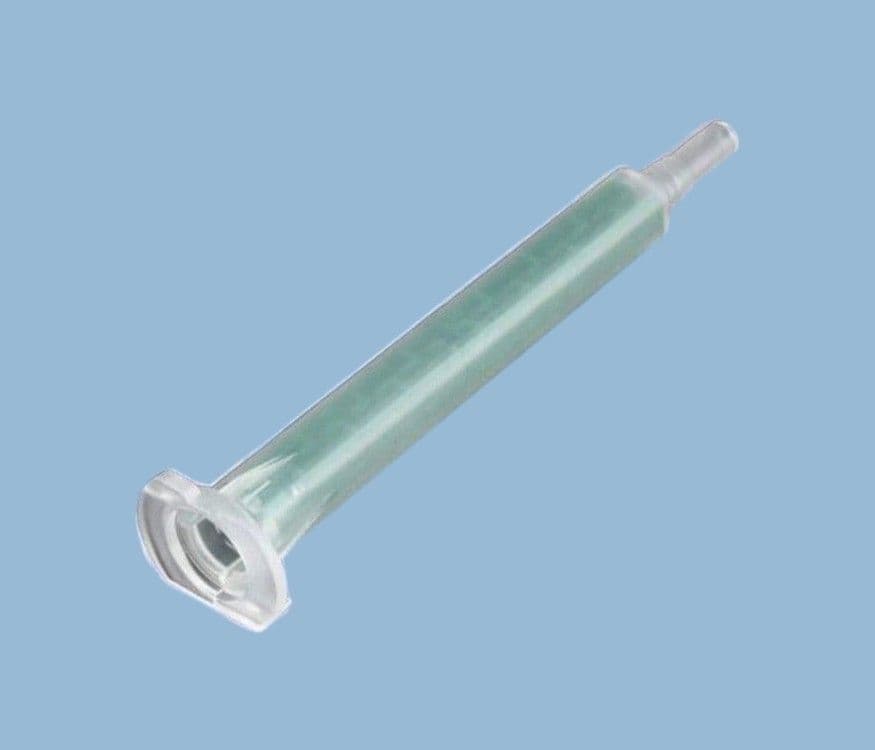

Mixer Nozzle Bayonet 5mm ID x 24 Elements ADMF6-24

ADMF6-24 Mix Nozzle Square Quadro Bayonet Luer Adhesive Dispensing Ltd
ADMF6-24 Mix Nozzle Square Quadro Bayonet Luer Adhesive Dispensing Ltd ADMF6-24 Mix Nozzle Square Quadro Bayonet Luer Adhesive Dispensing Ltd ADMF6-24 Mix Nozzle Square Quadro Bayonet Luer Adhesive Dispensing Ltd ADMF6-24 Mix Nozzle Square Quadro Bayonet Luer Adhesive Dispensing Ltd
Mixer Nozzle Bayonet 5mm ID x 24 Elements ADMF6-24
Product Code: ADMF6-24-10

ID: 5.0mm. Elements: 24. Length: 115mm. Volume: 1.9ml. For 50ml 1:1/2:1 Dual Cartridges.
Static mixers are used for dispensing adhesives from two part (dual) plastic cartridges. This mixer nozzle works with 50ml, 75ml & 100ml size dual cartridges with a mix ratio of 1:1, 2:1, 4:1 and 10:1. This range of products is attached using a “bayonet style” connection. These products can be used with epoxy, polyurethane, silicone, and a variety of other adhesives and sealants.

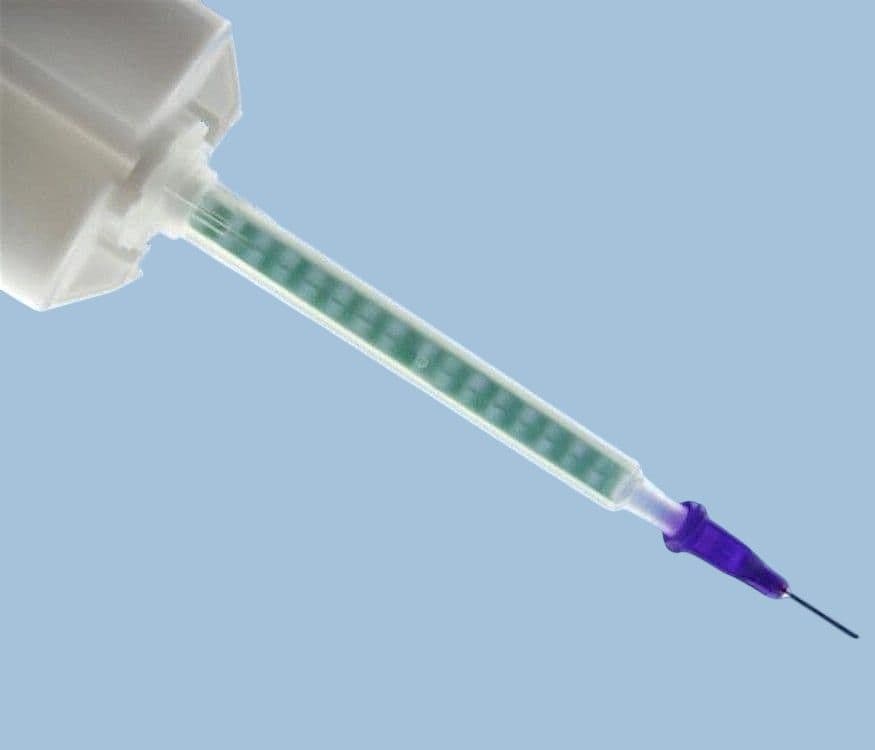

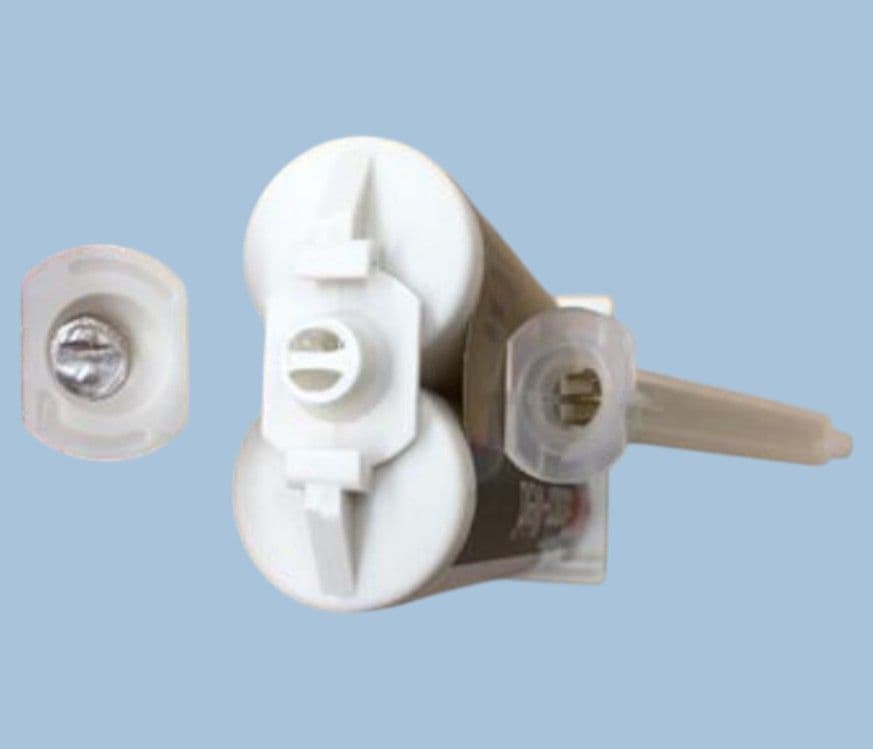

Bayonet inlet, square static mixer nozzle for 50ml, 75ml and 100ml dual component cartridges. Slip outlet that can be used with luer lock dispense tips to adjust shot size. These mixer nozzles are suitable for all two-component materials. They have green elements and are constructed of high grade polypropylene. High quality mixer nozzles for use with twin cartridges.

All items are industrial grade safe and silicone free. In sealed packs of 10, 50, 100, 250, 500 or 1000 nozzles.

Part ID: ADMF6-24
Material: Polypropylene
Colour: Natural Outer, Green Elements
Inner Diameter: 5mm
Outer Diameter: 8mm
Nozzle Length: 115mm
No. Of Mix Elements: 24
Volume: 1.9ml
Maximum Pressure: 100 PSI
Commodity Code: 39269097
Brand: ADL

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

Pack Size Options
Price: £5.50   Exc VAT
  • Product Brand:Adhesive Dispensing Ltd
  • MPN: ADMF6-24-100Lead Time: Ships in 24 Hours - Stock ItemPack Size: 1000
