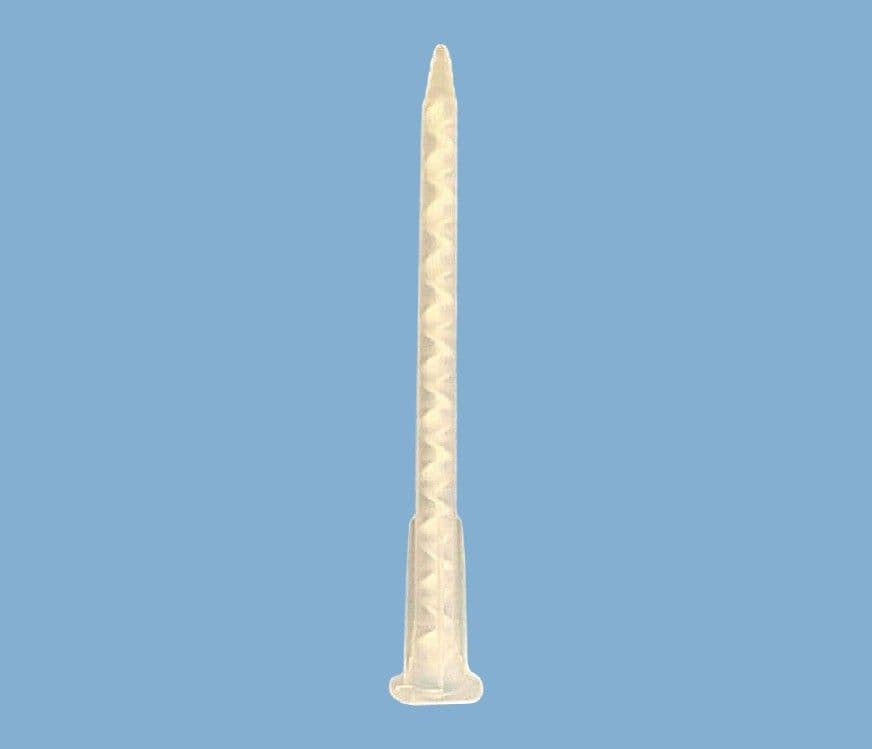

Mixer Nozzle Bayonet 5mm ID x 21 EL MAH 05-21S

Sulzer Mix Nozzle Bayonet 5.4mm ID x 21 MAH 05-21T Adhesive Dispensing Ltd
Sulzer Mix Nozzle Bayonet 5.4mm ID x 21 MAH 05-21T Adhesive Dispensing Ltd Sulzer Mix Nozzle Bayonet 5.4mm ID x 21 MAH 05-21T Adhesive Dispensing Ltd Sulzer Mix Nozzle Bayonet 5.4mm ID x 21 MAH 05-21T Adhesive Dispensing Ltd
Mixer Nozzle Bayonet 5mm ID x 21 EL MAH 05-21S
Product Code: MAH05-21S-10

ID: 5.4mm. Elements: 21. Length: 124mm. Volume: 2.0ml. For 50ml 1:1/2:1 Cartridges.

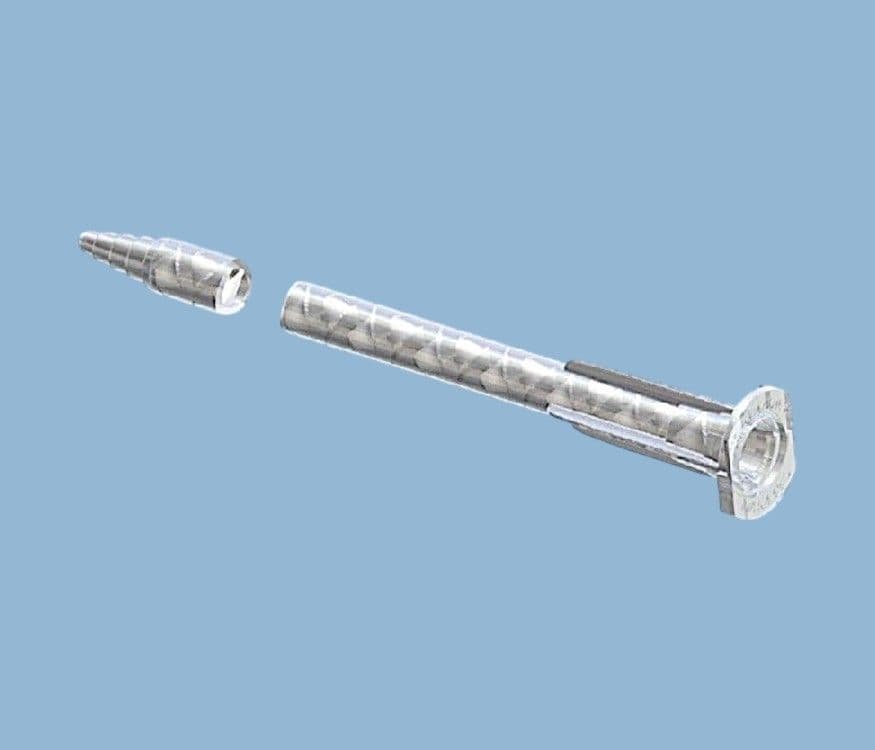

Bayonet inlet, helical static mixer nozzle for 50ml, 75ml and 100ml dual component A-system type cartridges. Stepped outlet that can be cut back to increase orifice size and increase flow rates. These mixer nozzles are suitable for all two-component materials. They have white elements and are constructed of high grade polypropylene. High quality mixer nozzles for use with twin cartridges. Supplied in sealed packs.

All items are industrial grade safe and silicone free. 5.4mm ID x 21 mixing elements. Use with 50ml 1:1 and 2:1 ratio bayonet style dual cartridges.
Part ID: MAH 05-21T - 102373
Material: Polypropylene
Colour: Natural Outer, White Elements
Inner Diameter: 5.4mm
Outer Diameter: 8mm
Length: 124mm
Tip Outlet: 1.5mm
Elements: 13
Retained Volume: 2.0ml
Details: Industrial Grade, Silicone Free
Commodity Code: 39269097
Brand: Sulzer Mixpac Medmix
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Pack Size Options
Price: £6.50   Exc VAT
  • Product Brand:Sulzer Mixpac Medmix
  • MPN: MAH05-21S-10Lead Time: 1-2 WeeksPack Size: 10
