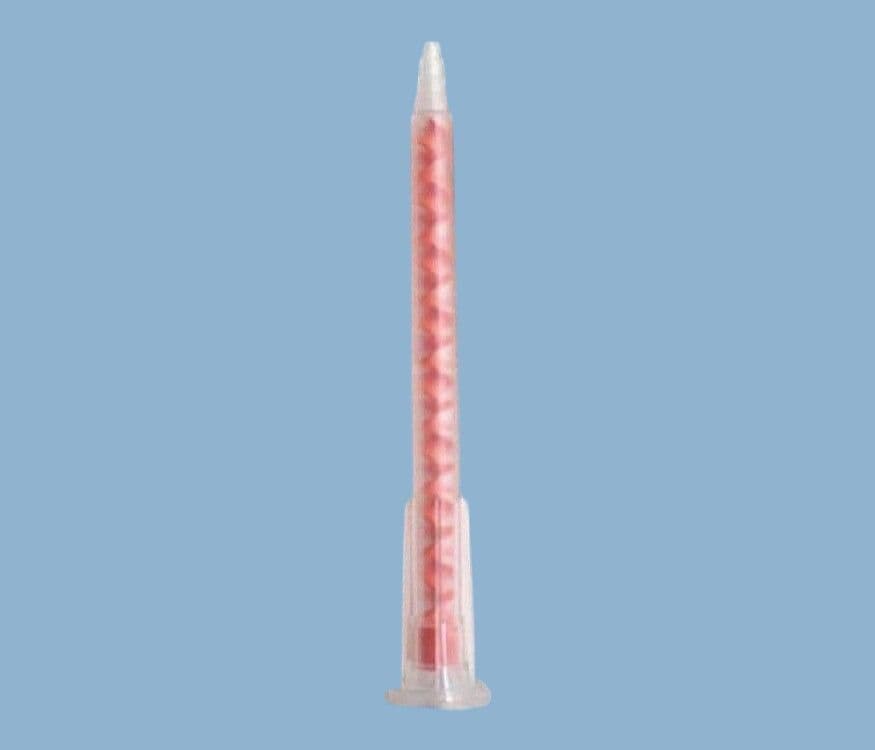

Mixer Nozzle Bayonet 5mm ID x 17 Element MAHX05-17T

Name: Mixer Nozzle Bayonet 5mm ID x 17 Element MAHX05-17T - F. Pack of 1000
Brand: Sulzer Mixpac Medmix
Price: 528.00 GBP
Availability: InStock

Mixer Nozzle Bayonet 5mm ID x 17 Element MAHX05-17T Adhesive Dispensing Ltd

Mixer Nozzle Bayonet 5mm ID x 17 Element MAHX05-17T

Product Code: MAHX05-17T-10

ID: 5.0mm. Elements: 17. Length: 104mm. Volume: 1.5ml. For 50ml 4:1/10:1 Cartridges.

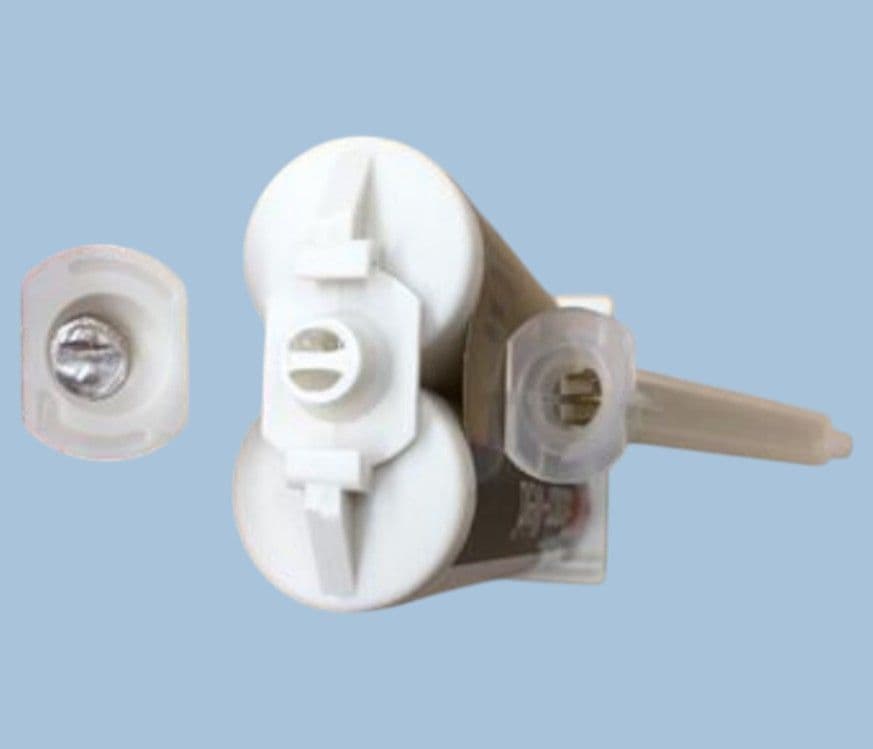

Bayonet inlet, helical static mixer nozzle for 50ml and 75ml dual componentcartridges. Stepped outlet that can be cut back to increase orifice size and increase flow rates. These mixer nozzles are suitable for two-component materials. They have orange elements and are constructed of high grade polypropylene. High quality mixer nozzles for use with twin cartridges.

Most suited to 4:1 (Part # 454000) and 10:1 (Part # 454010) 50ml dual cartridges. All items are industrial grade safe and silicone free. 5mm ID x 17 mixing elements. In packs of 10, 50, 100, 250, 500 or 1000 nozzles.

Part ID: MAHX05-17T
Material: Polypropylene
Colour: Natural Outer, Orange Elements
Inner Diameter: 5mm
Nozzle Length: 104mm
No. Of Mix Elements: 17
Volume: 1.50ml
Maximum Pressure: 100 PSI
Details: Industrial Grade Safe, Silicone Free
Commodity Code: 39269090
Brand: Sulzer Mixpac Medmix

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

Pack Size Options
