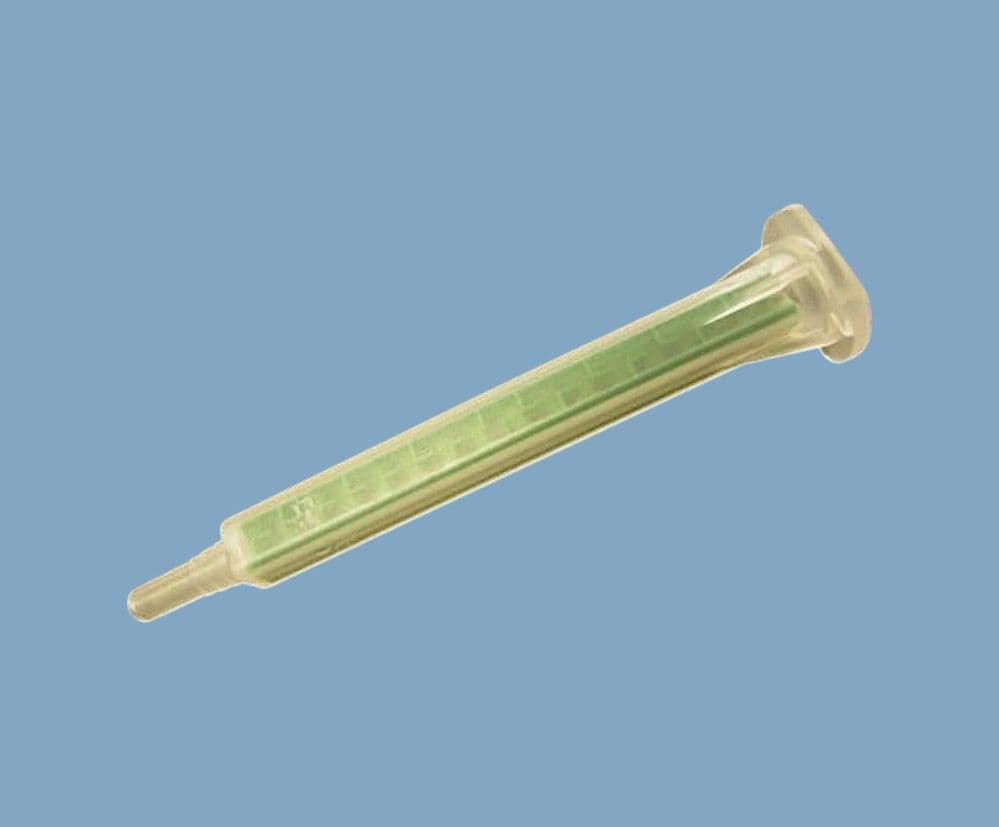

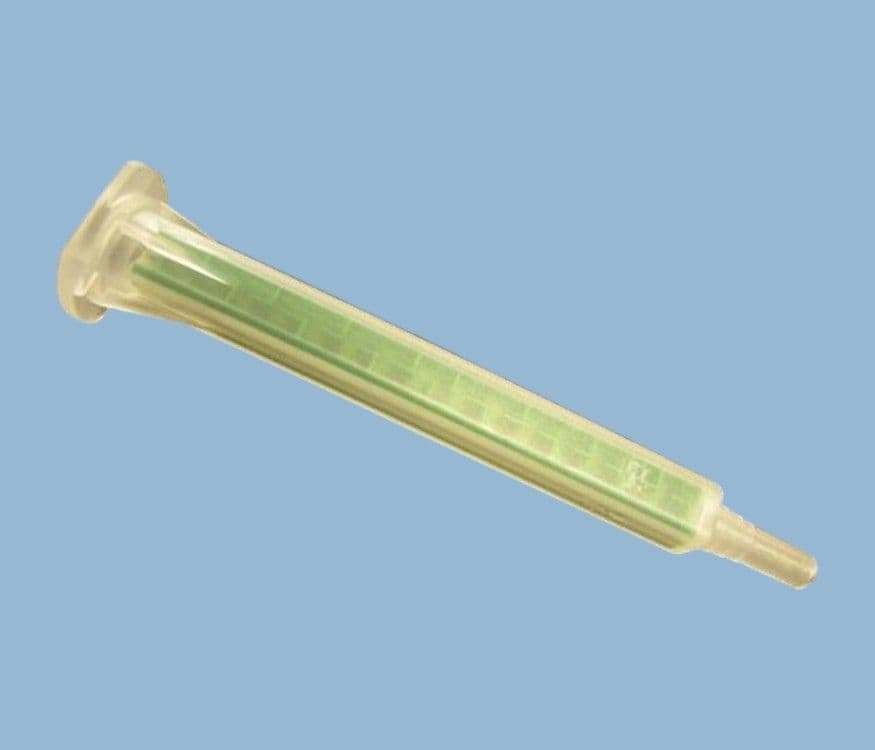

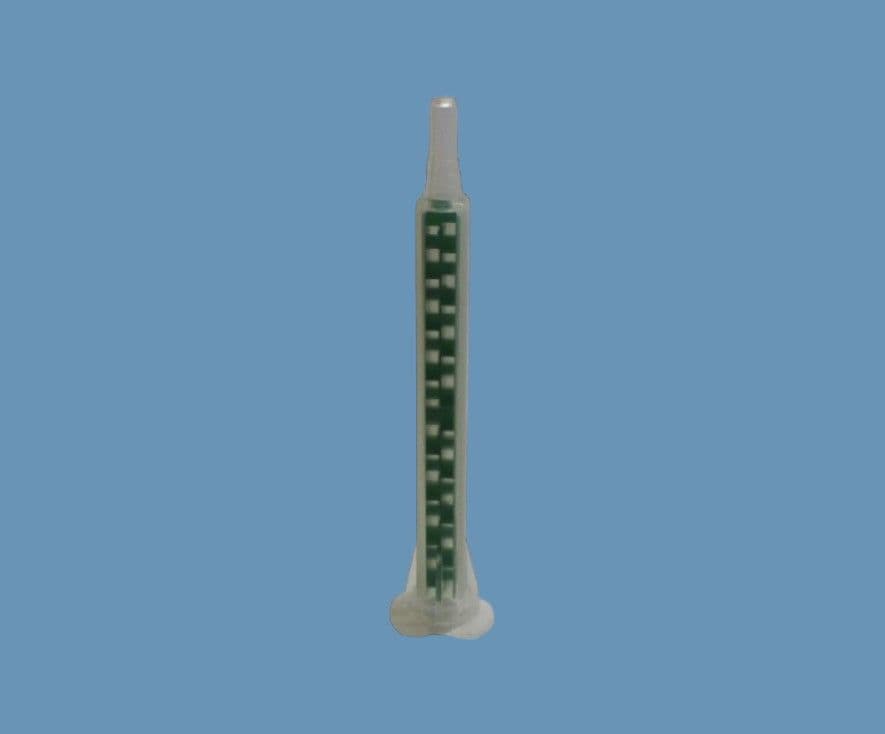

MAQ 05-16L Static Mixer Nozzles

Reliable Mixing for Two-Component Adhesives

The MAQ 05-16L static mixer is designed for use with 50ml, 75ml, and 100ml dual cartridges, supporting mix ratios of 1:1, 2:1, 4:1, and 10:1. Known as the green square Quadro type, this mixer ensures consistent blending and dispensing of a wide range of two-component materials, including:

- Epoxy resins
- Polyurethanes
- Silicones
- Potting compounds
- Doming resins
- Other 2K adhesives and sealants

Key Features
- Bayonet Twist-On Connection: Secure and easy attachment to compatible cartridges.
- Square Body Design: Provides efficient mixing with reduced back pressure.

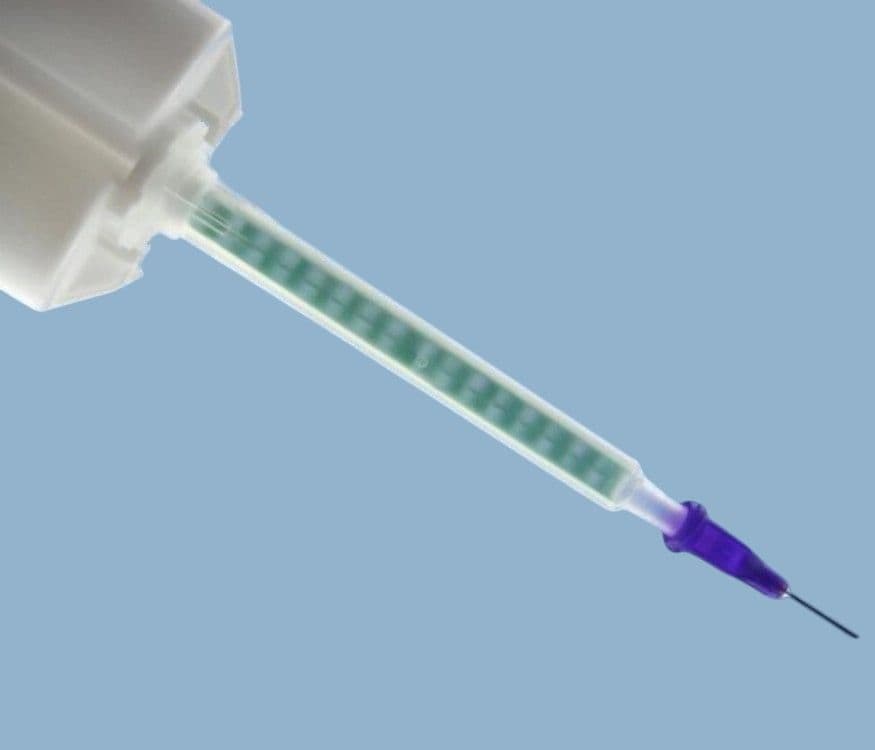

- Luer Slip Outlet: Compatible with luer lock dispense tips for precision applications.
- Dynamic Mixing Performance: Ensures a uniform blend and smooth flow rate.
- High-Grade Polypropylene Construction: Durable, chemical-resistant, and safe for industrial use.
- Certified Silicone-Free: Prevents contamination of sensitive materials.
- Full Traceability: Supplied in sealed packs with label and batch code.

Benefits
- Versatile use across multiple adhesive types and mix ratios.
- Precision dispensing with optional luer lock tips.
- Reduced waste and improved efficiency thanks to optimized flow design.
- Industrial-grade safety certification for peace of mind.

Specifications
Part ID: MAQ 05-16L (300028)
Material: Polypropylene
Colour: Natural Outer, Green Elements
Inner Diameter: 5.3mm
Outer Diameter: 8mm
Nozzle Length: 83mm
Maximum Pressure: 100 PSI
No. Of Mix Elements: 16
Retained Volume: 1.3ml
Details: Industrial Grade Safe, Silicone Free
Commodity Code: 39269097
Brand: Sulzer Mixpac Medmix
Pack Sizes: 10, 50, 100, 250, 500 or 1000 Pieces

For 1:1 (Part 451000) and 2:1 (Part 452013) 50ml dual cartridges, 1:1 (Part 475100) 75ml dual cartridges and 1:1 (Part 100011) 100ml dual cartridges. All items are industrial grade safe and silicone free. 5.3mm ID x 16 mixing elements. In packs of 10, 50, 100, 250, 500 or 1000 nozzles.

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
