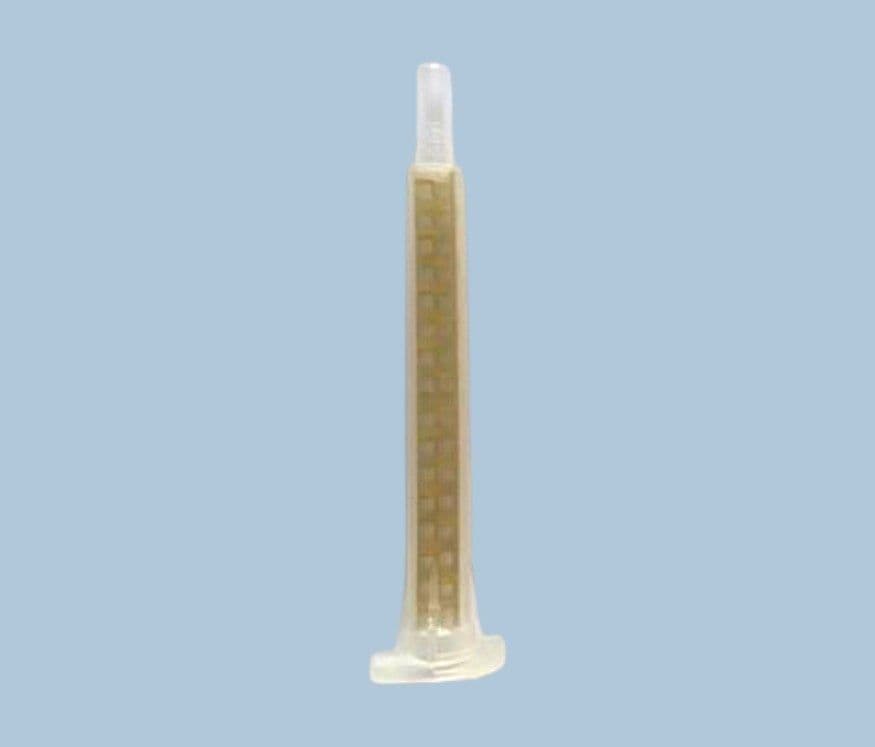

Mixer Nozzle Bayonet 5mm ID x 16 Element ADMF6-16G

ADMF6-16G Mix Nozzle Quadro Bayonet 5.3mm ID x 16 Element Adhesive Dispensing Ltd
ADMF6-16G Mix Nozzle Quadro Bayonet 5.3mm ID x 16 Element Adhesive Dispensing Ltd ADMF6-16G Mix Nozzle Quadro Bayonet 5.3mm ID x 16 Element Adhesive Dispensing Ltd ADMF6-16G Mix Nozzle Quadro Bayonet 5.3mm ID x 16 Element Adhesive Dispensing Ltd
Mixer Nozzle Bayonet 5mm ID x 16 Element ADMF6-16G
Product Code: ADMF6-16G-10

ID: 5.3mm. Elements: 16. Length: 83mm. Volume: 1.3ml. For 50ml 1:1/2:1 Dual Cartridges.
Static mixers are used for dispensing adhesives from two part 50ml, 75ml and 100ml size (dual) component cartridges. Available ratios are 1:1 and 2:1. This range of products is attached using a bayonet style connection. These products can be used with epoxy, polyurethane, silicone, doming resins and a variety of other adhesives and sealants.

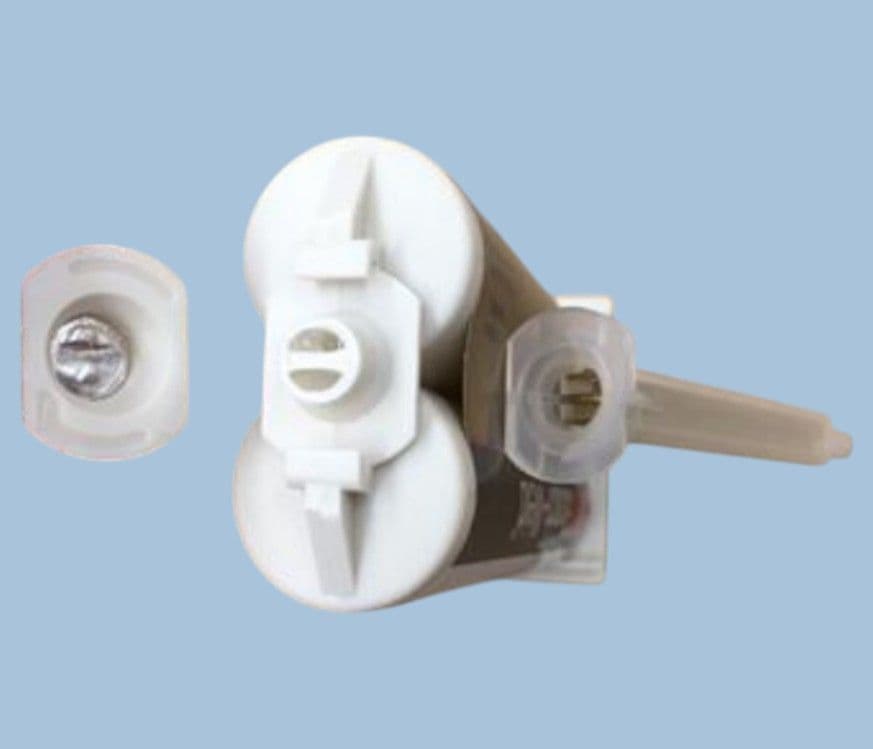

Bayonet inlet, square static mixer nozzle. Slip outlet that can be used with luer lock dispense tips to adjust shot size. These mixer nozzles are suitable for all two-component materials. They have gold elements and are constructed of high grade polypropylene. High quality mixer nozzles for use with twin cartridges.

For 1:1 (Part 451000) and 2:1 (Part 452013) 50ml dual cartridges, 1:1 (Part 475100) 75ml dual cartridges and 1:1 (Part 100011) 100ml dual cartridges. All items are industrial grade safe and silicone free. 5.3mm ID x 16 mixing elements. In packs of 10, 50, 100, 250, 500 or 1000 nozzles.
Part ID: ADMF6-16G
Material: Polypropylene, Polyacetal
Colour: Natural Outer, Gold Elements
Inner Diameter: 5.3mm
Outer Diameter: 8mm
Nozzle Length: 83mm
No. Of Mix Elements: 16
Volume: 1.3ml
Maximum Pressure: 100 PSI
Details: Industrial Grade Safe, Silicone Free
Commodity Code: 39269097
Pack Sizes: 10, 50, 100, 250, 500, 1000
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Pack Size Options
Price: £5.00   Exc VAT
  • Product Brand:Adhesive Dispensing Ltd
  • MPN: ADMF6-16G-100Lead Time: Ships In 24 Hours - Stock ItemPack Size: 1000
