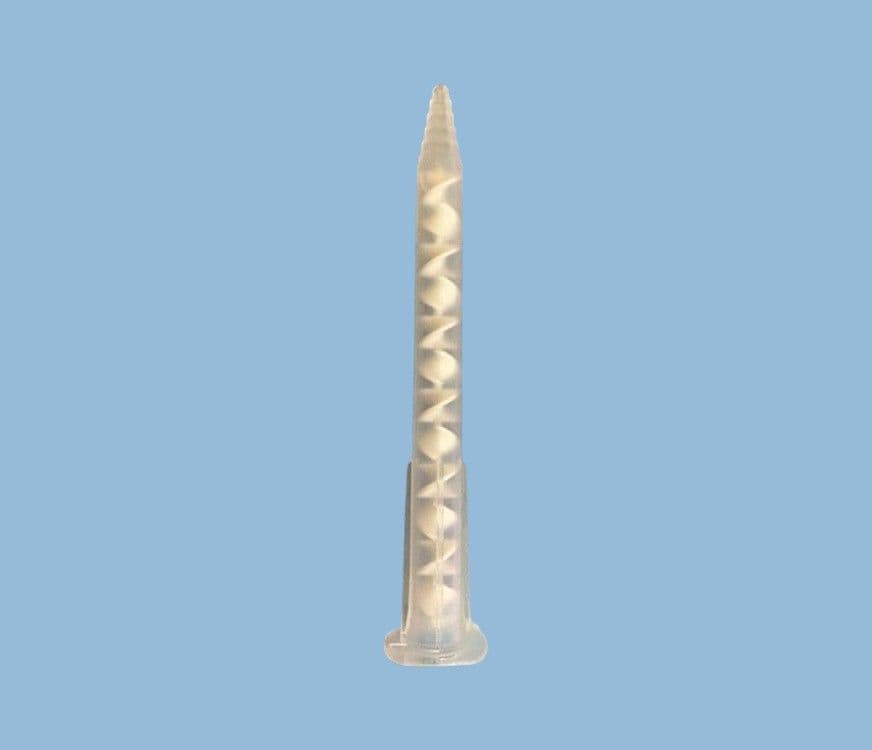

Mixer Nozzle Bayonet 5mm ID x 13 Elements MAH 05-13S

MAH 05-13T Sulzer Mix Nozzle 5.4mm ID x 13 Element MA5.4-13S Adhesive Dispensing Ltd
MAH 05-13T Sulzer Mix Nozzle 5.4mm ID x 13 Element MA5.4-13S Adhesive Dispensing Ltd MAH 05-13T Sulzer Mix Nozzle 5.4mm ID x 13 Element MA5.4-13S Adhesive Dispensing Ltd MAH 05-13T Sulzer Mix Nozzle 5.4mm ID x 13 Element MA5.4-13S Adhesive Dispensing Ltd
Dispensing tips adhesive catalog luer lok
Mixer Nozzle Bayonet 5mm ID x 13 Elements MAH 05-13S
Product Code: MAH05-13S-10

ID: 5.4mm. Elements: 13. Length: 85mm. Volume: 1.4ml. For 50ml 1:1/2:1 Cartridges.

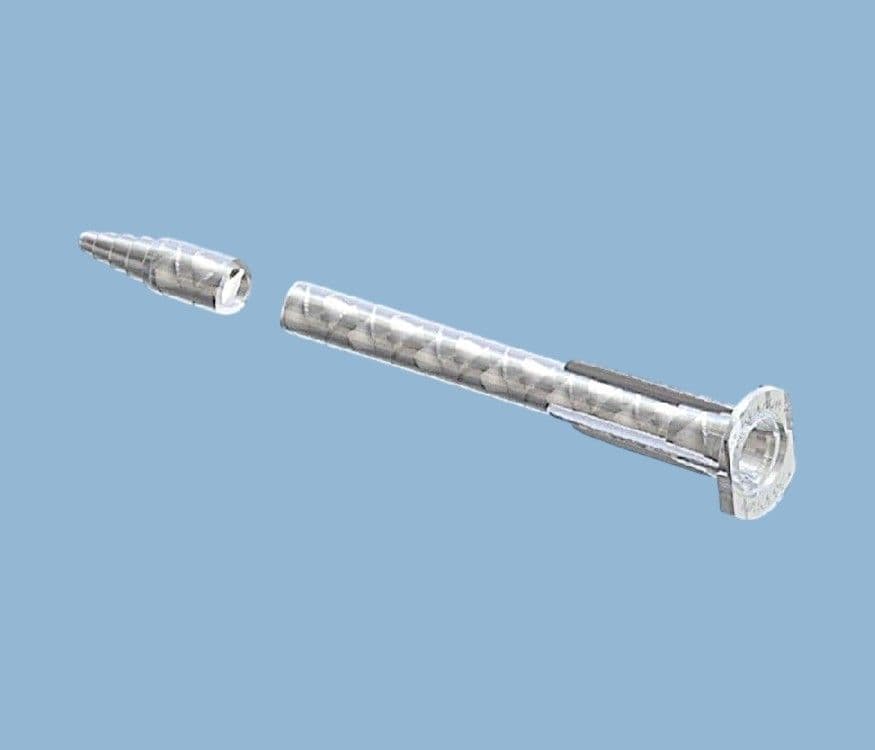

Bayonet inlet, helical static mixer nozzle for 50ml, 75ml and 100ml A-System dual component cartridges. Stepped outlet that can be cut back to increase orifice size and increase flow rates. These mixer nozzles are suitable for all two-component materials. They have white elements and are constructed of high grade polypropylene. High quality mixer nozzles for use with twin cartridges.

Most suited to 1:1 (Part # 451000) and 2:1 (Part # 452013) 50ml dual cartridges, 1:1 (Part # 475100) 75ml dual cartridges and 1:1 (Part # 100011) 100ml dual cartridges. All items are industrial grade safe and silicone free. 5.4mm ID x 13 mixing elements. In packs of 50, 100 or 250 nozzles.

Part ID: MA5.4-13S - MAH 05-13T - 102371
Material: Polypropylene
Colour: Natural Outer, White Elements
Inner Diameter: 5.4mm
Outer Diameter: 8.0mm
Nozzle Length: 85mm
No. Of Mix Elements: 13
Volume: 1.4ml
Maximum Pressure: 100 PSI
Details: Industrial Grade Safe, Silicone Free
Commodity Code: 39269097
Brand: Sulzer Mixpac - Medmix

About MIXPAC MAH, MAQ Mixers

MIXPAC MAH and MIXPAC MAQ mixers are used with MIXPAC A-System 50ml (and 75ml/ 100ml with 1:1 ratio) two-part cartridges, and are compatible with many other systems. They have a simple twist lock bayonet fitting for mounting on the cartridge. The mixers first element automatically aligns itself with the dividing wall of the MIXPAC cartridge, separating Part A and Part B, preventing cross-over at the interface of the cartridge.

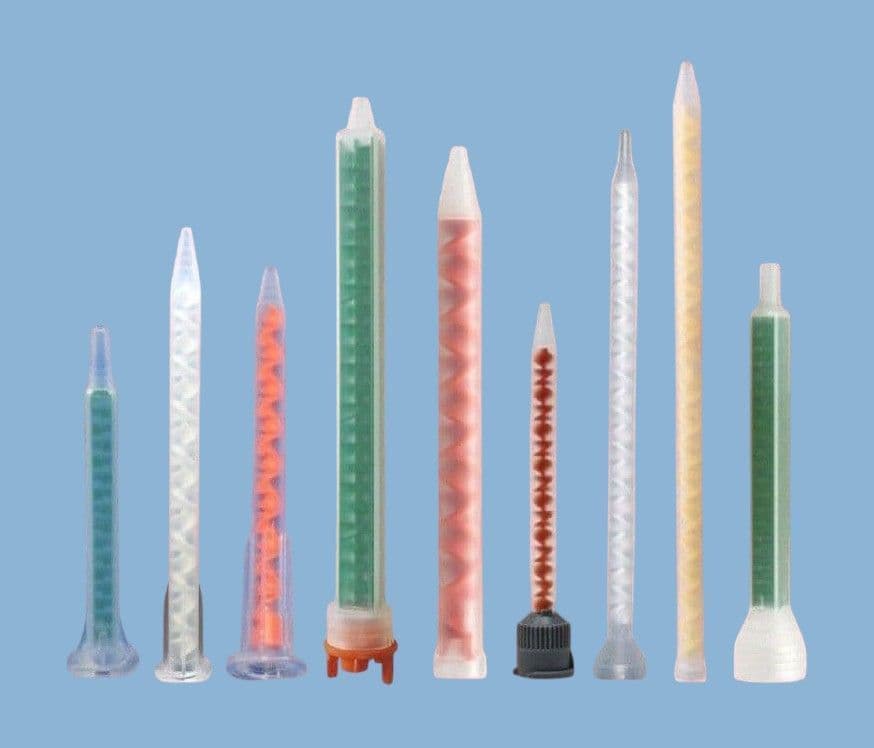

They are available in round/ helical version or square QUADRO versions. There are versions available with stepped outlet tips, tapered outlet, straight outlet and luer slip outlet tips.

MIXPAC MAH and MAQ static mixing nozzles are used to dispense two-part adhesives and materials such as epoxy, polyurethane, acrylic, doming resins and MMA methacrylate. These mixers were formerly sold under the Sulzer Mixpac brand name. Adhesive Dispensing Ltd have been distributing Medmix Sulzer products for over 15 years.

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Pack Size Options
Price: £6.00   Exc VAT
  • Product Brand:Sulzer Mixpac Medmix
  • MPN: MAH05-13S-10Lead Time: Ships In 24 Hours - Stock ItemPack Size: 250
Write a Review

Write an online review and share your thoughts with other shoppers!

Be the first to review this product

These bayonet style mixers are best used with 1:1 or 2:1 ratio 50ml dual cartridges. (Our part codes 451000 1:1 or 452013 2:1). The resin and catalyst are fed into the mixer from 2 separate outlets ensuring they only contact when in the nozzle. The nozzles have a tapered end for precision dispensing
