Mixer Nozzle Bayonet 3mm ID x 7 Elements ADMA3.0-07S

Static Mix Nozzle Bayonet 3mm ID x 7 Elements MAH 3.0-07S Adhesive Dispensing Ltd
Static Mix Nozzle Bayonet 3mm ID x 7 Elements MAH 3.0-07S Adhesive Dispensing Ltd Static Mix Nozzle Bayonet 3mm ID x 7 Elements MAH 3.0-07S Adhesive Dispensing Ltd Static Mix Nozzle Bayonet 3mm ID x 7 Elements MAH 3.0-07S Adhesive Dispensing Ltd Static Mix Nozzle Bayonet 3mm ID x 7 Elements MAH 3.0-07S Adhesive Dispensing Ltd
Dispensing tips adhesive catalog luer lok
Mixer Nozzle Bayonet 3mm ID x 7 Elements ADMA3.0-07S
Product Code: ADMA3.0-07S-10

ID: 3.0mm. Elements: 7. Length: 34mm. Volume: 0.24ml. For 50ml 1:1/2:1 Cartridges.

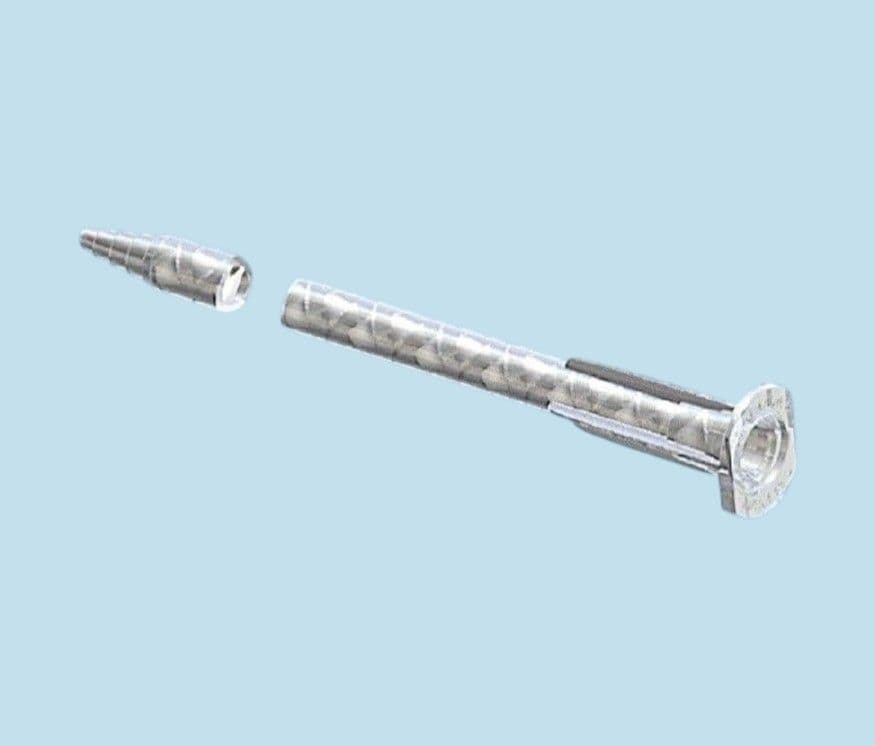

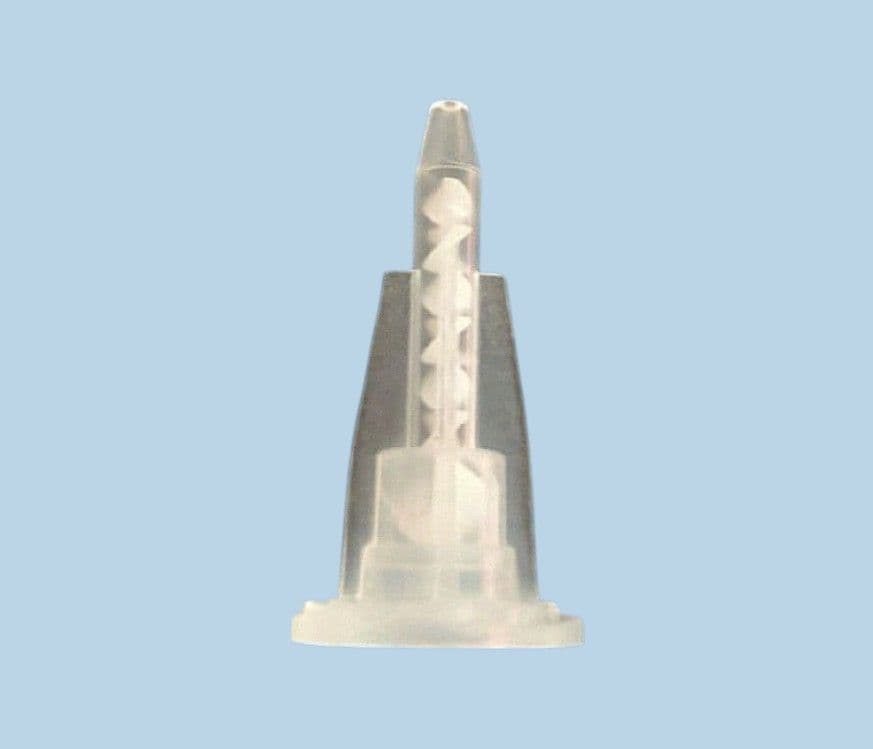

Bayonet inlet, helical static mixer nozzle for 50ml and 75ml dual component cartridges. Tapered design outlet for high precision and controlled flow rates. These mixer nozzles are suitable for all two-component materials. They have white elements and are constructed of high grade polypropylene. High quality mixer nozzles for use with twin cartridges.

Most suited to cartridges 1:1 (Part # 451000) and 2:1 (Part # 452013) 50ml, 1:1 (Part # 475100) 75ml and 1:1 (Part # 100011) 100ml dual cartridges. All items are industrial grade safe and silicone free. In packs of 10, 50, 100, 250, 500 or 1000 nozzles.

Part ID: ADMA3.0-07S
Material: Polypropylene
Colour: Natural Outer, White Elements
Inner Diameter: 3mm
Nozzle Length: 34mm
No. Of Mix Elements: 7
Retained Volume: 0.24ml
Maximum Pressure: 100 PSI
Details: Industrial Grade Safe, Silicone Free
Commodity Code: 39269097
Brand: Adhesive Dispensing Ltd
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Pack Size Options
Price: £4.00   Exc VAT
  • Product Brand:Adhesive Dispensing Ltd
  • MPN: ADMA3.0-07S-10Lead Time: Ships 24 Hours - Stock ItemPack Size: 10
Write a Review

Write an online review and share your thoughts with other shoppers!

Be the first to review this product

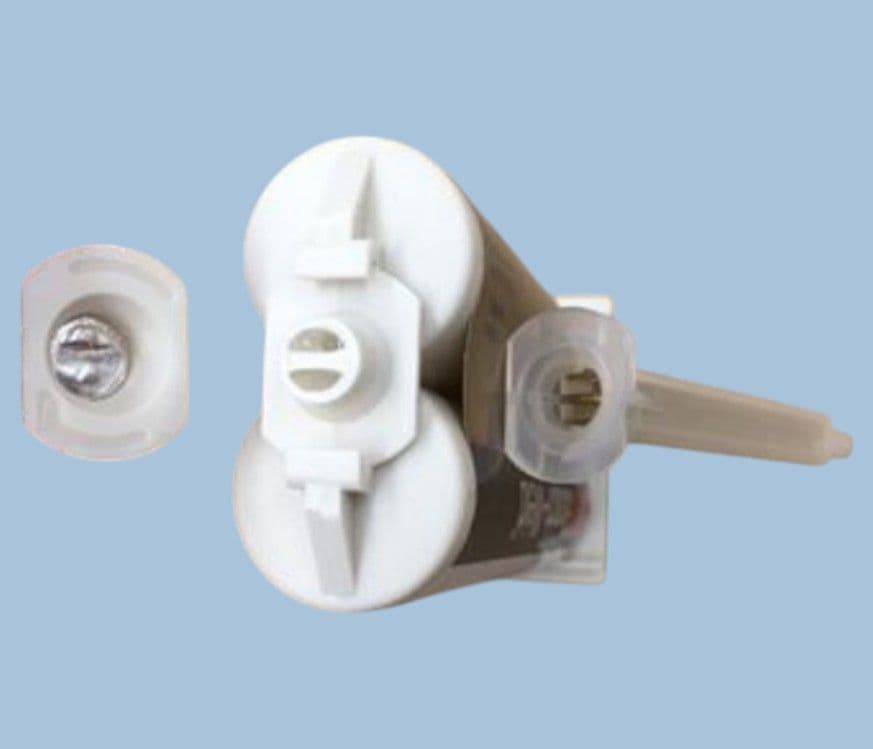

These bayonet style mixers are best used with 1:1 or 2:1 ratio 50ml dual cartridges. (Our part codes 451000 1:1 or 452013 2:1). The resin and catalyst are fed into the mixer from 2 separate outlets ensuring they only contact when in the nozzle. The nozzles have a tapered end for precision dispensing.
