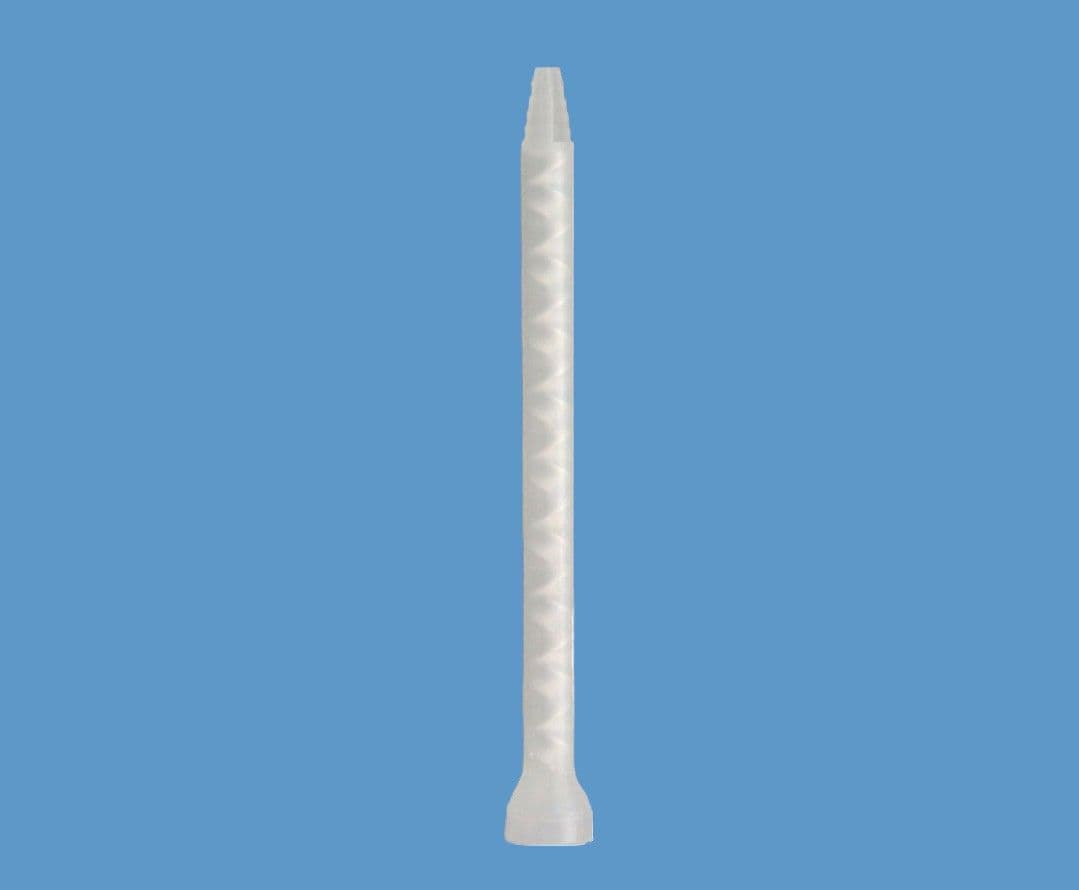

Mix Nozzle 8mm ID x 18 EL MCH 08-18T

Mix Nozzle Bell Mouth 8mm ID x 18 MC08-18 Sulzer Adhesive Dispensing Ltd MCH 08-18T
Dispensing tips adhesive catalog luer lok

Technical Support
Mix Nozzle 8mm ID x 18 EL MCH 08-18T
Product Code: MC08-18-50

ID: 8.0mm. Elements: 18. Length: 177mm. Volume: 6.7ml. For 200/400ml 1:1/2:1 cartridges
 Bell mouth inlet, helical static mixer for 200ml, 400ml and 600ml dual component epoxy type cartridges. Stepped outlet that can be cut back to increase orifice size and increase flow rates or used with LA06-08 luer adapter and any luer lock needle tips.

These mixer nozzles are suitable for 1:1 and 2:1 ratio two-component materials. They have white inner elements and are constructed of high grade polypropylene. High quality mixer nozzles for use with twin cartridges. All items are industrial grade safe and silicone free. 8mm ID x 18 mixing elements.

Supplied in a sealed pack - select pack size required.

Part ID: MC08-18 - MCH 08-18T - 102421
Material: Polypropylene
Colour: Natural Outer, White Elements
Inner Diameter: 8mm
Length: 177mm
Retained Volume: 6.70ml
Elements: 18
Maximum Pressure: 100 PSI
Details: Industrial Grade, Silicone Free
Commodity Code: 39269097
Origin: Europe
Brand: Sulzer Mixpac Medmix

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

Price: £49.50   Exc VAT
  • Product Brand:Sulzer Mixpac Medmix
  • MPN: MCH 08-18T-1000Lead Time: Ships in 24 Hours - Stock ItemPack Size: 1000
