Mix Nozzle 8mm ID x 18 EL ADMC08-18T

Name: Mix Nozzle 8mm ID x 18 EL ADMC08-18T - F. Pack of 1000
Brand: Adhesive Dispensing Ltd
Price: 780.00 GBP
Availability: InStock

Mix Nozzle Bell Mouth 8mm ID x 18 Adhesive Dispensing Ltd ADMC08-18T

Mix Nozzle 8mm ID x 18 EL ADMC08-18T

Product Code: ADMC08-18T-10

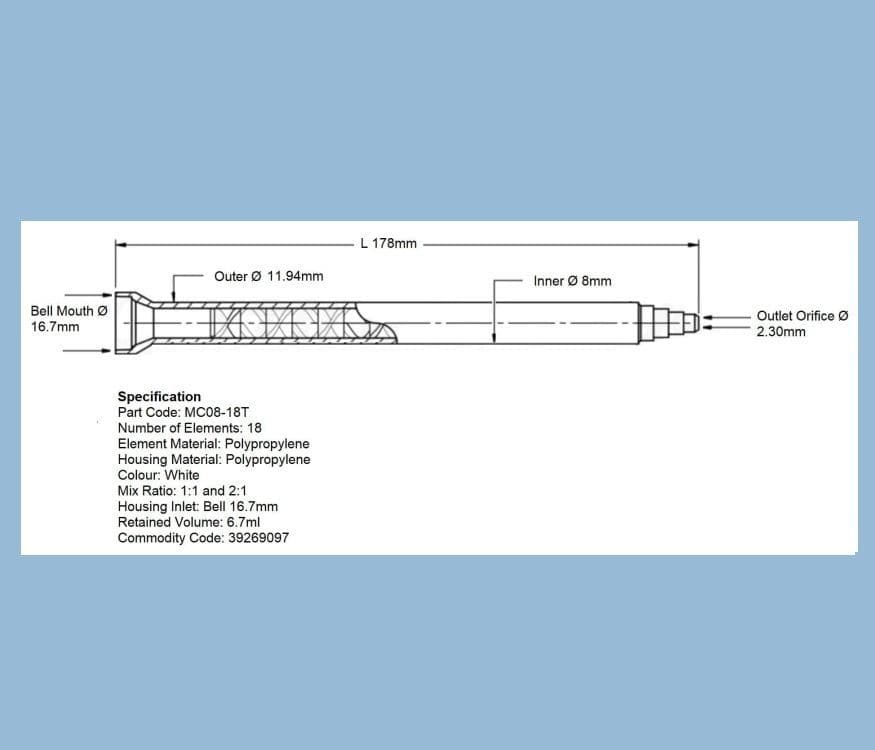

ID: 8.0mm. Elements: 18. Length: 177mm. Volume: 6.7ml. For 200/400ml 1:1/2:1 cartridges

ADMC08-18T is a bell mouth inlet, helical static mixer for 200ml, 400ml and 600ml dual component epoxy type cartridges. It features a stepped outlet that can be cut back to increase orifice size and flow rates or can be used with LA06-08 luer adapter and any luer lock needle tips.

These mixer nozzles are suitable for 1:1 and 2:1 ratio two-component material cartridges. They have white inner elements and the bodies are constructed of high grade polypropylene. ADMC are high quality mixer nozzles with a bell mouth housing that is pushed over the cartridge outlet and secured using the locking nut.. All mixers are industrial grade safe and are certified silicone free.

Supplied in a sealed pack - select pack size required.

Part ID: ADMC08-18T
Material: Polypropylene
Colour: Natural Outer, White Elements
Inner Diameter: 8mm
Total Length: 177mm
Housing Diameter: 16.7mm
Retained Volume: 6.70ml
No. Of Mix Elements: 18
Details: Industrial Grade, Silicone Free
Commodity Code: 39269097
Brand: Adhesive Dispensing Ltd

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

Pack Size Options
