Mix Nozzle 6mm ID x 18 EL Stepped End MCH 06-18T

Mixer Nozzle Bell Mouth 6mm ID x 18 MCH 06-18T Sulzer Mixpac Adhesive Dispensing Ltd
Mixer Nozzle Bell Mouth 6mm ID x 18 MCH 06-18T Sulzer Mixpac Adhesive Dispensing Ltd Mixer Nozzle Bell Mouth 6mm ID x 18 MCH 06-18T Sulzer Mixpac Adhesive Dispensing Ltd
Dispensing tips adhesive catalog luer lok

Technical Support

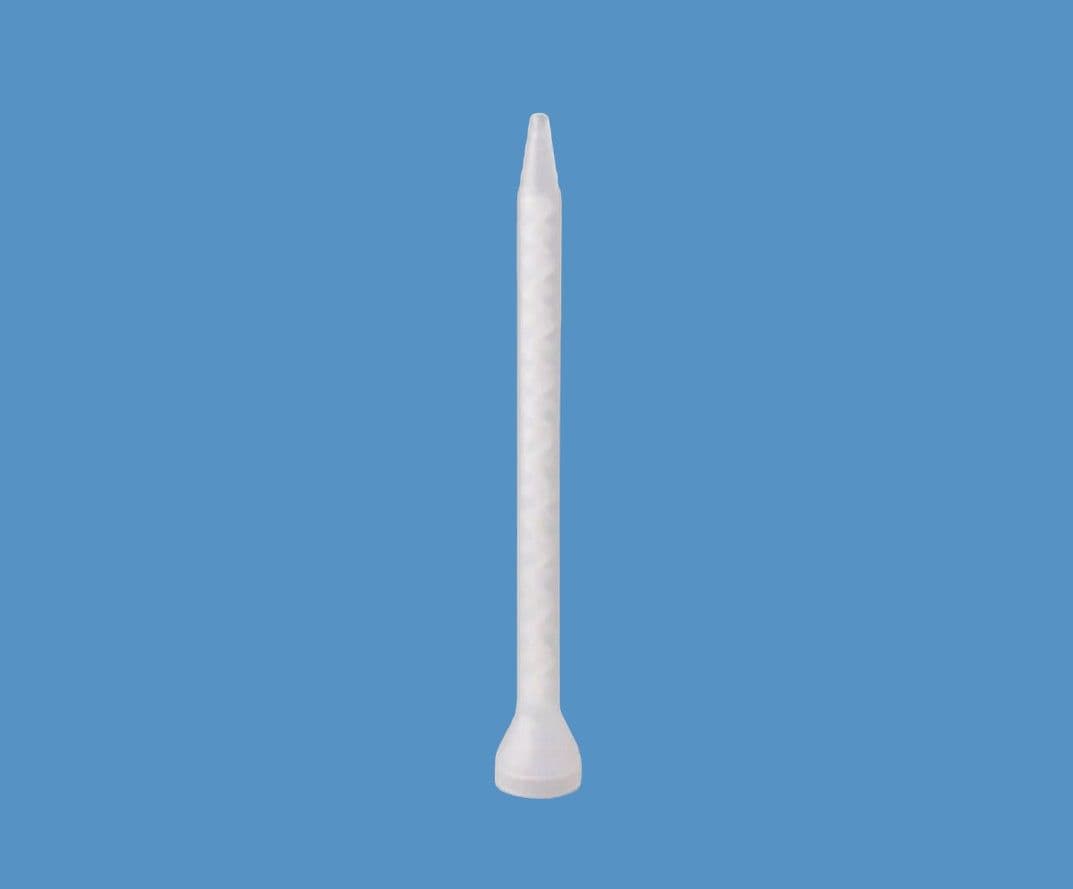

Mix Nozzle 6mm ID x 18 EL Stepped End MCH 06-18T
Product Code: MC06-18-50

ID: 6.0mm. Elements: 18. Length: 150mm. Volume: 3.6ml. For 200/400ml 1:1/2:1 cartridges
Bell mouth inlet, helical static mixer for 200ml, 400ml and 600ml dual component epoxy type cartridges. Stepped outlet that can be cut back to increase orifice size and increase flow rates or used with LA06-08 luer adapter and any luer lock needle tips.

These mixer nozzles are suitable for C-system two-component materials. They have white inner elements and are constructed of high grade polypropylene. High quality mixer nozzles for use with twin cartridges. All items are industrial grade safe and silicone free. 6.00mm ID x 18 mixing elements. Select pack size below.
Part ID: MCH 06-18T - 102417
Material: Polypropylene
Colour: Natural Outer, White Elements
Inner Diameter: 6.0mm
Outer Diameter: 10mm
Orifice Hole Size: 1.80mm
Length: 150mm
Volume in Nozzle: 3.6ml
Elements: 18
Commodity Code: 39269097
Origin: Europe
Brand: Sulzer Mixpac Medmix
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Pack Size
Price: £42.00   Exc VAT
  • Product Brand:Sulzer Mixpac Medmix
  • MPN: MCH 06-18T-100Pack Size: 100Lead Time: Ships In 24 Hours - Stock Item
Write a Review

Write an online review and share your thoughts with other shoppers!

Be the first to review this product

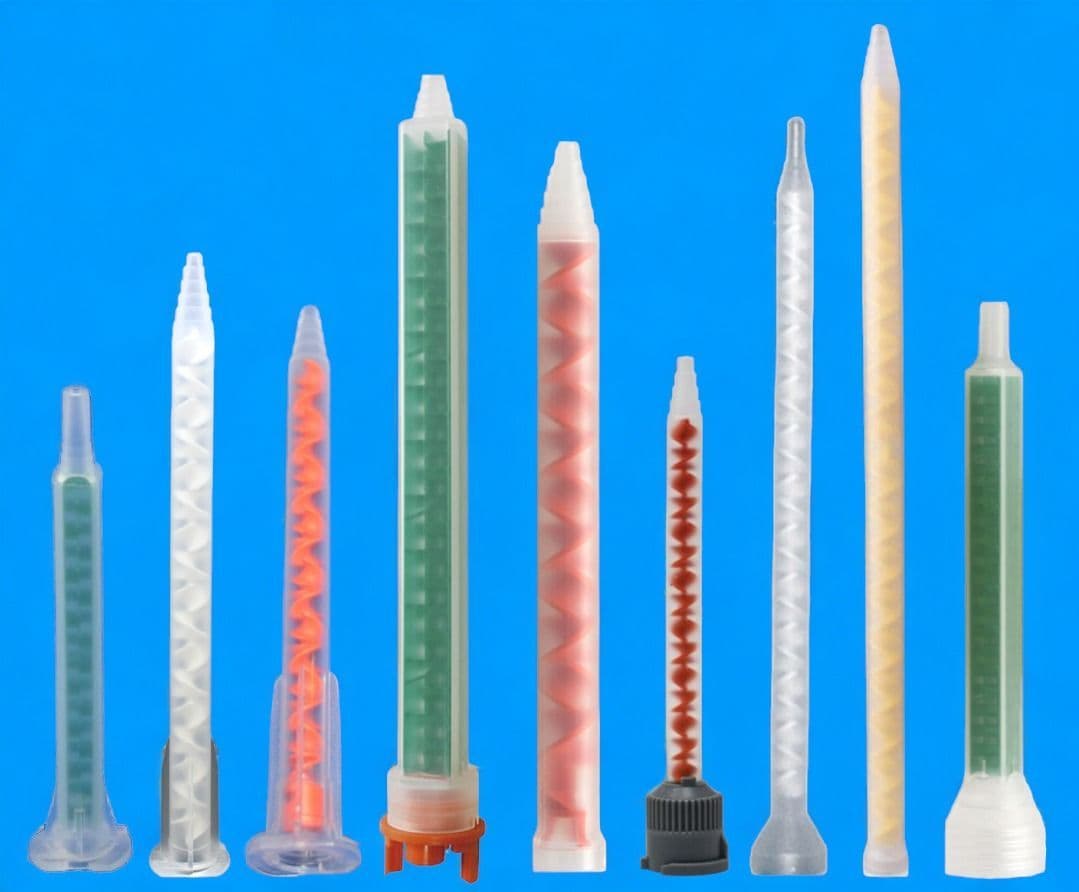

MC static mixers are used for dispensing adhesives from two-part 200 ml, 400 ml and 600 ml plastic cartridges. Available ratios are 1:1 and 2:1.  These mixers are attached using a retaining nut, usually supplied with the cartridge. Static mixers are often referred to as nozzles.  Mixers can be used with epoxy, polyurethane, silicone, and a variety of other adhesives and sealants
