Mix Nozzle 3.2mm ID x 12 EL 114262 MKHX03-12D

Name: Mix Nozzle 3.2mm ID x 12 EL 114262 MKHX03-12D - F. Pack of 1000
Brand: Sulzer Mixpac Medmix
Price: 474.00 GBP
Availability: InStock

Static mix nozzle K System Adhesive Dispensing Sulzer Mixpac 114262 MKHX03-12D

Product Code: 114262 MKHX03-12D-10

Mix nozzle, 3.2mm ID, 12 Element, Length: 56.0mm, Volume: 0.39ml, 10:1 ratio. Open outlet

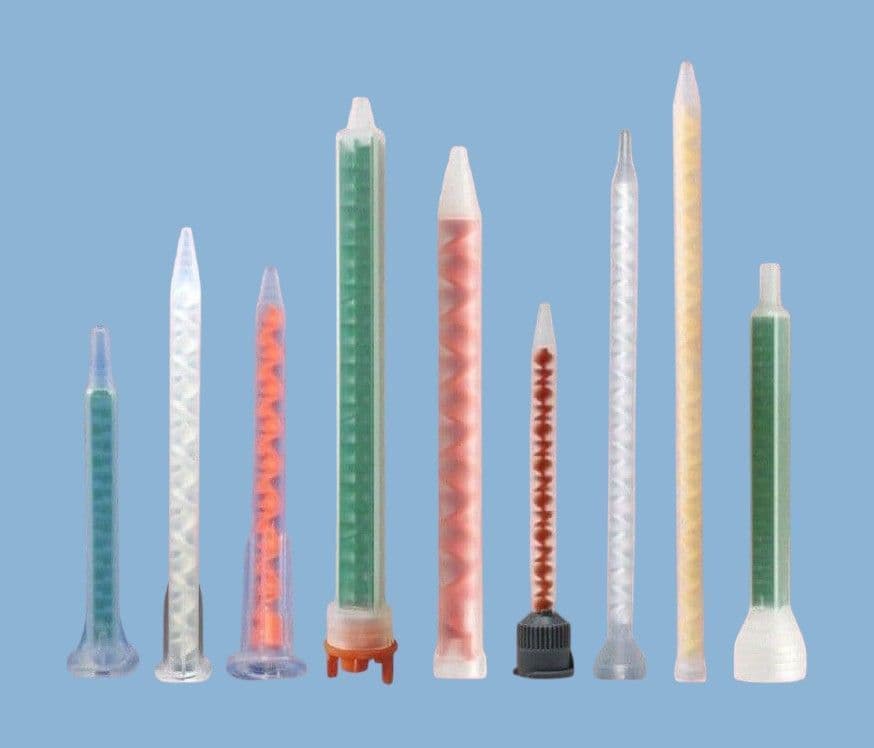

Small Shot Mixer Nozzles for Two-Component Adhesives

The K system dual syringes are ideal for one shot or small volume dispensing of fully mixed materials.

This part code is for the static mixer nozzle used with the 10:1 ratio sets only. Light grey collar. Natural body with orange mix elements.

12 mix elements - 3.2mm ID. Overall nozzle length 56mm. Volume of retained material is 0.39ml. Supplied in sealed packs with labels and batch codes. Open outlet for faster flow rates.

Specifications:
Part ID: 114262 (MKHX03-12D)
Material: Polypropylene
Colour: Natural Body, Grey Cap, Orange Elements
Length: 56.0mm
ID: 3.2mm
Elements: 12
Volume: 0.39ml
Ratio: 10 to 1 Only
Details: Industrial grade, Silicone Free
Commodity Code: 39269097
Brand: Sulzer Mixpac Medmix

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
