Mix Nozzle 3.2mm ID x 12 EL 114258 MKHX03-12S

Static mix nozzle K System Adhesive Dispensing MKHX02-16S Sulzer Mixpac 114258

Product Code: MKHX03-12S-10

Mix nozzle, 3.2mm ID, 12 Element, Length: 61.0mm, Volume: 0.39ml, 10:1 ratio. Tapered Outlet

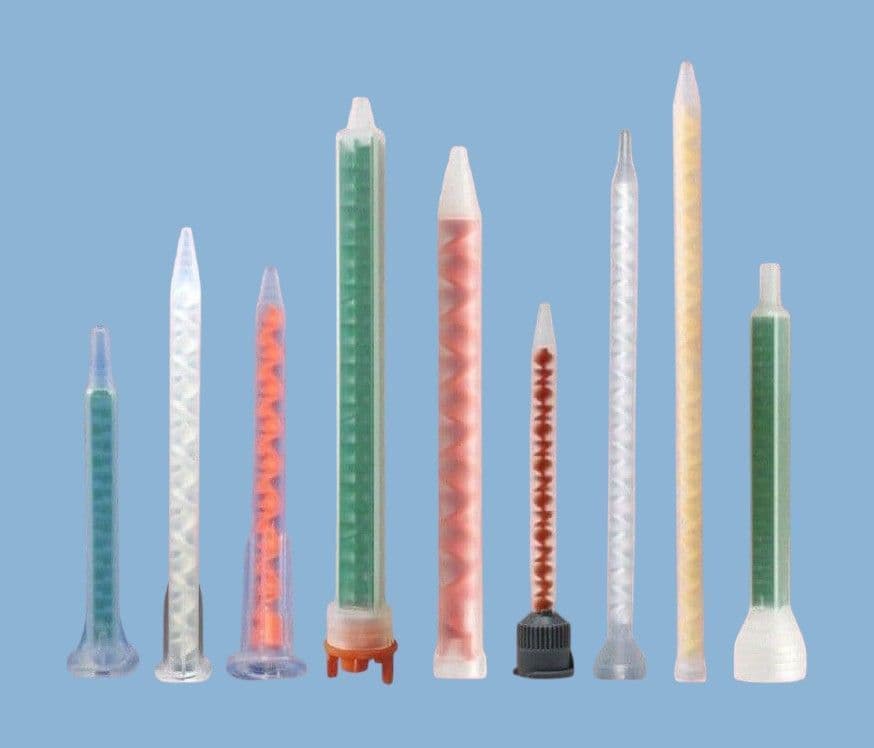

Small Shot Mixer Nozzles for Two-Component Adhesives

The K system dual syringes are ideal for one shot or small volume dispensing of fully mixed materials.

This part code is for the static mixer nozzle used with the 10:1 ratio sets only. Light grey cap. Natural body with orange mix elements.

12 mix elements - 3.2mm ID. Overall nozzle length 61mm. Volume of retained material is 0.39ml. Tapered outlet for high levels of precision dispensing. Supplied in sealed packs with labels and batch codes.

Specifications:
Part ID: 114258 (MKHX03-12S)
Material: Polypropylene
Colour: Natural Body, Grey Cap, Orange Elements
Length: 61.0mm
ID: 3.2mm
Elements: 12
Volume: 0.39ml
Ratio: 10 to 1 Only
Details: Industrial Grade, Silicone Free
Commodity Code: 39269097

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
