Mix Nozzle 3.2mm ID x 12 EL 114254 MKH03-12D

Static mix nozzle K System from Adhesive Dispensing MKH03-12D Sulzer Mixpac 114254

Product Code: 114254 MKH03-12D-10

Mix nozzle, 3.2mm ID, 12 Element, Length: 56.0mm, Volume: 0.39ml, 1:1 ratio only

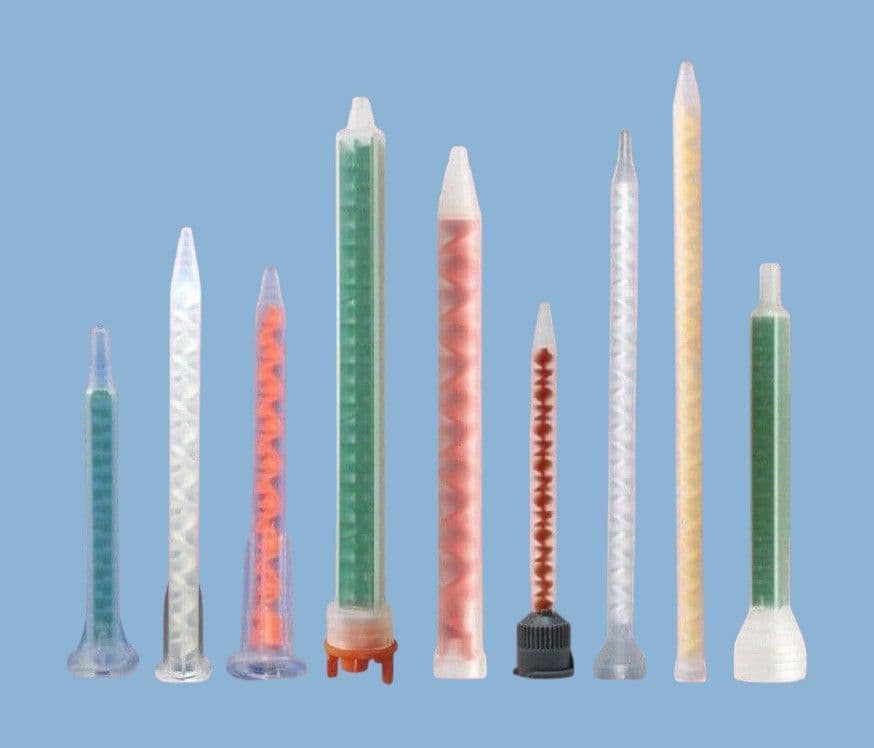

Small Shot Mixer Nozzles for Two-Component Adhesives

The K system dual syringes are ideal for one shot or small volume dispensing of fully mixed materials. This version has an open end for faster material flow rates.

This part code is for the static mixer nozzle used with the 1:1 ratio sets only. Light grey collar. Natural body with white mix elements.

12 mix elements - 3.2mm ID. Overall nozzle length 56.0mm. Volume of retained material is 0.39ml. Straight outlet design for faster material flow rates. Supplied in sealed packs with labels and batch codes.

Part ID: 114254 (MKH03-12D)
Material: Polypropylene
Colour: Natural Outer/ White Element/ Grey Cap
Length: 56.0mm
Inner Diameter: 3.2mm
Elements: 12
Volume: 0.39ml
Details: Industrial Grade, Silicone Free
Commodity Code: 39269097

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
