Mix Nozzle 2.5mm ID x 16 EL 115686 MKH02-16S

Static Mix Nozzle Adhesive Dispensing Ltd 115686 MKH02-16S Sulzer Mixpac Medmix

Product Code: MKH02-16S-10

Mix nozzle, 2.5mm ID, 16 Element, Length: 59.7mm, Volume: 0.27ml, 1:1/2:1 ratio. Tapered Outlet

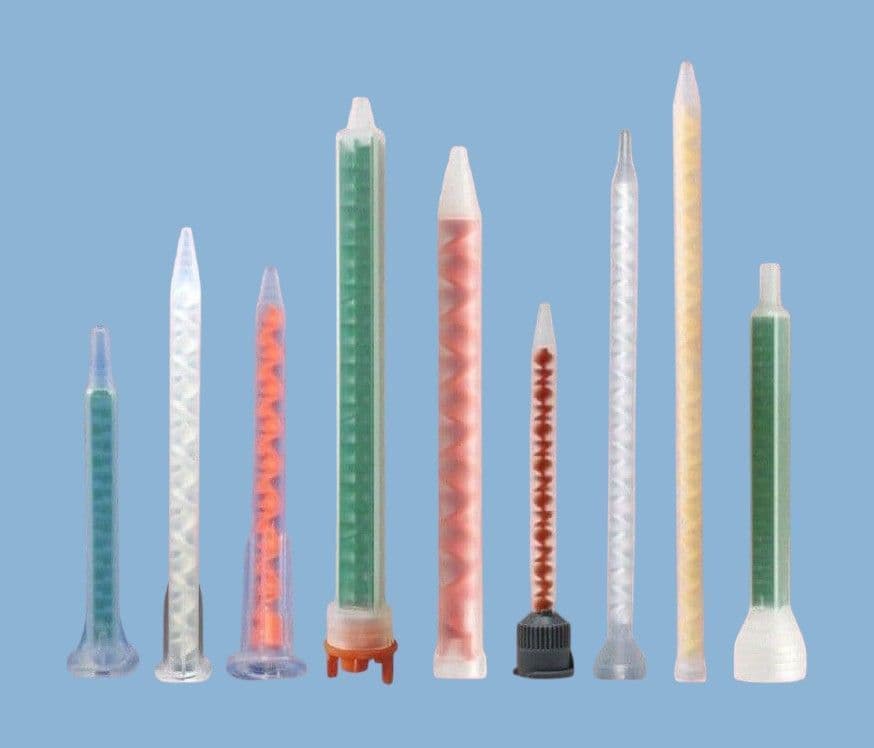

Small Shot Mixer Nozzles for Two-Component Adhesives

The K system dual syringes are ideal for one shot or small volume dispensing of fully mixed materials. This part code is for the static mixer nozzle used with the 1:1 and 2:1 ratio sets only. Light grey collar. Natural body with white mix elements.

16 mix elements - 2.5mm ID. Overall nozzle length 59.7mm. Volume of retained material is 0.27ml. Tapered outlet design for high levels of deposit control. Supplied in sealed packs with labels and batch codes.

Specifications:
Part ID: 115686 (MKH02-16S)
Material: Polypropylene
Colour: Natural Body, Grey Cap, White Elements
Length: 59.7mm
ID: 2.5mm
Elements: 16
Volume: 0.27ml
Ratio: 1:1/ 2:1
Details: Industrial Grade, Silicone Free
Commodity Code: 39269097
Brand: Medmix Sulzer Mixpac

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
