Mix Nozzle 2.5mm ID x 16 EL 114257 MKHX02-16S

Name: Mix Nozzle 2.5mm ID x 16 EL 114257 MKHX02-16S - F. Pack of 1000
Brand: Sulzer Mixpac Medmix
Price: 420.00 GBP
Availability: InStock

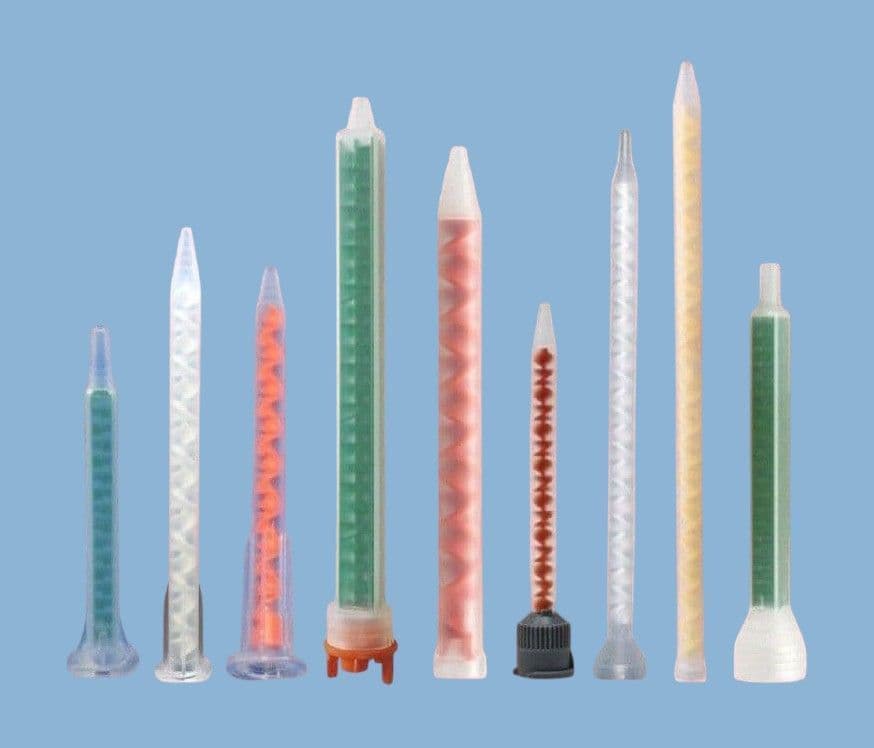

Static mix nozzle K System Adhesive Dispensing MKHX02-16S Sulzer Mixpac Medmix

Product Code: MKHX02-16S-10

Mix nozzle, 2.5mm ID, 16 Element, Length: 59.7mm, Volume: 0.27ml, 10:1 ratio. Tapered Outlet

Small Shot Mixer Nozzles for Two-Component Adhesives

The K system dual syringes are ideal for one shot or small volume dispensing of fully mixed materials.

This part code is for the static mixer nozzle used with the 4:1 and 10:1 ratio sets only. Light grey cap. Natural body with orange mix elements.

16 mix elements - 2.5mm ID. Overall nozzle length 59.7mm. Volume of retained material is 0.27ml. Tapered out for higher levels of precision. Supplied in sealed packs with labels and batch codes.

Specifications:

Part ID: 114257 (MKHX02-16S)
Material: Polypropylene
Colour: Natural Body, Grey Cap, Orange Elements
Length: 59.7mm
ID: 2.5mm
Elements: 16
Volume: 0.27ml
Maximum Pressure: 100 PSI
Ratio: 4:1, 10:1 Only
Details: Industrial Grade, Silicone Free
Commodity Code: 39269097
Brand: Sulzer Mixpac Medmix

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
