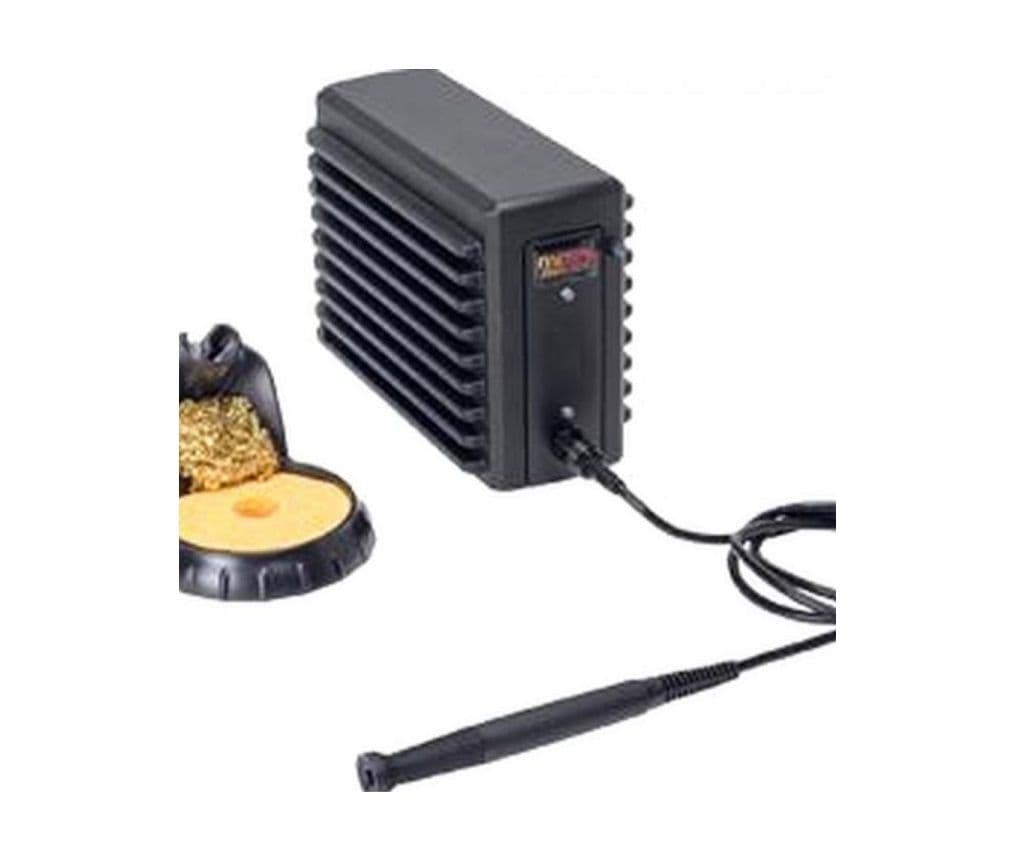

The MFR-1100 Single Output Series is highly versatile in that it can be used with either a soldering tip, cartridge or tweezers and offers a choice of four hand-pieces. The MFR-1160 comes with a Cartridge Hand-piece especially designed for Metcal SSC cartridges. This system will allow users of the Metcal SP200 Soldering System to continue to use their Metcal SSC cartridges.

Technical Specification
Power Supply:
Ambient Operating Temperature:    10 - 40°C (50°F - 104°F)
Maximum Enclosure Temperature:    55°C (131°F)
Input Line Voltage:        100 - 240 VAC
Input Line Frequency:        50/60 Hz grounded circuit
Power Consumption:        65 Watts maximum
Output Power:            60 Watts maximum
Output Frequency:        450 KHz
Power Cord:            (3-wire) 183 cm 18/3 SJT
Dimensions (approx.) W x D x H:    90mm (3.5”) x 200mm (8”) x 152.5mm (6”)
Weight:                2.3kg (5.05 lbs)
Surface Resistivity:        105-109 Ohms
Certification / Marking:    cTUVus, CE
Hand-piece Cable Length:    L=122cm (48"), burn resistant, ESD safe

Handle and Workstand:
Tip-to-Ground Potential:    < 2 mV RMS
Tip-to-Ground Resistance:    < 2 ohms
Idle Temperature Repeatability:    +/- 1.1°C (2°F) in still air
Handle Cord Assembly Length:    122cm - burn proof, ESD safe
Connector:             8-pin circular DIN
Workstand W x D x H:        100mm x 200mm x 100mm (4" x 8" x 4")
Workstand Weight:        0.69 kg (1.51 lbs)
