5623‑1215 - Complete Pneumatic‑Assist Dispensing System for Low–Medium Viscosity Fluids

Precision Hand‑Lever Valve System with 500g Pressure Pot

The 5623‑1215 dispensing system is a compact, cost‑effective solution for applying low to medium viscosity fluids with exceptional accuracy and control. It combines the TS5623HU hand‑held diaphragm valve with a 500g pressure pot, allowing operators to dispense materials directly from the original adhesive bottle without pouring, reducing mess, waste and operator exposure.

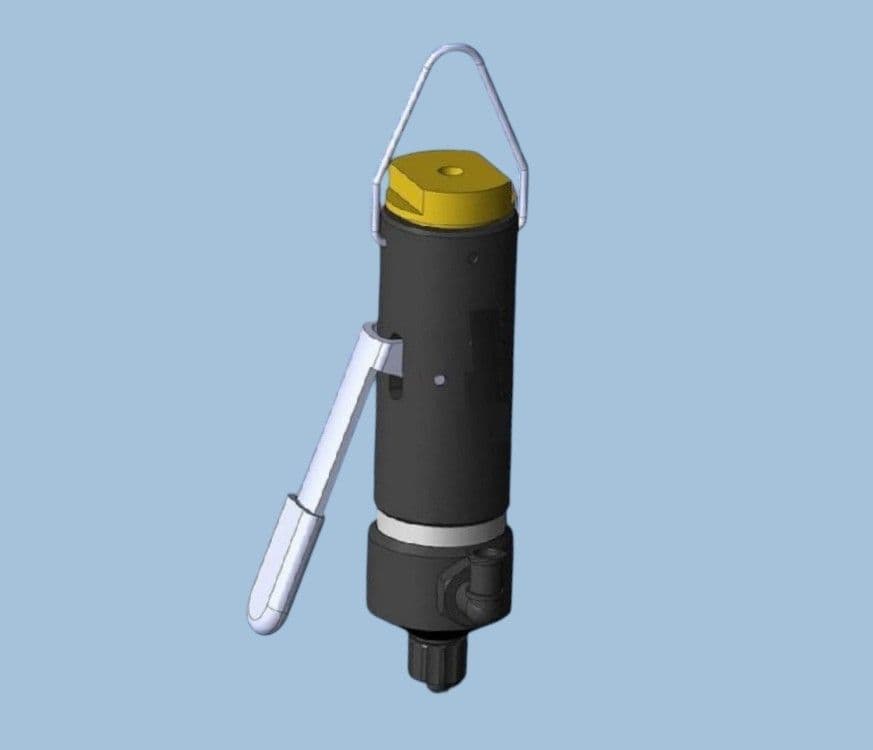

The TS5623HU valve provides smooth, continuous micro‑shot or bead application. Its gentle hand lever opens the diaphragm to allow fluid flow; releasing the lever instantly closes the valve, stopping the material cleanly with no drips. Flow rate can be increased or reduced using the adjustable stroke screw.

This manual valve does not require a timed pneumatic dispenser - control is entirely by lever action. The pressure pot features a 0–60 PSI adjustable regulator to set the ideal feed pressure for each fluid type.

Key Features

• Complete manual dispensing system for low–medium viscosity fluids

• TS5623HU diaphragm valve for precise micro‑shots and continuous beads

• Hand‑lever control - no timed dispenser required

• Adjustable stroke screw for fine flow control

• 500g pressure pot accepts adhesive bottles directly (no pouring)

• 0–60 PSI regulator for controlled feed pressure

• Includes clear & black fluid lines, tip adapter and sealing cap

• Suitable for UV cure adhesives (black tubing provided)

• Runs from any small compressor

Suitable Fluids

Ideal for dispensing:

• Cyanoacrylate adhesives (CA)

• Solvents

• Primers & activators

• Inks & paints

• UV‑curable adhesives

• Other low–medium viscosity liquids

Not suitable for two‑part epoxies or thick pastes.

System Components Included

• TS5623HU hand‑held diaphragm valve

• 500g pressure pot with 0–60 PSI regulator

• Clear and black fluid lines

• Fluid inlet fitting

• Tip adapter

• End‑cap for sealing valve after use

Technical Specifications

• Part ID: 5623‑1215

• Tank Capacity: Up to 500g bottle

• Time Range: Manual control

• Cycle Rate: Manual control

• Minimum Shot Size: Manual control

• Viscosity Range: 1–50,000 CPS

• Flow Rate: Up to 7250 ml/min (water)

• Warranty: 1 Year

About Adhesive Dispensing Ltd

Adhesive Dispensing Ltd provides a wide range of precision dispensing equipment for almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies. Our systems are engineered for accuracy, reliability and long‑term industrial performance.
