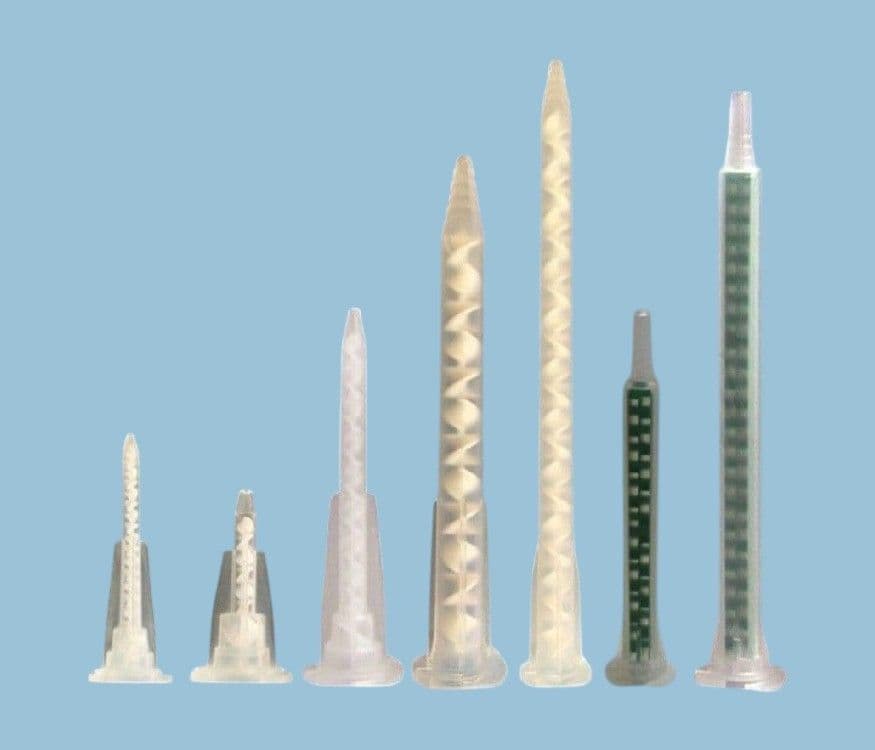

A test kit of A-System series static mixer nozzles for use with the 50ml, 75ml and 100ml 1:1/2:1 ratio 2K cartridges. These are bayonet mixers suitable for secure attachment to the cartridge leak free.
This kit includes 5 of each nozzle (total of 75 nozzles) -
- MAH 03-07S Mixer - 3mm ID x 7 Element White Helical Tapered Outlet
- MAH 03-13S Mixer - 3mm ID x 13 Element White Helical Tapered Outlet
- MAH 03-17S Mixer - 3mm ID x 17 Element White Helical Tapered Outlet
- MAH 04-13S Mixer - 4mm ID x 13 Element White Helical Tapered Outlet
- MAH 04-17S Mixer - 4mm ID x 17 Element White Helical Tapered Outlet
- MAH 5.4-07S Mixer - 5.4mm ID x 7 Element White Helical Tapered Outlet
- MAH 5.4-13S Mixer - 5.4mm ID x 13 Element White Helical Stepped Outlet
- MAH 5.4-17L Mixer - 5.4mm ID x 17 Element White Helical Luer Outlet
- MAH 5.4-17S Mixer - 5.4mm ID x 17 Element White Helical Stepped Outlet
- MAH 6.3-12S Mixer - 6.3mm ID x 12 Element White Helical Stepped Outlet
- MAH 6.3-17S Mixer - 6.3mm ID x 17 Element White Helical Stepped Outlet
- MAH 6.3-21L Mixer - 6.3mm ID x 21 Element White Helical Luer Outlet
- MAH 6.3-21S Mixer - 6.3mm ID x 21 Element White Helical Stepped Outlet
- ADMF6-16 Mixer - 6.3mm ID x 16 Element Green Helical Luer Outlet
- ADMF6-24 Mixer - 6.3mm ID x 24 Element Green Helical Luer Outlet
Specifications for each mixer including length and volume can be found on our website or please contact us for data sheets.
All parts are industrial grade safe for use with manual, pneumatic or electric dispensing equipment. All parts are silicone-free materials supplied in sealed packs with labels and batch codes. All items ship direct from stock.
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
